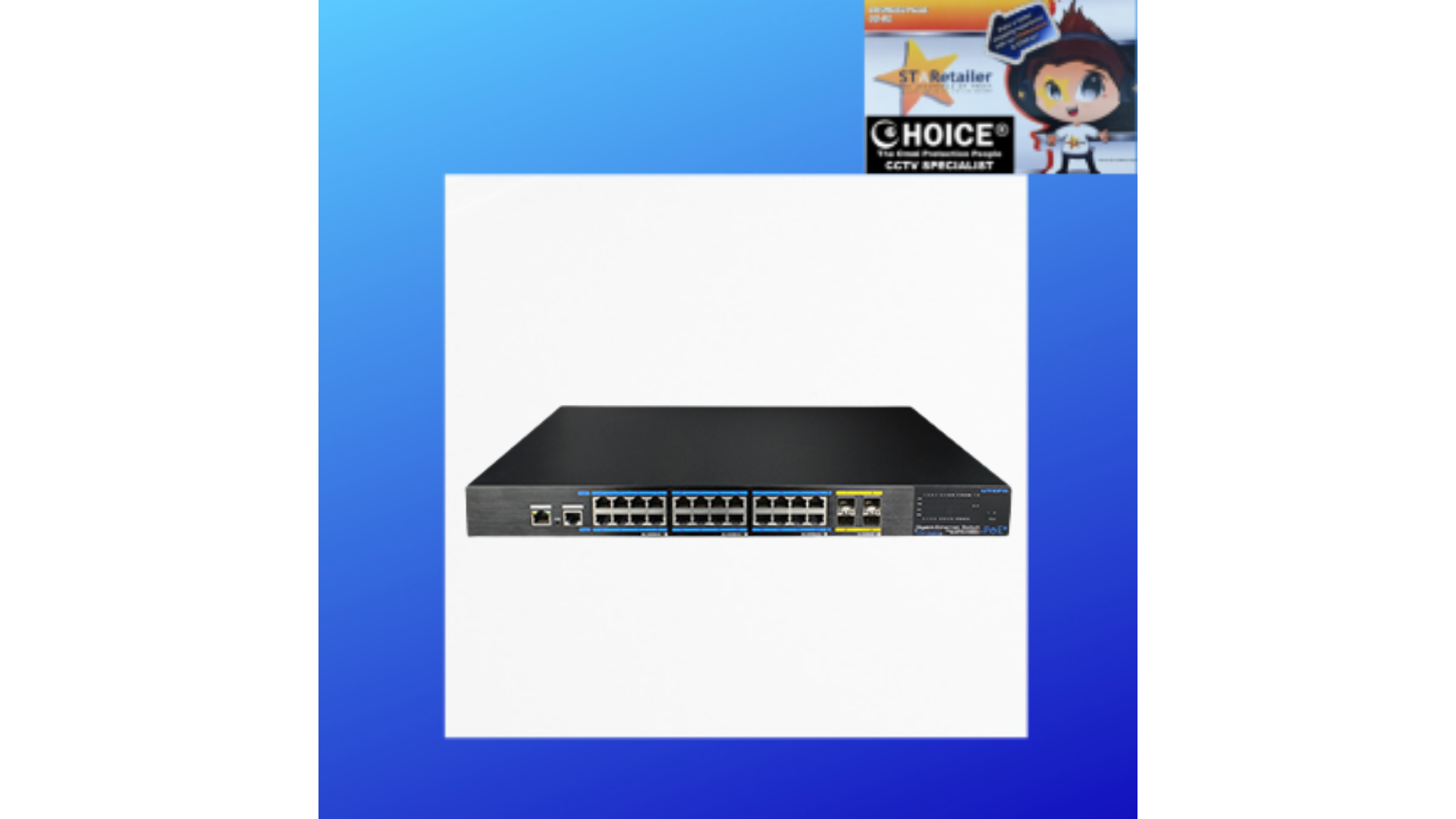

24 Ports PoE Gigabit L3 Managed Ethernet SwitchUTP7624GE-POE-L3
The 24 ports PoE Gigabit managed Ethernet switch(abbreviated to 24P switch), which provide 24* PoE Gigabit downlink Ethernet ports , 4* 10Gigabit uplink SFP ports. The Products support IEEE 802.3 af/at, support Web layer-3 network management and PoE management. Products are widely used in security surveillance, network engineering projects and so on. The 16 ports PoE Gigabit managed Ethernet switch(abbreviated to 16P switch), is similar to 24P switch;only the downlink ports quantity is 16,and the power watts is 320W while the 24P switch’s is 450W.
Model | UTP7624GE-POE-L3 |
Downstream Ports | 24* 10/100/1000Base-T PoE |
Uplink Ports | 4*10G Base-X SFP optical ports (support 1000Base-X by web setting) |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 128Gbps |
Packet Forwarding Rate | 96Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 12M |
MAC Address Table | 16K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+), 3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 390 watts max |
Surge Immunity | 6KV Execute: IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute: IEC61000-4-2 | |
Input Voltage | 100~240V AC, 50/60Hz |
Operating Temperature | -10-50℃ |
Storage temperature | -40-85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension (L×W×H) | 442mm×305mm×44.5mm |
Weight | 4.35kg |
Certification | CE, FCC, ROHS |
Software Features | |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support Jumbo Frame | |
Support port name modification | |
VLAN | Support of 4K VLAN |
support 802.1Q VLAN protocol | |
support QINQ | |
support GVRP dynamic VLAN register | |
Support VLAN based on port\protocol\MAC | |
Quality of Service | Support COS classification base on 802.1p |
support QoS base on DSCP | |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
support MLD-snooping | |
POE management | Support Total Power Control |
Support PoE On Off | |
Support single-port 30W output，Output port and priority | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support STP \ RSTP \MSTP，Fast-Ring | |
Support 5 groups of link aggregation | |
support LLDP ,Smart-Link ,DLDP | |
Support 802.1X | |
ACL | support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number |
support time-range management | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot | |
L3 Management | support IPV4 static route setup |
support RIP V1/2 on IPV4 | |
support OSPF V1/V2 | |
Support static ARP Add,delete,burn-in time sutup/check | |
Support static NDAdd,delete,burn-in time sutup/check | |
Support VRRP V1/2/3 virtual redundant route protocol | |
Support group-broadcasting PIM,IGMP V1/V2/V3,MLD(IPV4) | |
Support DHCP client,server | |
Support relay repeater,DHCP snooping | |
Support duplex transfer check mechanism | |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Ports PoE Gigabit L3 Managed Ethernet SwitchUTP7624GE-POE-L3
Technical Details:
| Brand: | UTEPO |
|---|---|
| Model number: | UTP7624-POE-L3 |
| Part Number: | UTP7624GE-POE-L3 |
| Seller SKU: | CC81RTUTP7624GE-POE-L3 |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Mar 19, 2022 |
