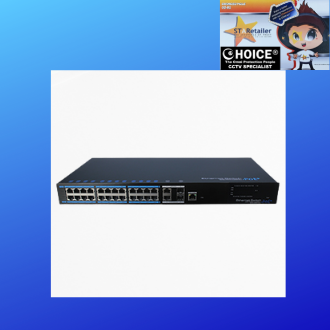

24 Ports PoE Managed Ethernet Switch UTP7224E-POE-L2
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572enquiry@choicecycle.com.sg
Frequently bought together:
24 Ports PoE Managed Ethernet SwitchUTP7224E-POE-L2
The 24-port managed PoE Ethernet switch,provides 24*100Mbps downlink PoE Ethernet ports with IEEE802.3af/at supporting and 2*1000Mpbs uplink optical ports and 2*1000Mpbs uplink Ethernet ports. The switch support Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.
Model | UTP7224E-POE-L2 |
Downlink Ports | 24* 10/100Base-TX (PoE) |
Uplink Ports | 2*1000Base-X SFP Port and 2*10/100/1000Base-T |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 12.8Gbps |
Packet Forwarding Rate | 9.52Mpps |
Forwarding Modes | Store and Forward |
MAC Address Table | 16K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+), 3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 390 watts max |
Surge Immunity | 6KV Execute:IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute:IEC61000-4-2 | |
Power Supply | 100~240V AC, 50/60Hz |
Power Consumption | ＜450W (Including PoE) |
Operating Temperature | -10℃~50℃ |
Storage temperature | -40℃~85℃ |
Operating Humidity | 5%-95% (Non-condensing) |
Dimension（L×W×H） | 442mm×255mm×44.5mm |
Weight | 3.73kg |
Certification | CE, FCC, ROHS |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support port name modification | |
VLAN | Support of 4K VLAN |
supports 802.1Q VLAN protocol | |
Support VLAN based on port | |
Quality of Service | Support QoS Congestion Management |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
POE management | Support Total Power Control |
Support PoE On Off | |
Support single-port 30W output，Output port and priority | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support RSTP | |
Support 5 groups of link aggregation | |
Support 802.1X | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Ports PoE Managed Ethernet SwitchUTP7224E-POE-L2
Technical Details:
| Brand: | Utepo |
|---|---|
| Seller SKU: | CC81RTUTP7224E-POE-L2 |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Mar 18, 2022 |
24 Ports PoE Managed Ethernet SwitchUTP7224E-POE-L2
The 24-port managed PoE Ethernet switch,provides 24*100Mbps downlink PoE Ethernet ports with IEEE802.3af/at supporting and 2*1000Mpbs uplink optical ports and 2*1000Mpbs uplink Ethernet ports. The switch support Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.
Model | UTP7224E-POE-L2 |
Downlink Ports | 24* 10/100Base-TX (PoE) |
Uplink Ports | 2*1000Base-X SFP Port and 2*10/100/1000Base-T |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q, IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 12.8Gbps |
Packet Forwarding Rate | 9.52Mpps |
Forwarding Modes | Store and Forward |
MAC Address Table | 16K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+), 3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 390 watts max |
Surge Immunity | 6KV Execute:IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute:IEC61000-4-2 | |
Power Supply | 100~240V AC, 50/60Hz |
Power Consumption | ＜450W (Including PoE) |
Operating Temperature | -10℃~50℃ |
Storage temperature | -40℃~85℃ |
Operating Humidity | 5%-95% (Non-condensing) |
Dimension（L×W×H） | 442mm×255mm×44.5mm |
Weight | 3.73kg |
Certification | CE, FCC, ROHS |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support port name modification | |
VLAN | Support of 4K VLAN |
supports 802.1Q VLAN protocol | |
Support VLAN based on port | |
Quality of Service | Support QoS Congestion Management |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
POE management | Support Total Power Control |
Support PoE On Off | |
Support single-port 30W output，Output port and priority | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support RSTP | |
Support 5 groups of link aggregation | |
Support 802.1X | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Ports PoE Managed Ethernet SwitchUTP7224E-POE-L2
Return and Refund Policy:
Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
