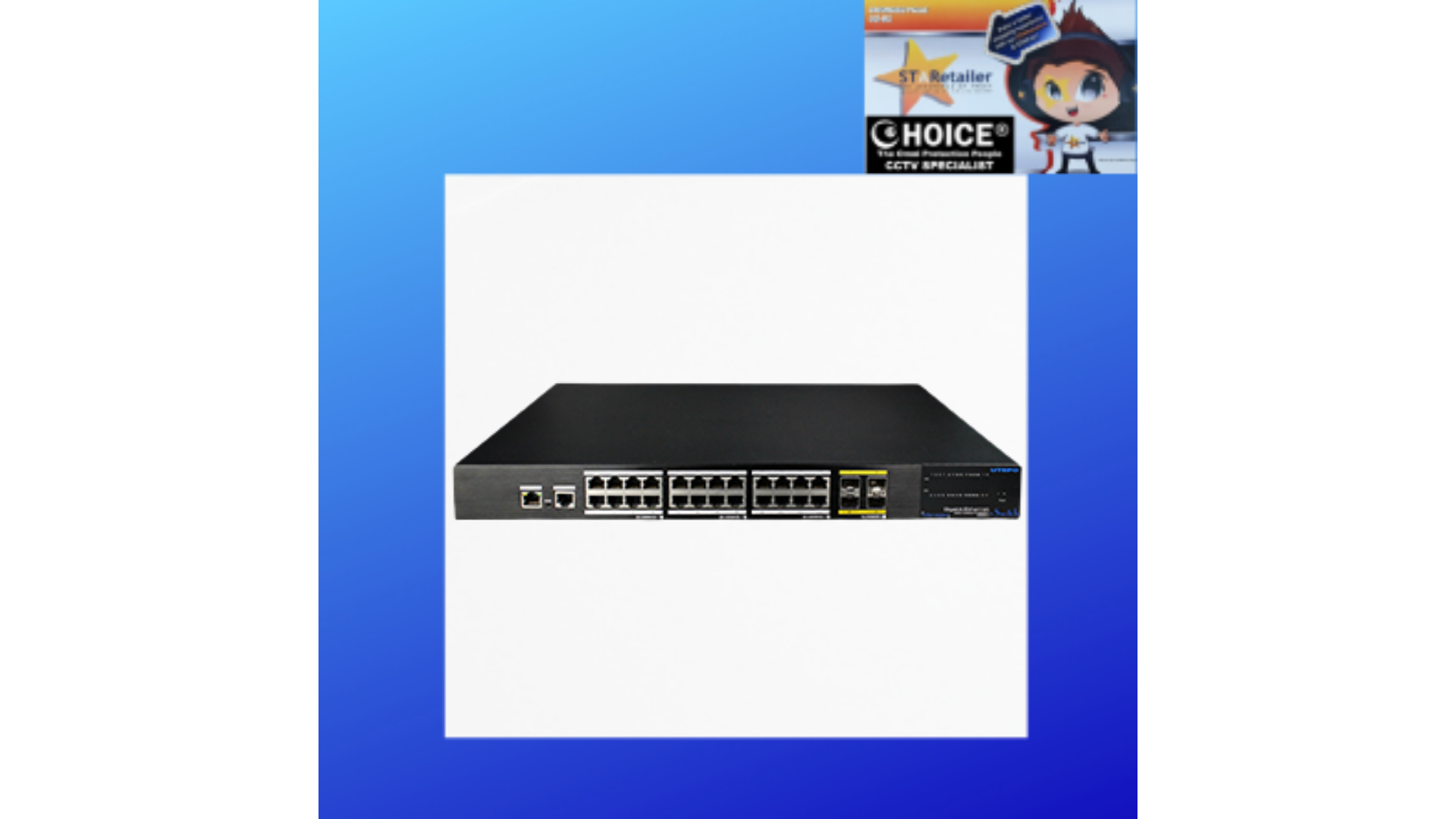

24 Gigabit Ports & 4*10Gigabit Managed Ethernet SwitchUTP7624GE-L3
The 24 Gigabit ports managed Ethernet switch, which provide 24* Gigabit downlink Ethernet ports ,4* 10Gigabit uplink SFP ports. The Products support IEEE 802.3 af/at,support Web layer-3 network management and. Products are widely used insecurity surveillance, network engineering projects and so on.
Model | UTP7624GE-L3 |
Downstream Ports | 24* 10/100/1000Base-T RJ45 |
Uplink Ports | 4*1000/10GBase-X SFP+ |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 128Gbps |
Packet Forwarding Rate | 96Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 12M |
MAC Address Table | 16K |
Surge Immunity | 6KV Execute: IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute: IEC61000-4-2 | |
Input Voltage | 100~240VAC 50/60Hz dual power module(2*12V60W) |
Power Consumption | ＜30W |
Operating Temperature | -10-50℃ |
Storage temperature | -40-85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension（L×W×H） | 442mm×320mm×44.5mm |
Weight | 4.35kg |
Certification | CE, FCC, ROHS |
Software Features | |
Port Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support Jumbo Frame | |
Support port name modification | |
VLAN | Support of 4K VLAN |
Support 802.1Q VLAN protocol | |
Support QINQ | |
Support GVRP | |
Support VLAN based on port\protocol\MAC | |
Quality of Service | Support COS classification base on 802.1p |
Support QoS base on DSCP | |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multicast Management | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
Support MLD-snooping | |
Security Features | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support STP \ RSTP \MSTP，Fast-Ring | |
Support 5 groups of link aggregation | |
Support LLDP ,Smart-Link ,DLDP | |
Support 802.1X | |
ACL | Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number |
Support time-range management | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot | |
L3 Management | Support IPV4 static route setup |
Support RIP V1/2 on IPV4 | |
Support OSPF V1/V2 | |
Support static ARP Add,delete,burn-in time sutup/check | |
Support static NDAdd,delete,burn-in time sutup/check | |
Support VRRP V1/2/3 virtual redundant route protocol | |
Support group-broadcasting PIM,IGMP V1/V2/V3,MLD(IPV4) | |
Support DHCP client,server | |
Support relay repeater,DHCP snooping | |
Support duplex transfer check mechanism | |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Gigabit Ports & 4*10Gigabit Managed Ethernet SwitchUTP7624GE-L3
Technical Details:
| Brand: | Utepo |
|---|---|
| Seller SKU: | CC81RTUTP7624GE-L3 |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Mar 27, 2022 |
