Frequently bought together:

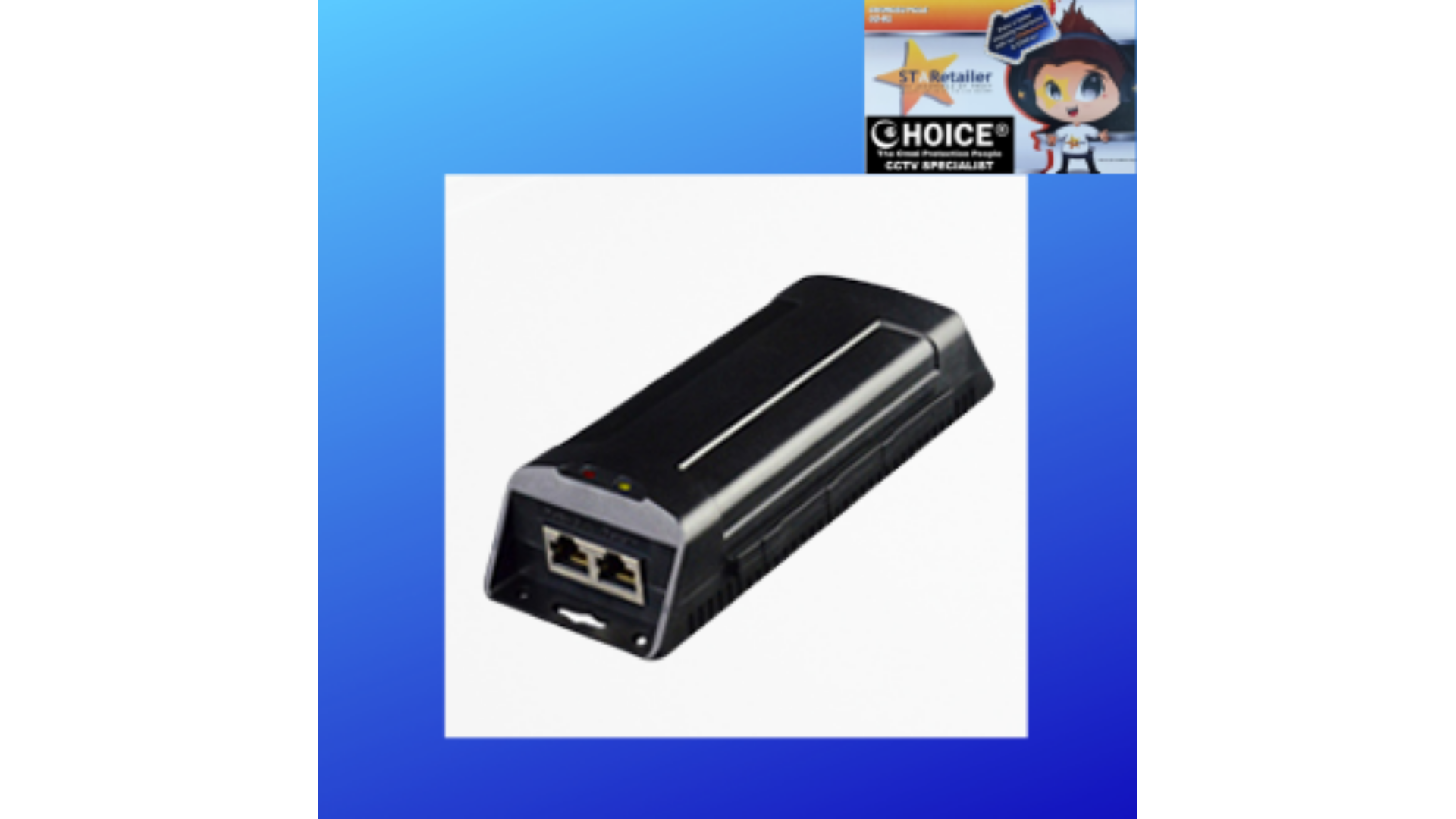

60W Gigabit PoE Injector UTP7201GE-PSE60
This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.
Item | Description | |
Interface | Input Voltage | AC100V~AC240V |
Data Input | 1×RJ45 | |
PoE output | 1×RJ45 | |
PoE | PoE Power Method | End-span / Mid-span |
PoE Power Output | DC 54V/60 watts | |
Output Ripple | ＜5% | |
Power Pin Assignment | Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+) | |
Ethernet Port | Communication Port | 1×RJ45 Input |
Transmission Rate | 10/100/1000Mbps | |
Transmission Medium | Cat5/5e/6 Cable | |
Distance | 100m (Max.) | |
Status | Power LED | 1 (Red) |
PoE LED | 1 (Orange) | |
Protection | Surge | PoE Power: 1kV(Differential Mode), 2kV(Common Mode)1.2/50us，8/20us |
Ethernet: 2kV(Differential Mode), 6kV(Common Mode)10/7000us | ||
ESD | 1a Contact Discharge Level 3 | |
1b Air Discharge Level 3 | ||
Per: IEC61000-4-2 | ||
Environment | Working Temperature | -10℃~55℃ |
Storage Temperature | -40℃~85℃ | |
Humidity(Non-condensing) | 0~90% | |
Mechanics | Dimension(LxWxH) | 160mm×64mm×60mm |
Material | ABS Plastics | |
Color | Black | |
Weight | 200g | |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)
60W Gigabit PoE Injector UTP7201GE-PSE60
Technical Details:
| Seller SKU: | CC81RTUTP7201GE-PSE60 |
|---|---|
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Apr 19, 2022 |
60W Gigabit PoE Injector UTP7201GE-PSE60
This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC input power port. It supports end-span PoE and the output power consumption is up to 60W; It features:10/100M/1000Mbps network,100m transmission distance,6KV lightning protection, industrial-level chip, and patent alert. it's an excellent choice for power supply and network transmission on PTZ cameras, all-in-one PC, digital display system.
Item | Description | |
Interface | Input Voltage | AC100V~AC240V |
Data Input | 1×RJ45 | |
PoE output | 1×RJ45 | |
PoE | PoE Power Method | End-span / Mid-span |
PoE Power Output | DC 54V/60 watts | |
Output Ripple | ＜5% | |
Power Pin Assignment | Pair1:1/2(+),3/6(-) Pair2:4/5(-),7/8(+) | |
Ethernet Port | Communication Port | 1×RJ45 Input |
Transmission Rate | 10/100/1000Mbps | |
Transmission Medium | Cat5/5e/6 Cable | |
Distance | 100m (Max.) | |
Status | Power LED | 1 (Red) |
PoE LED | 1 (Orange) | |
Protection | Surge | PoE Power: 1kV(Differential Mode), 2kV(Common Mode)1.2/50us，8/20us |
Ethernet: 2kV(Differential Mode), 6kV(Common Mode)10/7000us | ||
ESD | 1a Contact Discharge Level 3 | |
1b Air Discharge Level 3 | ||
Per: IEC61000-4-2 | ||
Environment | Working Temperature | -10℃~55℃ |
Storage Temperature | -40℃~85℃ | |
Humidity(Non-condensing) | 0~90% | |
Mechanics | Dimension(LxWxH) | 160mm×64mm×60mm |
Material | ABS Plastics | |
Color | Black | |
Weight | 200g | |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)
60W Gigabit PoE Injector UTP7201GE-PSE60
Return and Refund Policy:
Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
