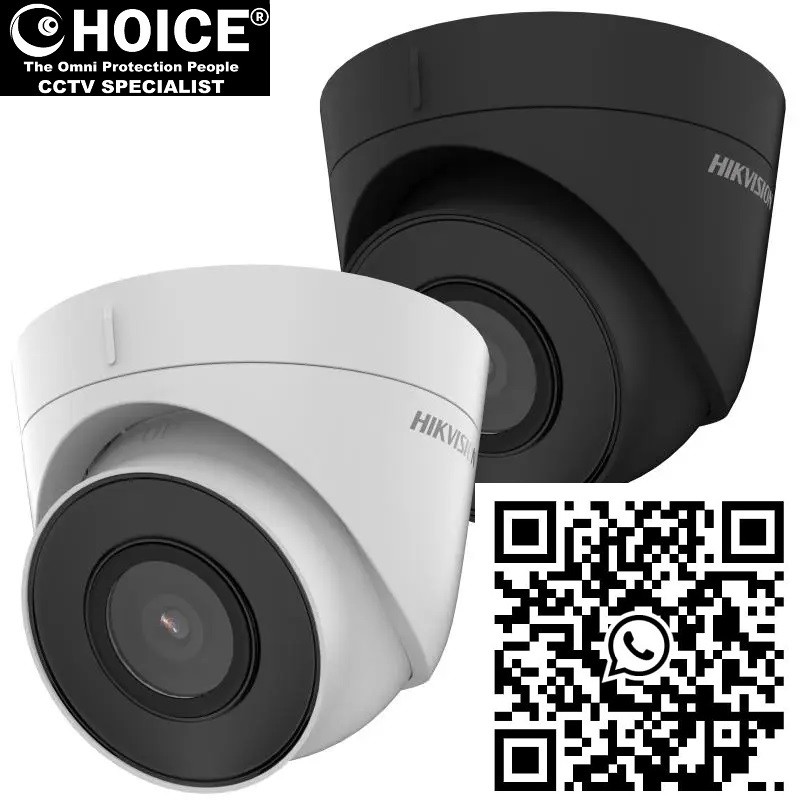

CCTV Camera Hikvision DS-2CD1343G2-IUF 4MP AUDIO DOME $68.00
PWP with Hikvision Network Video Recorder NVR and Hard Disk.

Retail Price $165.00 each.

1st Camera $68.00, 2 Camera $88.00, 3~8 Camera $98.00 each.  Download Specification

4 MP IP POE Dome Network Camera

• High quality imaging with 4 MP resolution

• Support Human and Vehicle Detection

• Water and dust resistant (IP67)

• Clear imaging even with strong back lighting due to 120 dB WDR

• Efficient H.265+ compression technology

• EXIR 2.0: advanced infrared technology with long IR range

• Support on-board storage up to 256GB (SD card slot) (Optional)

• Built-in microphone for real-time audio security

• CCTV Camera Hikvision DS-2CD1343G2-IUF 4MP AUDIO DOME $68.00
  PWP with Hikvision Network Video Recorder NVR and Hard Disk.

• HIKVISION SINGAPORE OFFICIAL PLANTINUM PARTNER
  Supply and Maintenance HIKVISION CCTV IP Cameras, NVR, Turbo HD TVI Cameras, DVR, PTZ Cameras,
  Access Control System, Video Intercom.
  Sim Lim Square 02-81 10am-7pm Daily.
  Whatsapp Enquiry Project +65 98534404, Technical Support +65 81120788, Site Visit Maintenance +65 81985572.




  SGCCTV Project Reference https://sgcctv.biz/

  SGCCTV Maintenance  https://choicecycle.com.sg/

  SGCCTV Facebook https://www.facebook.com/sgcctv.com.sg

  SGCCTV Twitter https://twitter.com/choicecycle1

  SGCCTV Google Map https://goo.gl/maps/yoUGzrvqgSP5WcXD9  https://goo.gl/maps/bihTFoNeqCMsV2MJ8

  SGCCTV Ecommerce https://sgcctv.com.sg/




  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°

    4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.0

  • DORI
  • DORI

    2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m

    4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm

  • Video
  • Main Stream

    50 Hz:

    20 fps (2560 × 1440)

    25 fps (1920 × 1080, 1280 × 720)

    60 Hz:

    20 fps (2560 × 1440)

    24 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Region Of Interest (ROI)1 fixed region for main stream

  • Audio
  • Audio Type-U: Mono sound
  • Environment Noise Filtering-U: Yes
  • Audio Sampling Rate-U: 8 kHz/16 kHz
  • Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • User/Host

    Up to 32 users

    3 levels: administrator, operator, and user

  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask4 programmable polygon privacy masks

  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • Built-In Microphone-U: Yes
  • Reset Key-F: Yes

  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

  • MaterialMetal & Plastic
  • DimensionØ110 mm × 85.3 mm (Ø4.3" × 3.4")
  • Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight-I: Approx. 330 g (0.7 lb.); -IUF: Approx. 340 g (0.7 lb.)
  • With Package Weight-I: Approx. 550 g (1.2 lb.); -IUF: Approx. 560 g (1.2 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat, anti-banding, mirror, password protection, password reset via email

  • Approval
  • EMC

    FCC: 47 CFR Part 15, Subpart B

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

    RCM: AS/NZS CISPR 32: 2015

    IC: ICES-003: Issue 7

    KC: KN32: 2015, KN35: 2015

  • Safety

    UL: UL 62368-1

    CB: IEC 62368-1: 2014+A11

    CE-LVD: EN 62368-1: 2014/A11: 2017

    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

  • Environment

    CE-RoHS: 2011/65/EU

    WEEE: 2012/19/EU

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
  • CCTV Camera Hikvision DS-2CD1343G2-IUF 4MP AUDIO DOME $68.00 PWP with Hikvision Network Video Recorder NVR and Hard Disk.

  •

Technical Details:
