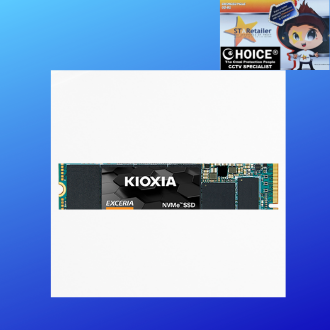

Kioxia EXCERIA M.2 1000 GB PCI Express NVMemLRC10Z001TG8

CHOICECYCLE

Kioxia EXCERIA M.2 1000 GB PCI Express NVMemLRC10Z001TG8

$196.50

Availability: In Stock

Condition: New

Add to Wishlist

Shipping:

to Ohio

Quantity:

10 in stock

Total:

Will be calculated after you select all properties

Buy Now Enquiry

Sold by Visit Store

CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404

8198 5572
enquiry@choicecycle.com.sg

Add to Cart

Frequently bought together:

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8

Upgrading from a hard drive or SATA SSD should be easy and affordable and that's where EXCERIA SSDs come in. KIOXIA EXCERIA SSD Series is built to boost your mobile or PC experience and deliver balanced performance and value that will transform your system. Leveraging BiCS FLASH 3D flash memory, this new mainstream-class SSD series offers up to 1TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

Application Peformance Maximized
KIOXIA EXCERIA SSD series redefine mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications.

Small and Compact for an Easy Upgrade
Featuring a slim and light M.2 2280 form factor, the EXCERIA SSD series plugs directly into thin notebooks' motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

NVMe Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe 1.3c technology, EXCERIA SSDs reduce latency in your system's I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

Physical

Capacity
1,000GB
Form Factor
M.2 Type 2280-S2-M
Interface
PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory Type
BiCS FLASH™ TLC
Interface Maximum Speed
32 GT/s (PCIe® Gen3x4L)
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.23 mm
Interface Command
NVM Express™ Revision 1.3c command set
Weight
1000GB: 6.9 g (typ.)

Performance

Max Sequential Read Speed(1)
1,700 MB/s
Max Sequential Write Speed(1)
1,000GB: 1,600 MB/s
Max Random Read Speed(2)
1,000GB: 350,000 IOPS
Max Random Write Speed(2)
1,000GB: 400,000 IOPS
Endurance: TBW (Total Bytes Written)(3)
1,000GB: 400 TB
MTTF
1.5 million hours

Environmental

Operating Temperature
0 °C (Ta) to 85 °C (Tc)
Storage Temperature
-40 °C to 85 °C
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration
196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage
3.3 V ±5 %
Power Consumption
PS3: 50mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active)
1,000GB: 5.3 W (typ.)

Compatibility

PCI Express
Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops

Additional Features

Services and Support
5-year manufacturer's warranty(4)
Performance Optimization
TRIM, Idle Time Garbage Collection

Ordering Information

1,000GB
PN: LRC10Z001TG8
EAN: 4582563851924

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8
