About this item

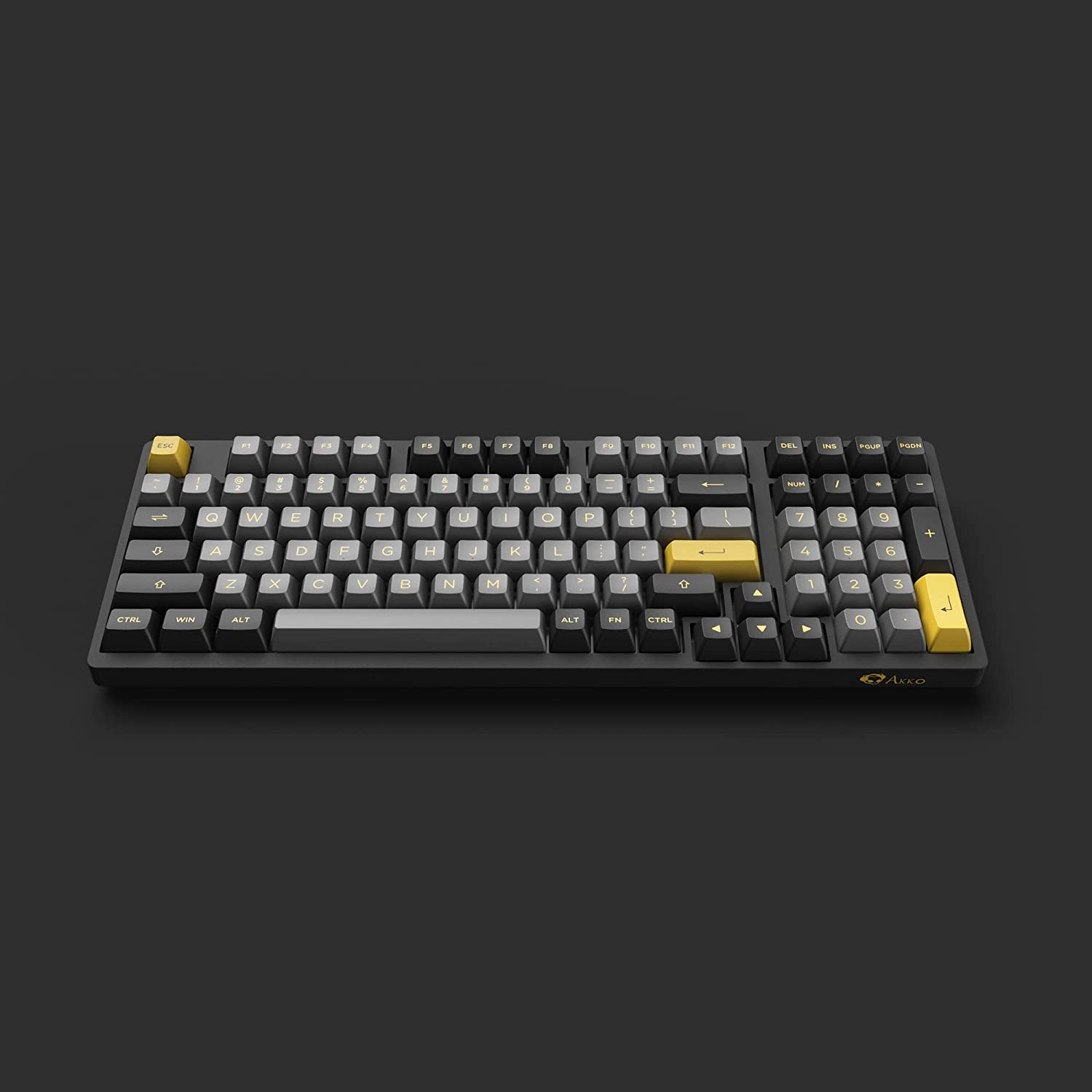

• 【90% Hot-Swappable Keyboard】A 90% layout keyboard is probably a perfect size for both gaming and working. While being space saving for a mouse, the ultimate compact keyboard retains the numpad and arrow keys. Moreover, the keyboard is 5-pin hot-swappable. It can be changed by other mechanical switches for DIY purpose
• 【2.4Ghz Wireless/Bluetooth 5.0/Wired 3 Modes Connectivity】Equipped with a 3000mAh battery, this keyboard supports wireless and wired connections. By the wireless option, either bluetooth or 2.4GHz can be chosen, and the polling rate can be up to 1000hz with 2.4GHz. By the wired mode, macro can be programmed to fit your typing habits better. The modes can be easily switched by Fn+E/R/T(Bluetooth) / Y(2.4GHz) / U(USB Wired)
• 【The latest Black & Gold Color Scheme】The mysterious black color seems to match with any other colors. Here we are, the black & gold scheme comes out to appeal your attention! With the simple background of dark black and decorated by the golden legends, your keyboard will be leading the new fashionable trend
• 【PBT Keycaps in ASA Profile & N-Key Rollover】For this model we adopts PBT material, made through a process of double-shot technique, a complicated manufacturing process where two separate plastics are injection molded to make the keycaps. Details and techniques enable this set to be an ideal and the best choice when you are looking for a replacement set. The ASA profile is built in high profile, sculpted. With this ergonomic spirit, you can even rest your fingers on the keycaps freely
• 【Original AKKO CS Jelly Switches】The AKKO CS Jelly White switch is the Linear one, with a quiet sound and light weight of 35gf to be pressed - easily click. The AKKO CS Jelly Blue switch features a tactile feeling, with a lower trigger and middle weight of 40gf to be pressed - soft click. The AKKO CS Jelly Pink switch feels like heavy linear one, with quiet sound and the weight of 45gf to be pressed

  ---

  Product Description









  Bluetooth Setup Instruction

  1. Switch to Bluetooth Mode:

  1) When the keyboard remains unplugged, turn the back switch to ON. Then long press and hold FN+E/R/T to start pairing with Bluetooth devices. The keyboard will enter Bluetooth Pairing mode when the blue LEDs under E/R/T keys flash quickly.

  2) When the keyboard is plugged into computer through USB interface, it will enter Bluetooth mode automatically without pashing the back switch. You can directly long press and hold FN+E/R/T to enable Bluetooth pairing. The blue leds under E/R/T keys flash quickly so the keyboard will enter Bluetooth Pairing mode.

  2. Bluetooth Pairing:

  When you first try to search bluetooth devices, two groups names shall appear with AKKO 3098 BT3.0(Bluetooth3.0) and AKKO 3098-1(Bluetooth 5.0). Select a bluetooth group based on your preferences(Note: some devices can only search for the Bluetooth 5.0 group)

  3. Switch the Bluetooth Device:

  After 4 Bluetooth devices has been paired with the keyboard, press FN+E/R/T/Y for at least 3 seconds to quickly switch between them.

  4. Shut off the Keyboard:

  Turn the power off on the keyboard back panel which unused for power saving.

  If the keyboard remains unused forover 10 mins, it would go to sleep mode and you can active it by pressing any key.



  Specs

  Layout	98 Keys, with a numpad
  Built-in battery capacity	1800mAh
  Switch Type	Akko CS Radiant Red / Lavender Purple / Vintage White
  Connection	2.4Ghz Wireless/Bluetooth 5.0/Type-C Wired
  Hot-Swap	Support 3/5-pin switches

  RGB Light	SMD LED
  Compatibility	Windows/MAC
  NKRO	Yes
  Product dimension	382*134*40mm
  Product weight	1.1KG
