Specifications
Model name 24B1XH5
Panel 23.8" (IPS)
Pixel Pitch (mm) 0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm) 527.04 (H) × 296.46 (V)
Brightness (typical) 250 cd/m²
Contrast Ratio 1000:1 (Typical) 20 Million : 1
Response Time 8ms (GtG)
Viewing Angle 178° (H) / 178° (V) (CR > 10)
Color Gamut NTSC 87% (CIE1976) / sRGB 101% (CIE1931)
Color Accuracy -
Optimum Resolution 1920 × 1080 @ 75Hz – HDMI 1920 × 1080 @ 60Hz – VG
Display Colors 16.7 Million
Signal Input VGA, HDMI 1.4
HDCP Version HDMI: 1.4
USB Hub no
Power Supply 19VDC, 1.31A
Power Consumption (typical) 20W
Speakers no
Line in & Earphone Earphone
Wall-Mount 75mm × 75mm
Adjustable Stand Tilt: -3.5° ~ 21.5°
Product without Stand (mm) 320.7 (H) × 540.8 (W) × 37.1 (D)
Product with Stand (mm) 419.9 (H) × 540.8 (W) × 186.8 (D)
Product without Stand (kg) 2.38
Product with Stand (kg) 2.73
Cabinet Color Black
Regulatory Approvals BSMI / KC / KCC / e-Standby / RCM / MEPS / CE
* Design and specifications are subject to change without notice.

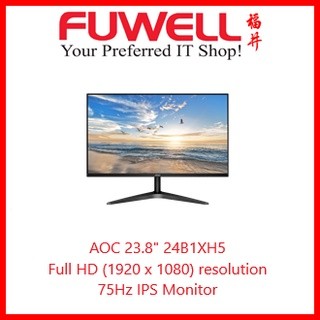

Brand: | AOC |
---|---|
Model number: | 24B1XH5 |
UPC: | 4717385945821 |
Seller SKU: | AOC 23.8" Monitor UPC: 4717385945821 Model number: 24B1XH5 |
Origin: | Singapore |
Minimum order quantity: | 1 |
Shipping weight: | 4500.00 g |
Date first listed on Sim Lim Square: | Dec 23, 2021 |
Specifications
Model name 24B1XH5
Panel 23.8" (IPS)
Pixel Pitch (mm) 0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm) 527.04 (H) × 296.46 (V)
Brightness (typical) 250 cd/m²
Contrast Ratio 1000:1 (Typical) 20 Million : 1
Response Time 8ms (GtG)
Viewing Angle 178° (H) / 178° (V) (CR > 10)
Color Gamut NTSC 87% (CIE1976) / sRGB 101% (CIE1931)
Color Accuracy -
Optimum Resolution 1920 × 1080 @ 75Hz – HDMI 1920 × 1080 @ 60Hz – VG
Display Colors 16.7 Million
Signal Input VGA, HDMI 1.4
HDCP Version HDMI: 1.4
USB Hub no
Power Supply 19VDC, 1.31A
Power Consumption (typical) 20W
Speakers no
Line in & Earphone Earphone
Wall-Mount 75mm × 75mm
Adjustable Stand Tilt: -3.5° ~ 21.5°
Product without Stand (mm) 320.7 (H) × 540.8 (W) × 37.1 (D)
Product with Stand (mm) 419.9 (H) × 540.8 (W) × 186.8 (D)
Product without Stand (kg) 2.38
Product with Stand (kg) 2.73
Cabinet Color Black
Regulatory Approvals BSMI / KC / KCC / e-Standby / RCM / MEPS / CE
* Design and specifications are subject to change without notice.
