About this item

• AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
• Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
• Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
• High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
• DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
• Industry-leading ROG audio: SupremeFX S1220 and ESS ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.

• ---

  From the manufacturer








  ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today's digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR

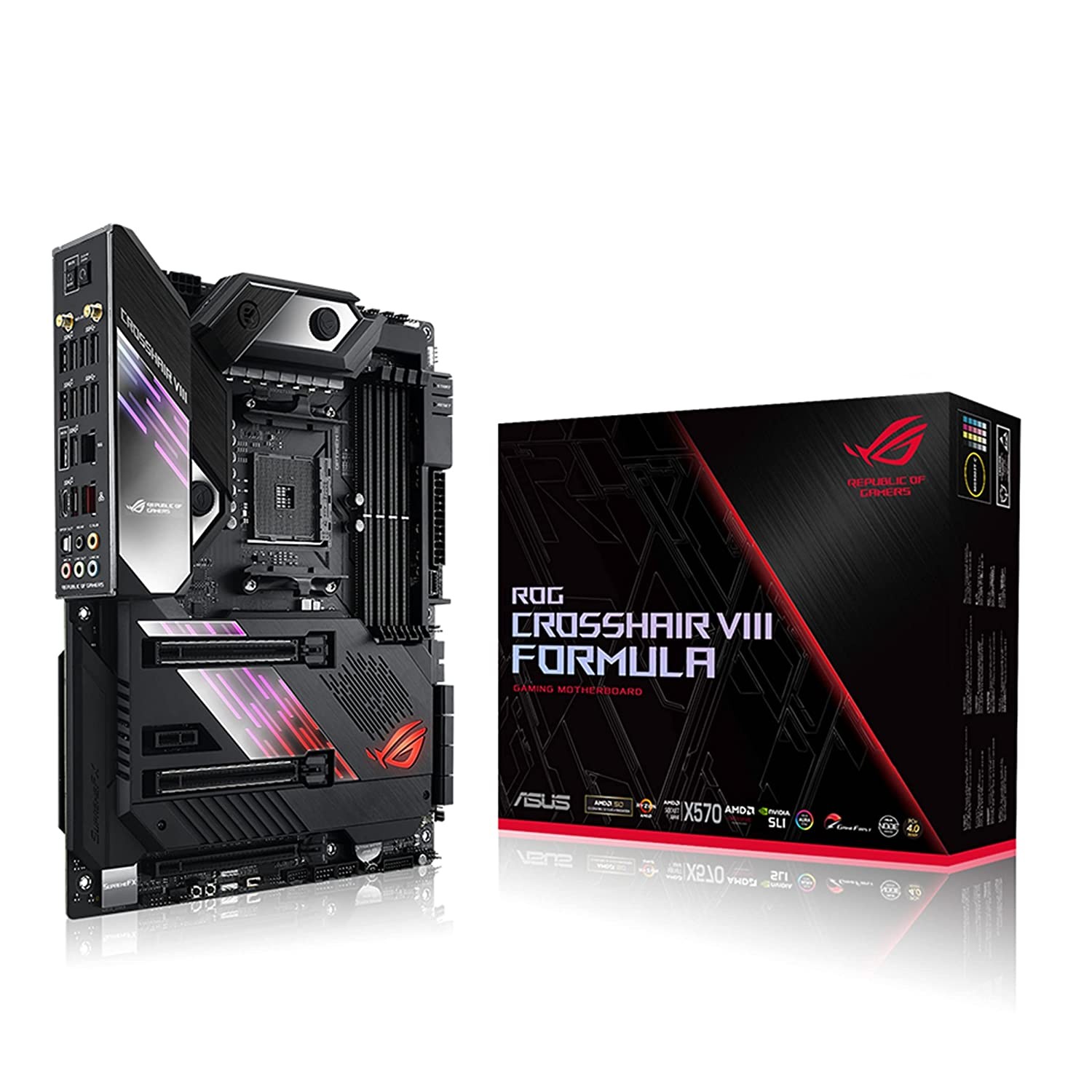

  ROG Crosshair VIII Formula

  AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 5 Gbps LAN, USB 3.2, SATA, M.2, ASUS NODE and Aura Sync RGB lighting

  • AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.
  • Comprehensive thermal design: Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
  • Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
  • On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.

  Read more

  CROSSCHILL EK III CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper, delivering up to 29.3°C-lower MOSFET temperatures on water, and the standard G1/4" threaded fittings mean CrossChill EK III easily fits existing setups — so you can enjoy efficient, quiet cooling with the minimum effort.	ACTIVE CHIPSET HEATSINK DESIGN PCle 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Formula features an actively cooled heatsink to prevent throttling during sustained transfers. CUSTOM DELTA SUPERFLO FAN AIR DUCT FINNED HEATSINK	POWER DESIGN THAT BUCKS TRENDS The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 16 strategically paired power stages, the Formula’s VRM is geared for any workload and all operating conditions. 8-PIN PROCOOL II POWER CONNECTORS POWIRSTAGE MOSFETS MICROFINE ALLOY CHOKES 10K JAPANESE-MADE BLACK METALLIC CAPACITORS

  ACCURATE VOLTAGE MONITORING Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The Formula features a differential sensing circuit that simplifies overclocking and tuning by allowing you to track voltages more accurately.	OPTIMEM III DDR4 4800+ MHZ (O.C.) Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Formula with your favorite modules and maximize Matisse throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.	UNTHROTTLED TRANSFER SPEED Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

  ---
