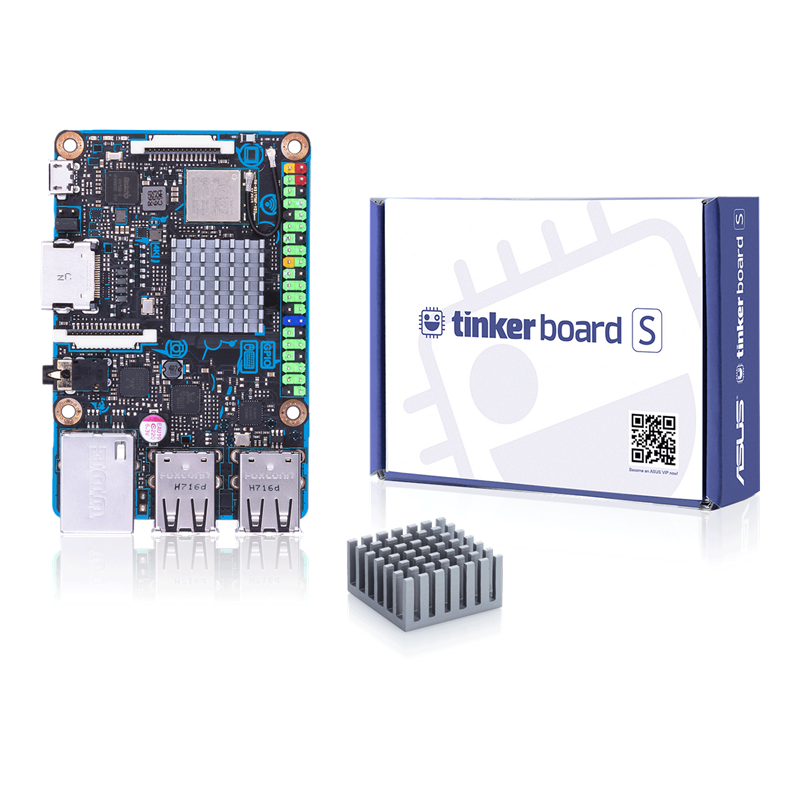

ASUS Tinker Board S
$185
Availability: In Stock
Condition: New
Shipping:
Quantity:
5 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
Bizgram Asia Pte Ltd
Address:
1 Rochor Canal Road #05-50 Sim Lim Square 188504
Singapore.
63341373
sales@bizgram.com
Add to Cart

Class-Leading Performance

With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288 — Tinker Board S offers significantly improved performance versus other popular SBC boards. To provide the flexibility needed for different builds and projects, Tinker Board S features 2GB of LPDDR3 dual-channel memory and is equipped with an onboard 16GB eMMC and SD 3.0 interface that offer significantly faster read and write speeds for the OS, applications and file storage.
Tinker Board S features standard maker connectivity options, including a 40-pin GPIO interface and enhanced I2S interface with Master and Slave modes for improved compatibility. With the GPIO API, Tinker Board S allows for interfacing with a range of inputs from buttons, switches, sensors, LEDs, and much more. Tinker Board S is equipped with one DSI MIPI connection for displays and touchscreens. A secondary CSI MIPI connection for compatible cameras allows for computer vision, and much more.

Tinker Board S also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.

Tinker Board S also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.

Enhanced DIY Design

Careful consideration went into the design and development of the Tinker Board S to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers.

The PCB dimensions and topology of the Tinker Board S align with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.

Tinker Board S also includes a heatsink, which helps improve he

Technical Details:

Brand: Asus
Seller SKU: Tinker Board S
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Feb 16, 2022

Class-Leading Performance

With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288 — Tinker Board S offers significantly improved performance versus other popular SBC boards. To provide the flexibility needed for different builds and projects, Tinker Board S features 2GB of LPDDR3 dual-channel memory and is equipped with an onboard 16GB eMMC and SD 3.0 interface that offer significantly faster read and write speeds for the OS, applications and file storage.
Tinker Board S features standard maker connectivity options, including a 40-pin GPIO interface and enhanced I2S interface with Master and Slave modes for improved compatibility. With the GPIO API, Tinker Board S allows for interfacing with a range of inputs from buttons, switches, sensors, LEDs, and much more. Tinker Board S is equipped with one DSI MIPI connection for displays and touchscreens. A secondary CSI MIPI connection for compatible cameras allows for computer vision, and much more.

Tinker Board S also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.

Tinker Board S also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.

Enhanced DIY Design

Careful consideration went into the design and development of the Tinker Board S to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers.

The PCB dimensions and topology of the Tinker Board S align with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.

Tinker Board S also includes a heatsink, which helps improve he
