MODEL NUMBER
MCB-NR200-KNNN-S00, MCB-NR200-WNNN-S00
SERIES
MasterBox Series
SIZE
Mini ITX
AVAILABLE COLOR(S)
Black, White
MATERIALS
Steel, Plastic, Mesh
DIMENSIONS (L X W X H)
376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
VOLUME (EXLC. PROTRUSIONS)
18.25L
MOTHERBOARD SUPPORT
Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
EXPANSION SLOTS
3
5.25" DRIVE BAYS
0
3.5" DRIVE BAYS
1 (Max. 2)
2.5" / 3.5" DRIVE BAYS (COMBO)
1
2.5" DRIVE BAYS
2 (Max. 3)
I/O PANEL
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP
1x 120mm 650-1800RPM PWM (SickleFlow)
PRE-INSTALLED FANS - FRONT
N/A
PRE-INSTALLED FANS - REAR
1x 92mm 650-2300RPM PWM (SickleFlow)
PRE-INSTALLED FANS - BOTTOM
N/A
FAN SUPPORT - TOP
2x 120mm
FAN SUPPORT - REAR
1x 92mm
FAN SUPPORT - BOTTOM
2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
FAN SUPPORT - SIDE
2x 120/140mm
RADIATOR SUPPORT - TOP
N/A
RADIATOR SUPPORT - REAR
92mm (not compatible with vertical GPU installation)
RADIATOR SUPPORT - BOTTOM
120mm, 240mm, (recommended for custom loops only)
RADIATOR SUPPORT - SIDE
120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
CLEARANCE - CPU COOLER
155mm, 76mm (GPU in vertical position)
CLEARANCE - PSU
130mm
CLEARANCE - GFX
L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
DUST FILTERS
Top, Bottom, Left side, Right side
POWER SUPPLY SUPPORT
SFX, SFX-L
WEIGHT
4.8 kg
NOTE
Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position

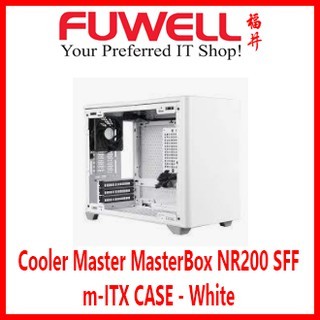

Seller SKU: | COOLERMASTER MASTERBOX NR200 SFF m-ITX CASE [White] |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Aug 5, 2022 |
MODEL NUMBER
MCB-NR200-KNNN-S00, MCB-NR200-WNNN-S00
SERIES
MasterBox Series
SIZE
Mini ITX
AVAILABLE COLOR(S)
Black, White
MATERIALS
Steel, Plastic, Mesh
DIMENSIONS (L X W X H)
376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
VOLUME (EXLC. PROTRUSIONS)
18.25L
MOTHERBOARD SUPPORT
Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
EXPANSION SLOTS
3
5.25" DRIVE BAYS
0
3.5" DRIVE BAYS
1 (Max. 2)
2.5" / 3.5" DRIVE BAYS (COMBO)
1
2.5" DRIVE BAYS
2 (Max. 3)
I/O PANEL
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - TOP
1x 120mm 650-1800RPM PWM (SickleFlow)
PRE-INSTALLED FANS - FRONT
N/A
PRE-INSTALLED FANS - REAR
1x 92mm 650-2300RPM PWM (SickleFlow)
PRE-INSTALLED FANS - BOTTOM
N/A
FAN SUPPORT - TOP
2x 120mm
FAN SUPPORT - REAR
1x 92mm
FAN SUPPORT - BOTTOM
2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
FAN SUPPORT - SIDE
2x 120/140mm
RADIATOR SUPPORT - TOP
N/A
RADIATOR SUPPORT - REAR
92mm (not compatible with vertical GPU installation)
RADIATOR SUPPORT - BOTTOM
120mm, 240mm, (recommended for custom loops only)
RADIATOR SUPPORT - SIDE
120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
CLEARANCE - CPU COOLER
155mm, 76mm (GPU in vertical position)
CLEARANCE - PSU
130mm
CLEARANCE - GFX
L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
DUST FILTERS
Top, Bottom, Left side, Right side
POWER SUPPLY SUPPORT
SFX, SFX-L
WEIGHT
4.8 kg
NOTE
Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
