The Hikvision PoE Switch DS-3E1105P-EI/M is a network switch with Power over Ethernet (PoE) capabilities designed for use in various environments, including offices, storehouses, warehouses, and factories. It offers several key functions and features:

PoE Support: This switch provides Power over Ethernet, allowing it to deliver both power and data over Ethernet cables to PoE-enabled devices. This simplifies device installation by eliminating the need for separate power cables.

Intelligent PoE Management: The switch is likely equipped with features for intelligent PoE management. This includes the ability to monitor power consumption, prioritize power delivery to critical devices, and remotely control PoE ports. It may also support features like PoE scheduling and power budget management.

Video Transmission: The switch is designed for video transmission, making it suitable for surveillance and video streaming applications. It should meet the bandwidth and quality of service requirements necessary for video data transmission.

World-Class Manufacturer: Hikvision is a renowned manufacturer known for producing quality and reliable network equipment.

Multiple Ports: The switch typically offers multiple Ethernet ports (e.g., 5 ports) to connect a variety of devices. Some of these ports support PoE, while others may not, depending on the specific model.

Security Features: Hikvision switches often come with security features like MAC address filtering, VLAN support, and other network security mechanisms to protect the network from unauthorized access.

Quality of Service (QoS): The switch likely supports QoS features to prioritize critical data traffic, ensuring smooth video transmission and managing other data traffic effectively.

Management Options: The switch may have a web-based management interface and/or support SNMP (Simple Network Management Protocol) for remote monitoring and configuration.

Rack-Mountable: These switches are often designed to be rack-mounted, facilitating easy installation in server rooms or network cabinets.

Redundancy and Reliability: Enterprise-grade switches may include redundancy and high-availability features to ensure network uptime and minimize downtime.

Temperature and Environmental Considerations: Depending on the intended use (e.g., warehouse or factory), the switch may be designed to operate in a range of temperatures and environmental conditions.

Energy Efficiency: Some Hikvision PoE switches are designed with energy-saving features to reduce power consumption when connected devices are not in use.

Please note that the specific functions and features of the Hikvision PoE switch may vary depending on the exact model and version. To obtain detailed information about the capabilities of a specific model, it is essential to refer to the product documentation or contact the manufacturer.

1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 90254466 & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

More choice & solutions : Wireless Video Intercom WL-11 || JO Series ||  JP Series || DA Series  ||  DB Series ||  EZVIZ Video Door Bell  ||
Hikvision FACIAL RECOGNITION DS-K1T341AMF  || HIKVISION IP INTERCOM DS-KIS703-P  ||  HIkvision DOOR ACCESS DS-K1T331W  ||

Biometric Door Access Reader DA22C  ||

Hikvision PoE Switch DS-3E1105P-EI/M  PoE Switch office storehouse warehouse factory Intelligent PoE Management Design for Video Transmission world-class manufacturer China

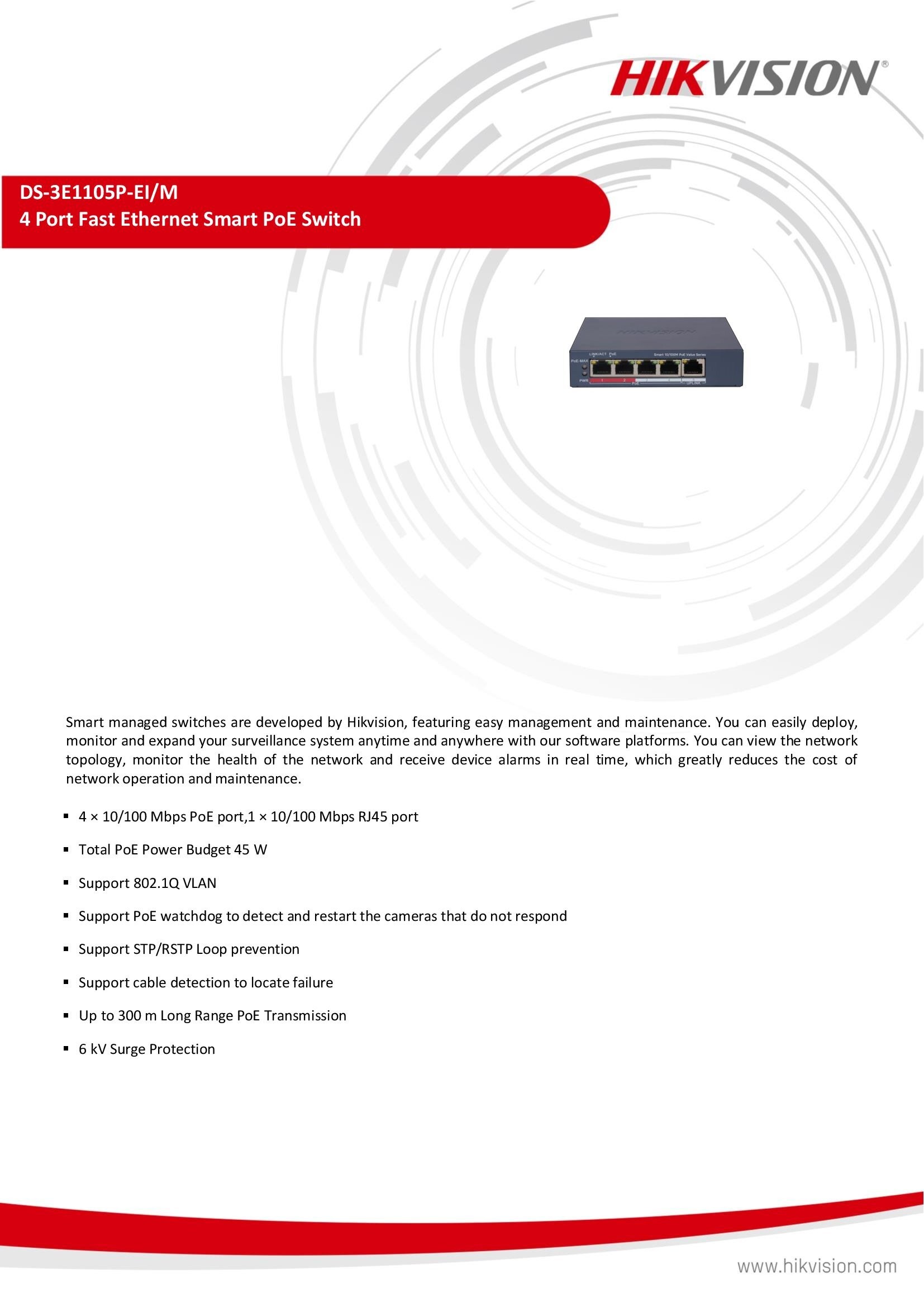

Description

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy,

monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network

topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of

network operation and maintenance.

features and functions

 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

 Total PoE Power Budget 45 W

 Support 802.1Q VLAN

 Support PoE watchdog to detect and restart the cameras that do not respond

 Support STP/RSTP Loop prevention

 Support cable detection to locate failure

 Up to 300 m Long Range PoE Transmission

 6 kV Surge Protection

Specification

Model DS-3E1105P-EI/M

Network

Parameters

Ports 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port

MAC Address Table 2 K

Switching Capacity 10 Gbps

Packet Forwarding Rate 7.44 Mpps

Internal Cache 1 Mbits

PoE Power

Supply

PoE Standard IEEE 802.3af,IEEE 802.3at

PoE Power Pin End-span: 1/2(-), 3/6(+)

PoE Port PoE: Ports 1 to 4

Max. Port Power 30 W

PoE Power Budget 45 W

Software

Function

Long Range

Ports 1 to 4: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

VIP Port

Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth

resources are insufficient.

Port Isolation

Ports 1 to 4: port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can

communicate with ports outside the isolation group.

PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical

port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 1 aggregation group.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops,

which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 32 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro.

Functions supported:

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.

System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management

IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support management via Hik-Central Pro.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as

network cable length can be detected.

Supports 802.1ab LLDP for peer device discovery.

Support SNMP v1/v2c for third-party management platform access.

Support port mirroring for fault locating.

General

Shell Metal material

Net Weight 0.26 kg (0.573 lb)

Gross Weight 0.75 kg (1.65 lb)

Dimensions (W × H × D) 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity 5% to 95% (no condensation)

Relative Humidity 5% to 95% (no condensation)

Power Supply 54 V DC, 0.92 A

Installation Mode Desk-Mounted,Wall-Mounted

Max. Power Consumption 50 W

Power Consumption in Idle 1 W

Surge Protection 6 kV

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:

2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN

62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC)

No.1907/2006
