EXCERIA G2 SSD Product Specifications
Physical
Capacity: 1TB, 2TB
Form Factor: M.2 Type 2280-S2-M
Interface: PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory Type: BiCS FLASH™ TLC
Interface Maximum Speed: 32 GT/s (PCIe® Gen3 x4)
Dimension (Max: LxWxH): 80.15 x 22.15 x 2.23 mm
Interface Command: NVM Express™ Revision 1.3c command set
Weight
1TB: 6.8 g (typ.)
2TB: 7.1 g (typ.)
Performance
Max Sequential Read Speed(1): 2,100 MB/s
Max Sequential Write Speed(1): 1,700 MB/s
Max Random Read Speed(2): 1TB 400,000 IOPS / 2TB 360,000 IOPS
Max Random Write Speed(2): 400,000 IOPS
Endurance: TBW(3)
1TB: 400 TB
2TB: 800 TB
MTTF: 1.5 million hours
Environmental
Operating Temperature: 0 °C (Ta) to 85 °C (Tc)
Storage Temperature: -40 °C to 85 °C
Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage: 3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active)
1TB: 3.5 W (typ.)
2TB: 5.3 W (typ.)
Compatibility
PCI Express
Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops

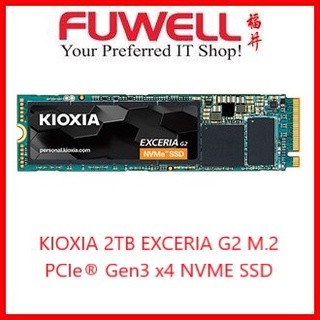

Seller SKU: | KIOXIA 2TB EXCERIA G2 M.2 NVME SSD |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Aug 5, 2022 |
