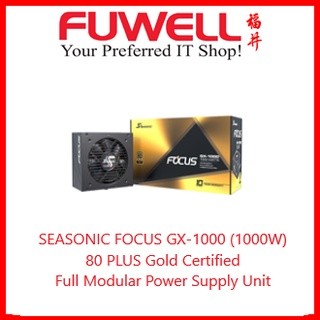

FOCUS-GX-1000

Technical Specifications

80PLUS® Gold

Cybenetics Efficiency Level TBA

Cybenetics Noise Level TBA

Form Factor Intel ATX 12 V

Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information Fan Size 120 mm

Fan Control S3FC - Fanless until 30 % load

Fan Bearing Fluid Dynamic Bearing

Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information Modularity Fully Modular

Cable type Flat black cables

Electrical Features Operating Temperature 0 - 40 °C

MTBF @ 25 °C, excl. fan 100,000 hours

AC Input Full Range

Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 10 Years

Power Output

AC Input Voltage: 100 V - 240 V

Current: 13 - 6.5 A

Frequency: 50 Hz - 60 Hz

DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB

Maximum Power 25 A 25 A 83 A 0.3 A 3 A

125 W 996 W 3.6 W 15 W

Total continuous power 1000 W

FOCUS-GX-1000

Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included

MB-610 MB (24/20 pins) 1 610 1

CPU-650 CPU (8/4 pins) 1 650 2

PCIe-750-2x PCIe (8/6 pins) 2 750 3

PCIe-750-1x PCIe (8/6 pins) 1 750 0

SATA-810-4x-90 SATA 4 810 1

SATA-800-4x-180 SATA 4 860 1

SATA-760-4x-90 SATA 4 760 0

SATA-700-2x-90 SATA 2 700 0

SATA-570-2x-180 SATA 2 570 0

SATA-470-2x-180 SATA 2 470 0

SATA-450-2x-180 SATA 2 450 1

Molex-690-3x Molex 3 690 1

Molex-470-2x Molex 2 470 1

Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 1

Molex-to-FDD-101 Molex to FDD Adapter 1 101 0
