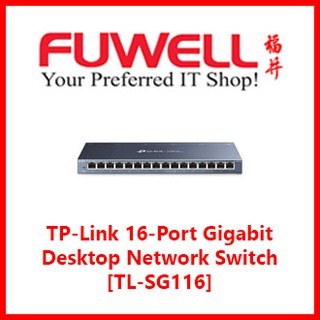

TP-Link 16-Port Gigabit Desktop Network Switch [TL-SG116]

16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Steel housing, desktop or wall-mounting design

Support 802.1p/DSCP QoS and IGMP Snooping function

Plug and play, with no configuration needed

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p

Interface 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity Fanless

Physical Security Lock Yes

Power Consumption Maximum: 10.0W

External Power Supply External Power Adapter (Output: 12VDC / 1.0A)

LED Indicator System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

Max Power Consumption 10W(220V/50Hz)

Max Heat Dissipation 34.12BTU/h

PERFORMANCE

Packet Forwarding Rate 23.8Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1Mb

Jumbo Frame 10KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

Package Contents 16-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing
