1920GB - 1343$
3840GB - 2267$
7680GB - 4611$

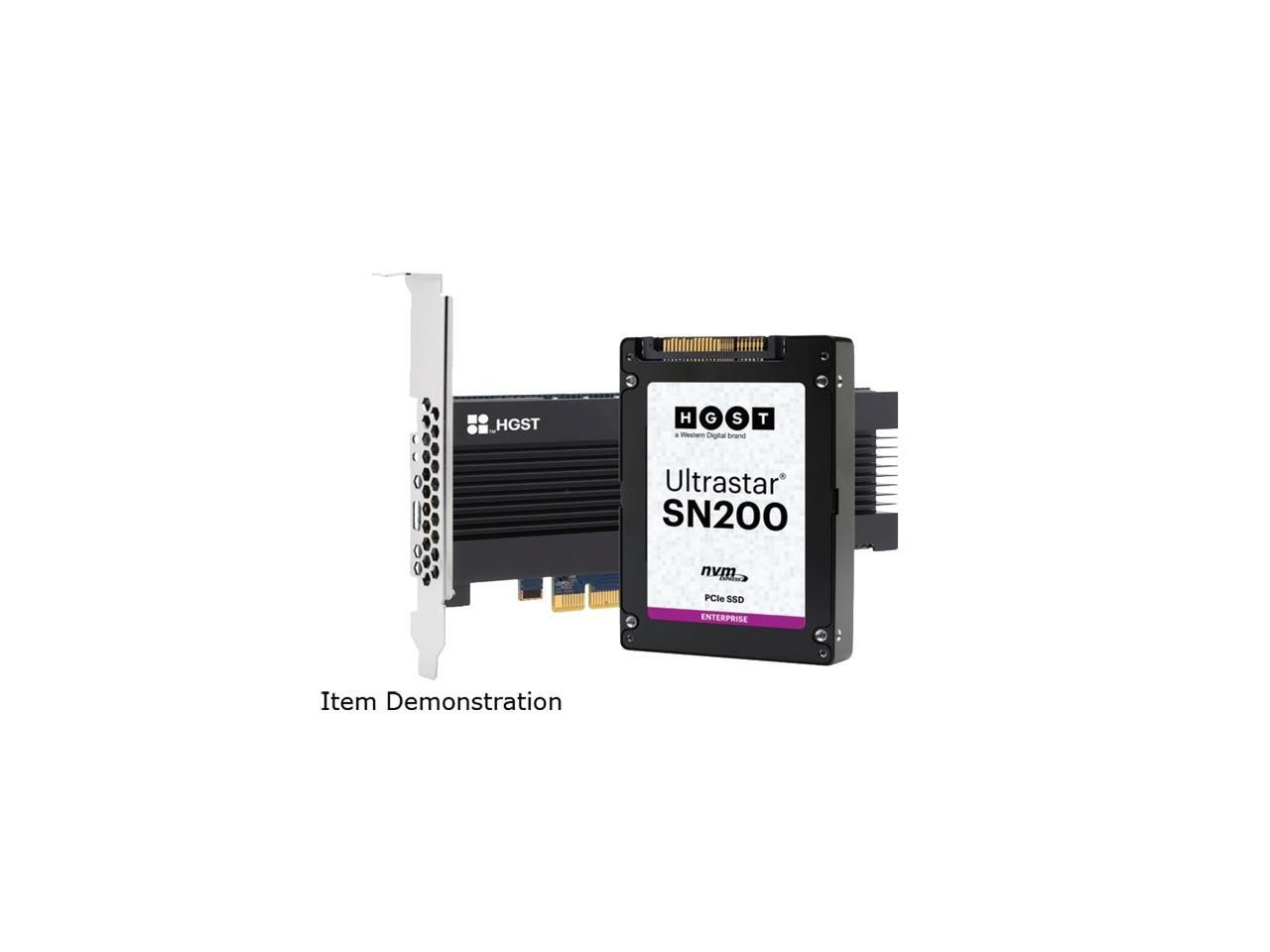

NVMe™ SSDs for Application Acceleration
Western Digital extends its technology leadership with the introduction of the Ultrastar®
DC SN200* solid-state drives (SSDs). Ultrastar DC SN200 NVMe™ SSDs deliver a new level
of performance and capacity for Enterprise, Cloud and Hyperscale environments. Enabling
faster intelligence in the expanding digital data demands of business applications,
Ultrastar DC SN200 SSDs are a reliable resource for fast access to critical data. Ultrastar
DC SN200 SSDs double the speed of the previous generation within the same power
envelope. By offering exceptional 580,000 mixed read/write random 70/30 4KiB I/O
performance on the 6.4TB HH-HL add-in card (AIC), Ultrastar DC SN200 SSDs enable OLTP
applications to scale to new levels.
Ultra-Low Latency and High Quality of Service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high
QoS from their storage infrastructure. Ultrastar DC SN200 delivers a 30% improvement
over its predecessor providing consistent low latency as the device reaches its highest
levels of throughput. The combination of high throughput performance and predictable
low latency delivers extreme performance for today’s data intensive applications.
High Density Supports Data Growth
Delivering capacities up to 7.68TB in both form factors for 1 drive write per day (DW/D)
and 6.4TB for 3 DW/D endurance ratings, Ultrastar DC SN200 delivers twice the density as
its predessor. In fact, at 7.68TB this product family delivers the highest density in both 2.5-
inch U.2 and HH-HL add-in card (AIC) form factors amongst NVMe-compliant devices at the
time of its market introduction, providing swift access to even more data.
Enterprise Storage Experience in Dual Port
Ultrastar SSDs leverage decades of enterprise storage design expertise in high
performance and high reliability to deliver our first dual-port NVMe SSD 2.5-inch drive. The
dual-port feature supports two redundant paths to an SSD, ensuring access to data in the
event of a failure in the data path. The dual-port option, which includes scatter gather list
(SGL), is available in all models of the Ultrastar DC SN200 2.5-inch U.2 drive.
Ultrastar Quality and Reliability
Ultrastar DC SN200 SSDs extend the company’s long-standing tradition of performance
and reliability leadership. A balanced combination of new and proven technologies
enables high reliability and availability to customer data. Ultrastar drives are backed by a
5-year limited warranty and an array of technical support and services, which may include
customer and integration assistance. Western Digital is dedicated to providing a complete
portfolio of storage products to satisfy today’s monumental computing needs.Features & Benefits
*Previously known as Ultrastar SN200 and SN260
HH-HL AIC NVMe SSD
7.68TB, 6.4TB, 3.84TB, 3.2TB, 1.92TB, and 1.6TB
2.5-inch U.2 NVMe SSD
7.68TB, 6.4TB, 3.84TB, 3.2TB, 1.92TB, 1.6TB,
960GB and 800GB
Performance Capacity & Endurance Reliability Integration
Feature • Up to 1.2M IOPS (4KiB)
• Up to 580K IOPS mixed (R/W)
random workloads (4KiB)
• 800GB to 7.68TB capacities
• Endurance optimized or
Capacity optimized options
• UBER of < 1 in 1017
• Dual-port 2x2 U.2 support
• PowerSafe power-loss protection
NVMe compliant
Benefit Use as top tier storage to
accelerate databases and high
frequency workloads
Broad portfolio offering the
most value based on workload
requirements
Enterprise-grade reliability
helps reduce service incidents
to help lower support costs
Standard NVMe driver support
for ease of system integration
Seller SKU: | HUSMR7676BHP3Y1 |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Mar 28, 2022 |
1920GB - 1343$
3840GB - 2267$
7680GB - 4611$
NVMe™ SSDs for Application Acceleration
Western Digital extends its technology leadership with the introduction of the Ultrastar®
DC SN200* solid-state drives (SSDs). Ultrastar DC SN200 NVMe™ SSDs deliver a new level
of performance and capacity for Enterprise, Cloud and Hyperscale environments. Enabling
faster intelligence in the expanding digital data demands of business applications,
Ultrastar DC SN200 SSDs are a reliable resource for fast access to critical data. Ultrastar
DC SN200 SSDs double the speed of the previous generation within the same power
envelope. By offering exceptional 580,000 mixed read/write random 70/30 4KiB I/O
performance on the 6.4TB HH-HL add-in card (AIC), Ultrastar DC SN200 SSDs enable OLTP
applications to scale to new levels.
Ultra-Low Latency and High Quality of Service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high
QoS from their storage infrastructure. Ultrastar DC SN200 delivers a 30% improvement
over its predecessor providing consistent low latency as the device reaches its highest
levels of throughput. The combination of high throughput performance and predictable
low latency delivers extreme performance for today’s data intensive applications.
High Density Supports Data Growth
Delivering capacities up to 7.68TB in both form factors for 1 drive write per day (DW/D)
and 6.4TB for 3 DW/D endurance ratings, Ultrastar DC SN200 delivers twice the density as
its predessor. In fact, at 7.68TB this product family delivers the highest density in both 2.5-
inch U.2 and HH-HL add-in card (AIC) form factors amongst NVMe-compliant devices at the
time of its market introduction, providing swift access to even more data.
Enterprise Storage Experience in Dual Port
Ultrastar SSDs leverage decades of enterprise storage design expertise in high
performance and high reliability to deliver our first dual-port NVMe SSD 2.5-inch drive. The
dual-port feature supports two redundant paths to an SSD, ensuring access to data in the
event of a failure in the data path. The dual-port option, which includes scatter gather list
(SGL), is available in all models of the Ultrastar DC SN200 2.5-inch U.2 drive.
Ultrastar Quality and Reliability
Ultrastar DC SN200 SSDs extend the company’s long-standing tradition of performance
and reliability leadership. A balanced combination of new and proven technologies
enables high reliability and availability to customer data. Ultrastar drives are backed by a
5-year limited warranty and an array of technical support and services, which may include
customer and integration assistance. Western Digital is dedicated to providing a complete
portfolio of storage products to satisfy today’s monumental computing needs.Features & Benefits
*Previously known as Ultrastar SN200 and SN260
HH-HL AIC NVMe SSD
7.68TB, 6.4TB, 3.84TB, 3.2TB, 1.92TB, and 1.6TB
2.5-inch U.2 NVMe SSD
7.68TB, 6.4TB, 3.84TB, 3.2TB, 1.92TB, 1.6TB,
960GB and 800GB
Performance Capacity & Endurance Reliability Integration
Feature • Up to 1.2M IOPS (4KiB)
• Up to 580K IOPS mixed (R/W)
random workloads (4KiB)
• 800GB to 7.68TB capacities
• Endurance optimized or
Capacity optimized options
• UBER of < 1 in 1017
• Dual-port 2x2 U.2 support
• PowerSafe power-loss protection
NVMe compliant
Benefit Use as top tier storage to
accelerate databases and high
frequency workloads
Broad portfolio offering the
most value based on workload
requirements
Enterprise-grade reliability
helps reduce service incidents
to help lower support costs
Standard NVMe driver support
for ease of system integration
