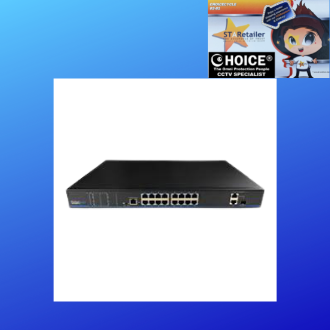

16-port PoE Switch UTP1-SW16-TP300


The 16 ports PoE switch is an unmanaged PoE Ethernet switch along with 16 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 270 watts. It supports web-based PoE management and real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.


Downstream Ports

16* 10/100Base-TX( PoE)

Uplink Ports

2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo)

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X

Switching Capacity

7.2Gbps

Packet Forwarding Rate

5.36Mpps

Forwarding Modes

Store and Forward

Packet Buffer

2.75M

MAC Address Table

4K

PoE Power Method

802.3af/at(PSE) End-span

One-key CCTV mode

VLAN:all the downlink ports can only communicate with uplink ports.

Retrain the network storm to 3Mbps.

Extend transmission distance of the downlink ports to 250m max.

PoE Line Pair

1/2(+)3/6(-)

PoE Output Power

54V DC , 30 watts max

PoE Budget

270 watts max

PoE Management

Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output

Surge Immunity

6KV    ExecuteIEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Input Voltage

100~240V AC50/60Hz

Power Consumption

300W(Including PoE)

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

442mm×207mm×44.5mm

Weight

2.69kg

Certification

CE, FCC, ROHS


  1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
  2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
  3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
  4. Can issue e-Invoice for your accounting. (upon request)

16-port PoE Switch UTP1-SW16-TP300
