8 Ports Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120
$162.50
Availability: In Stock
Condition: New
Shipping:
Quantity:
10 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572
enquiry@choicecycle.com.sg
Add to Cart

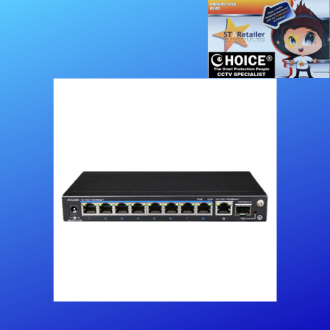

8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120


8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.


Downstream Ports

8* 10/100/1000Base-T (PoE)

Uplink Ports

1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X

Switching Capacity

20Gbps

Packet Forwarding Rate

14Mpps

Forwarding Modes

Store and Forward

Packet Buffer

1M

MAC Address Table

4K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+)3/6(-)

PoE Output Power

54V DC , 30 watts max

PoE Budget

120 watts max

Surge Immunity

6KV    ExecuteIEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Input Voltage

DC 48V~57V

Power Consumption

5W

Operating Temperature

-10℃~45℃

Storage temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

200mm×101.8mm×27mm

Weight

500g

Certification

CE, FCC, ROHS


  1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
  2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
  3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
  4. Can issue e-Invoice for your accounting. (upon request)

8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120


Technical Details:

Brand: Utepo
Model number: UTP3-GSW0802-TSP120
Seller SKU: CC81RTUTP3-GSW0802-TSP120
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Mar 14, 2022

8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120


8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.


Downstream Ports

8* 10/100/1000Base-T (PoE)

Uplink Ports

1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port

Network Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X

Switching Capacity

20Gbps

Packet Forwarding Rate

14Mpps

Forwarding Modes

Store and Forward

Packet Buffer

1M

MAC Address Table

4K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+)3/6(-)

PoE Output Power

54V DC , 30 watts max

PoE Budget

120 watts max

Surge Immunity

6KV    ExecuteIEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

ExecuteIEC61000-4-2

Input Voltage

DC 48V~57V

Power Consumption

5W

Operating Temperature

-10℃~45℃

Storage temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

200mm×101.8mm×27mm

Weight

500g

Certification

CE, FCC, ROHS


  1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
  2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
  3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
  4. Can issue e-Invoice for your accounting. (upon request)

8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120





Return and Refund Policy:

Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
