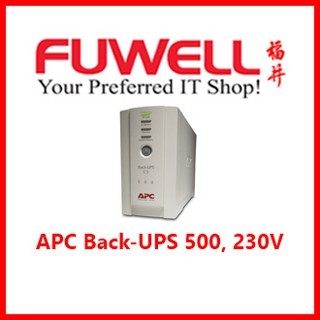

APC Back-UPS 500, 230V [BK500EI]

Output

Max Configurable Power (Watts): 300 Watts / 500VA

Output Frequency (sync to mains): 47 - 63 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised

Topology: Standby

Waveform type: Stepped approximation to a sinewave

Transfer Time: 6 ms typical : 10 ms maximum

Input

Input frequency: 47 - 63 Hz, 50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations: 160 - 300 Adjustable, 180 - 266V

Number of Power Cords: 2

Batteries & Runtime

Battery type: Lead-acid battery

Typical recharge time: 8hour(s)

Replacement Battery: RBC2

Expected Battery Life (years): 4 - 6

RBC Quantity: 1

Battery Charge Power (Watts): 10 Watts

Battery Volt-Amp-Hour Capacity: 83

Runtime: View Runtime Graph

View Runtime Chart

Efficiency: View Efficiency Graph

Communications & Management

Interface Port(s): Optional Simple Signalling RS232 cable, USB

Control panel: LED status display with on line : on battery : replace battery and overload indicators

Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating: 310Joules

Data Line Protection: RJ45 analog phone line for phone/fax/modem/DSL

Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height: 165MM, 16.5CM

Maximum Width: 91MM, 9.1CM

Maximum Depth: 284MM, 28.4CM

Net Weight: 6.32KG

Shipping weight: 7.05KG

Shipping Height: 178MM, 17.8CM

Shipping Width: 241MM, 24.1CM

Shipping Depth: 368MM, 36.8CM

Color: Beige

Master Carton Units: 1.0

Units per Pallet: 48.0

SCC Codes: 10731304016356

Environmental

Operating Temperature: 0 - 40 °C

Operating Relative Humidity: 0 - 95 %

Operating Elevation: 0 - 3048meters

Storage Temperature: -15 - 45 °C

Storage Elevation: 0 - 15240meters

Audible noise at 1 meter from surface of unit: 40.0dBA

Online thermal dissipation: 24.0BTU/hr

Conformance

Approvals: C-Tick, CE, EN 50091-1, EN 50091-2, GOST, VDE

Equipment protection policy: Lifetime : 100000 euros, Lifetime : 50000 GBP

Standard warranty: 2 years repair or replace

Sustainable Offer Status

RoHS: Compliant
