About this item

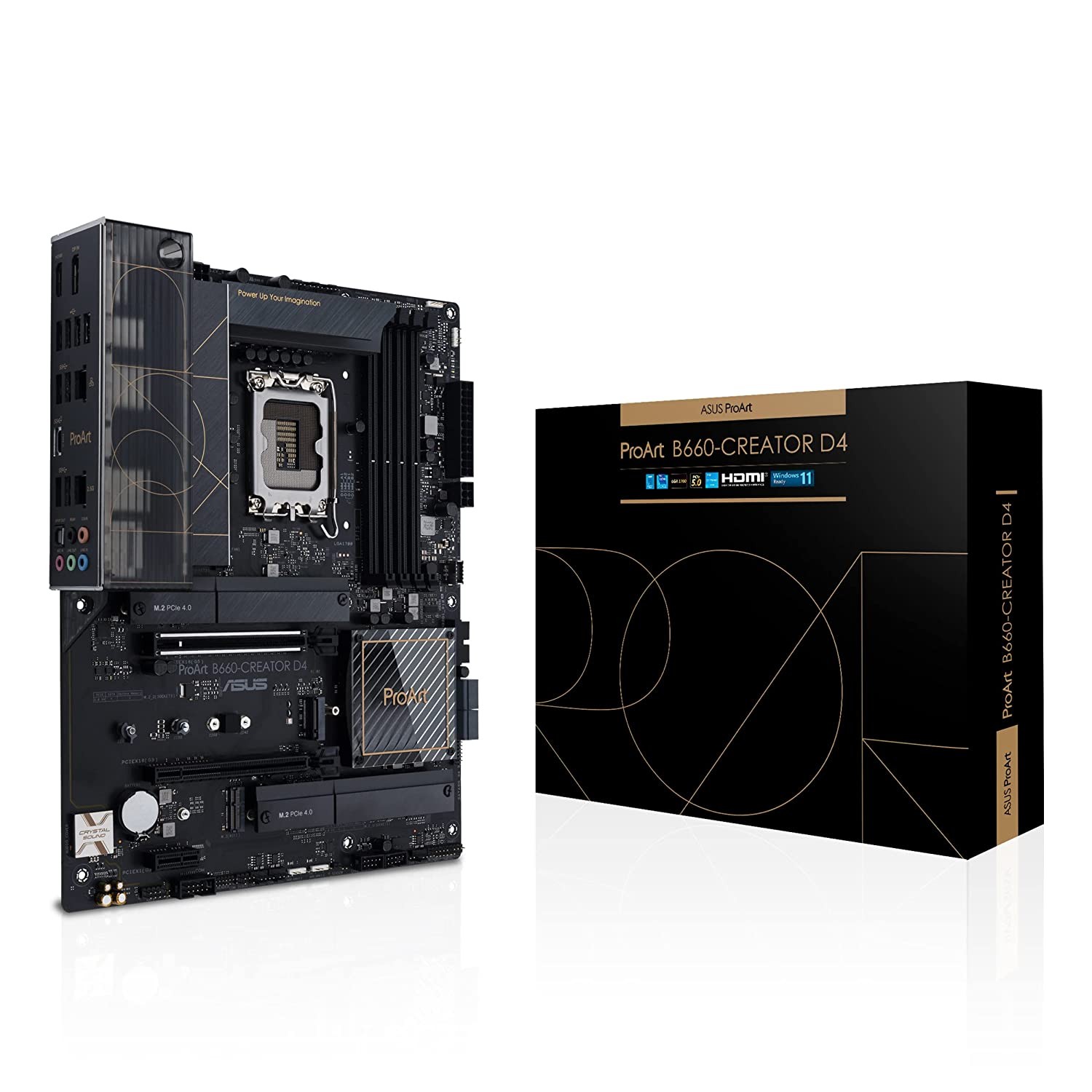

• ASUS ProArt B660-Creator D4 mATX motherboard is designed to support latest 12th Gen Intel CPU's with LGA 1700 socket, Pentium Gold and Celeron Processors with B660 Intel Chipset.
• The board is built with PCIe 5.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
• Equipped with the next-gen Turbo boost max technology of PCIe 4.0, Three M.2 slots(PCIe 4.0), Realtek 2.5Gb Ethernet, Intel 1Gb Ethernet, USB 3.2 Gen 2 Type-C, Four USB 3.2 Gen 1 Type-A, Four USB 2.0 Type-A, Front panel USB 3.2 Gen 2x2, Three USB 3.2 Gen 1, Two USB 2.0, Four SATA 6Gb/s, HDMI, DP support.
• Comes with most comprehensive cooling options ever that are configurable via Fan Xpert 4 or the UEFI BIOS. It employs VRM heatsink, PCH heatsink and hybrid fan headers. We adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
• ProArt B660-Creator D4 programmed with Q-LED Core display, that produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard

• ---

  From the manufacturer






  ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today's digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components,along with AR and VR

  ProArt Z690-CREATOR WIFI

  Intel Z690 LGA 1700 ATX motherboard built for creators, with PCIe 5.0, DDR5 support, Thunderbolt 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support

  • Intel Socket LGA 1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Future-proofed connectivity: Two Thunderbolt 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
  • Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
  • Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancelation
  • Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header
  • Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
  • Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability

  Thunderbolt 4 USB-C Each Thunderbolt 4 port delivers up to 40Gbps of bidirectional bandwidth for the latest high-speed devices and drives.Thunderbolt 4 also supports up to two external 4K displays and extends PCIebandwidth to up to 32 Gbps.	USB 3.2 Gen 2x2 Type-C FrontPanel Connector with Quick Charge 4+ USB 3.2 Gen 2x2 boosts Type-C data transfers with speeds of up to 20 Gbps. The port also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.	Networking (WiFi 6E, 10Gb, 2.5 Gb) . WiFi 6E Marvell AQtion 10 Gb Ethernet Intel 2.5 Gb Ethernet

  M.2 Storage Ultrafast Transfer Speed: Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds. M.2 Q-Latch : The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.	Robust Power Delivery Teamed Power Stages Digi+ Power Control ProCool II Power Connector Chokes & Capacitors	PCIe 5.0 Ready The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as improved signal integrity, backward-Compatible CEM connectors for add-in cards, and backward compatibility with previous PCIe versions.

  DDR5 Performance Boost ProArt Z690-Creator WiFi enhances DDR5 performance by providing overclocking options for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).	Comprehensive Cooling Design Maintaining system stability under heavy loads is of paramount importance, so ProArt Z690-Creator WiFi features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.	Free 3 Months of Adobe Creative Cloud Get complimentary membership with the purchase of selected ASUS products.* (Up to a USD 238.47 value)
