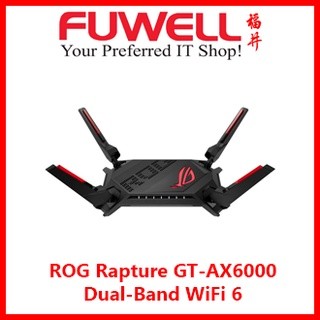

ROG Rapture GT-AX6000

Model Name

GT-AX6000

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6

Product Segment

AX6000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4 GHz 4 x 4

5 GHz 4 x 4

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash, 1 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access),

Beamforming: standard-based and universal,

1024-QAM high data rate,

20/40/80/160 MHz bandwidth,

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,

RJ45 for 2.5 Gigabits BaseT for LAN x 1,

RJ45 for Gigabits BaseT for LAN x 4,

USB 3.2 Gen 1 x 1,

USB 2.0 x 1

Button

WPS Button,

Reset Button,

Power Button,

LED Control Button

LED Indicator

Power x 1

2.4GHz x 1

5GHz x 1

2.5G WAN x 1

2.5G LAN x 1

LAN x 1

WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current

Package content

GT-AX6000 WiFi 6 Dual-Band Gaming Router

RJ-45 cable

Power Adapter

Quick Start Guide

Warranty Card

Product Weight (g)

1121.4 g

AiMesh

AiMesh :

Yes

Primary AiMesh router :

Yes

AiMesh node :

Yes

Router APP

ASUS Router APP :

Yes

Game

Game Boost/acceleration :

Yes

ROG_First :

Yes

OpenNAT (Game Profile) :

Yes

Gaming port :

Yes

AiProtection

AiProtection :

AiProtection Pro

Router Security Assessment :

Yes

Malicious site blocking :

Yes

Two-Way IPS :

Yes

Infected Device Prevention and Blocking :

Yes

Parental Control

Parental Control :

Yes

Parental Control Customized Internet schedule :

Yes

Traffic Control

Adaptive QoS :

Yes

Bandwidth Monitor :

Yes

Bandwidth limiter :

Yes

Maximum Bandwidth limiter rule :

32

Traditional QoS :

Yes

Maximum Traditional QoS rule :

32

Traffic Monitor :

Yes

Real-time traffic monitor :

Yes

Wired Traffic Monitor :

Yes

Wireless Traffic Monitor :

Yes

Traffic Analyzer :

Yes

Traffic analysis period :

Daily, Weekly, Monthly

Website history :

Yes

Wireless

IPv6 :

Yes

MU-MIMO :

Yes

Wi-Fi Encryption :

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

UTF-8 SSID :

Yes

Guest Network :

Yes

Maximum Guest Network rule :

2.4GHz x3, 5GHz x3

Guest Network Encryption :

Open system, WPA/WPA2/WPA3-Personal

WPS :

Yes

Wi-Fi MAC address filter :

Yes

Maximum MAC filters :

64

Wireless scheduler :

Yes

Airtime fairness :

Yes

RADIUS Server :

Yes

Universal beamforming :

Yes

WAN

Explicit beamforming :

Yes

Internet connection Type :

PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN :

Yes

WAN Aggregation :

Yes

3G/4G LTE dongle :

Yes

Android tethering :

Yes

Port forwarding :

Yes

Maximum port forwarding rule :

64

Port triggering :

Yes

Maximum port triggering rule :

32

DMZ :

Yes

DDNS :

Yes

NAT Passthrough :

PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server :
