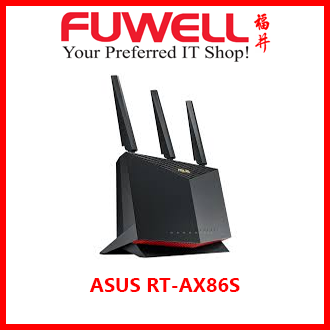

RT-AX86S
RT-AX86U

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX5700 ultimate AX performance : 861+4804Mbps

Yes

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

External antenna x 3
Internal PCB antenna x 1

2.4GHz 3x3
5GHz 4x4

RT-AX86U:1.8GHz quad-core processor
RT-AX86S:1.8GHz dual- core processor

RT-AX86U: 256 MB Flash
1 GB RAM
RT-AX86S: 256MB Flash
512MB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

2.4 GHz / 5 GHz

RT-AX86U:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)
2.5G/1Gbps multi-Gig port (configurable)
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen 1 x 2

RT-AX86S:
RJ45 for 10/100/1000 BaseT for WAN x 1
RJ45 for 10/100/1000 BaseT for LAN x 4
Five (5) 10/100/1000 Mbps Gigabit Ethernet ports
-- LAN: 4xGbE (2x port aggregation LAN)
-- WAN: 1 GbE
-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.
USB 3.2 Gen1 x1, 2.0 x1

WPS Button, Reset Button, Power Switch, LED on/off Button

RT-AX86U:
Power x 1
2.4GHz x 1
5GHz x 1
2.5G Port x 1
WAN x 1
LAN x 4
WPS x 1
RT-AX86S:
Power x 1
2.4GHz x 1
5GHz x 1
WAN x 1
LAN x 4
WPS x 1
USB x 1

RT-AX86U : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
RT-AX86S : 12 V with max.3 A current / 19.5 V with max. 2.31 A current

RT-AX86U:

RT-AX86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

RT-AX86S:

RT-AX86S WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

814.5 g

AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes

ASUS Router APP : Yes

Game Boost/acceleration : Yes
WTFast : No

Support Alexa skil : Yes

Support IFTTT : No

AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking ; Yes

Parental Control : Yes
Parental Control Customized Internet schedule : Yes

Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Traffic analysis period : Daily, Weekly, Monthly
Website history : Yes

IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : Yes
3G/4G LTE dongle : Yes
Android tethering : Yes
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
Maximum port triggering rule : 32
DMZ : Yes
DDNS : Yes
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : Yes
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64

VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : Yes
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : Yes
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes

Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
