D-Link DMC-920T/E 10/100Base-TX to 100Base-FX Single-Fiber Media Converter (TX-1550/RX-1310 nm)
Part Number: DMC-920T/E
This media converter combines transmit and receive signals onto one fibre strand using two wavelengths. This design avoids the budget losses incurred by the single-wavelength single-fiber technology and minimizes the possibility of reflections in the system.

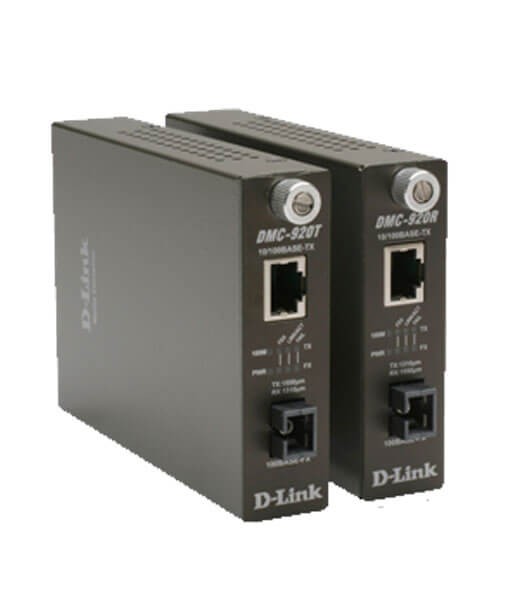

The units on both ends of a link are different. One module uses one wavelength to transmit and a second wavelength to receive, while the other module flips that relationship. For this reason, these units are used in pairs.
A pair of a one-channel single fiber is used for media conversion between 10/100BASE-TX and 100BASE-FX.
Two different transmitting wavelengths, one wavelength with bi-directional for both transmit and receive.
– DMC-920R: This media converter provides 1310 micron for TX, 1550 micron for RX.
– DMC-920T: This media converter provides 1550 micron for TX, 1310 micron for RX.
Fiber cable support is 9/125um, 10/125um single-mode fiber , maximum 20 km cable distance
Specifications
Brand: | D-LINK |
---|---|
Seller SKU: | DMC-920/E |
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Feb 22, 2022 |
