Hikvision PoE Switch DS-3E1526P-SI  PoE Switch office storehouse warehouse factory Intelligent PoE Management Design for Video Transmission world-class manufacturer China

The Hikvision PoE Switch DS-3E1526P-SI is a network switch with Power over Ethernet (PoE) capabilities designed for use in various environments, including offices, storehouses, warehouses, and factories. It offers several key functions and features:

PoE Support: This switch provides Power over Ethernet, allowing it to deliver both power and data over Ethernet cables to PoE-enabled devices. This simplifies device installation by eliminating the need for separate power cables.

Intelligent PoE Management: The switch is likely equipped with features for intelligent PoE management. This includes the ability to monitor power consumption, prioritize power delivery to critical devices, and remotely control PoE ports. It may also support features like PoE scheduling and power budget management.

Video Transmission: The switch is designed for video transmission, making it suitable for surveillance and video streaming applications. It should meet the bandwidth and quality of service requirements necessary for video data transmission.

World-Class Manufacturer: Hikvision is a renowned manufacturer known for producing quality and reliable network equipment.

Multiple Ports: The switch typically offers multiple Ethernet ports (e.g., 24 ports) to connect a variety of devices. Some of these ports support PoE, while others may not, depending on the specific model.

Security Features: Hikvision switches often come with security features like MAC address filtering, VLAN support, and other network security mechanisms to protect the network from unauthorized access.

Quality of Service (QoS): The switch likely supports QoS features to prioritize critical data traffic, ensuring smooth video transmission and managing other data traffic effectively.

Management Options: The switch may have a web-based management interface and/or support SNMP (Simple Network Management Protocol) for remote monitoring and configuration.

Rack-Mountable: These switches are often designed to be rack-mounted, facilitating easy installation in server rooms or network cabinets.

Redundancy and Reliability: Enterprise-grade switches may include redundancy and high-availability features to ensure network uptime and minimize downtime.

Temperature and Environmental Considerations: Depending on the intended use (e.g., warehouse or factory), the switch may be designed to operate in a range of temperatures and environmental conditions.

Energy Efficiency: Some Hikvision PoE switches are designed with energy-saving features to reduce power consumption when connected devices are not in use.

Please note that the specific functions and features of the Hikvision PoE switch may vary depending on the exact model and version. To obtain detailed information about the capabilities of a specific model, it is essential to refer to the product documentation or contact the manufacturer.

1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 90254466 & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

More choice & solutions : Wireless Video Intercom WL-11 || JO Series ||  JP Series || DA Series  ||  DB Series ||  EZVIZ Video Door Bell  ||
Hikvision FACIAL RECOGNITION DS-K1T341AMF  || HIKVISION IP INTERCOM DS-KIS703-P  ||  HIkvision DOOR ACCESS DS-K1T331W  ||

Biometric Door Access Reader DA22C  ||

Hikvision PoE Switch DS-3E1526P-SI  PoE Switch office storehouse warehouse factory Intelligent PoE Management Design for Video Transmission world-class manufacturer China

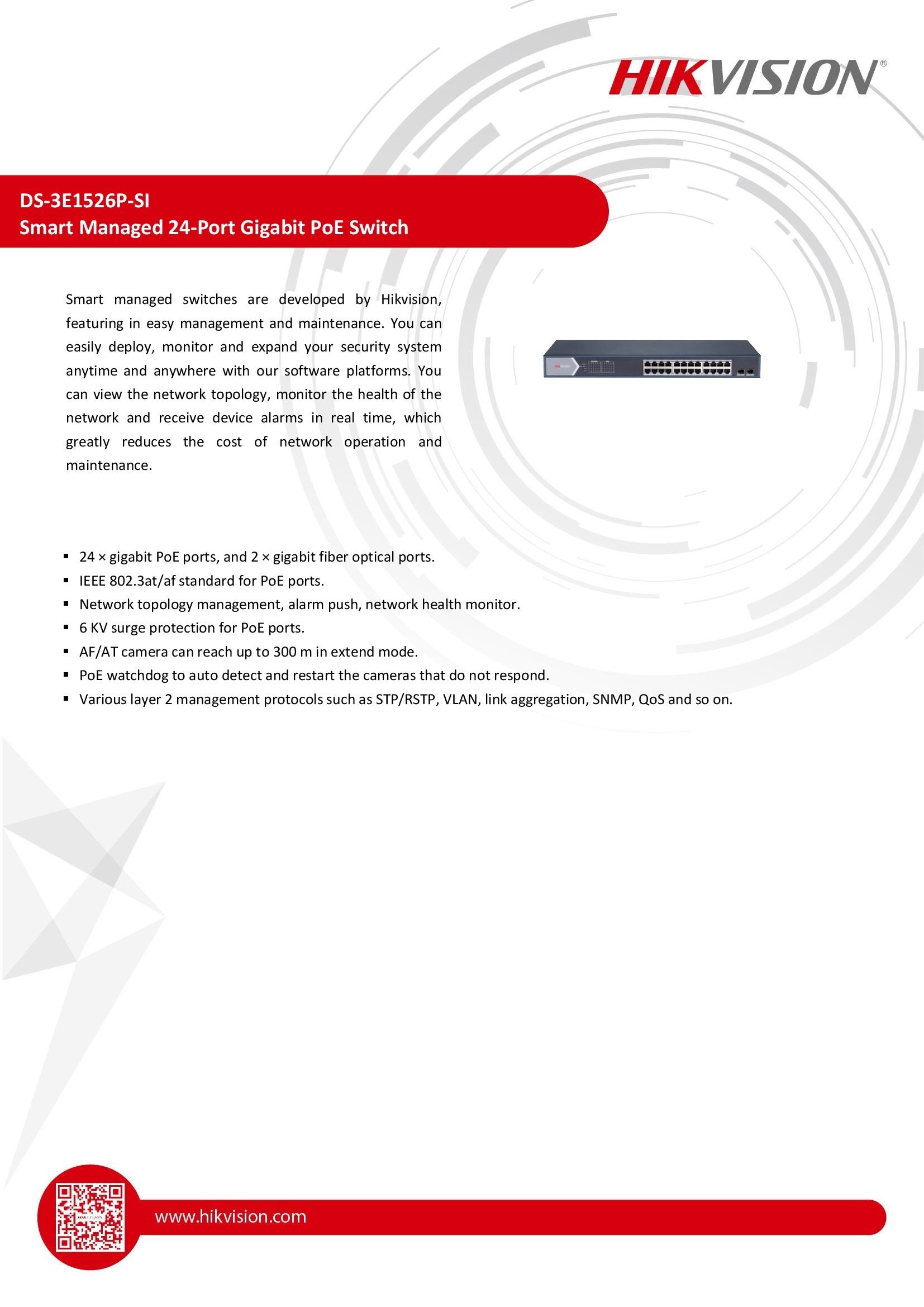

Description

Smart managed switches are developed by Hikvision,

featuring in easy management and maintenance. You can

easily deploy, monitor and expand your security system

anytime and anywhere with our software platforms. You

can view the network topology, monitor the health of the

network and receive device alarms in real time, which

greatly reduces the cost of network operation and

maintenance.

features and functions

 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.

 IEEE 802.3at/af standard for PoE ports.

 Network topology management, alarm push, network health monitor.

 6 KV surge protection for PoE ports.

 AF/AT camera can reach up to 300 m in extend mode.

 PoE watchdog to auto detect and restart the cameras that do not respond.

 Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

 Specification

Model DS-3E1526P-SI

PoE Power

Supply

PoE Standard IEEE 802.3af, IEEE 802.3at

PoE Power Pin

End-span: 1/2(-), 3/6(+)

Mid-span: 4/5(+), 7/8(-)

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port PoE: Ports 1 to 24

Max. Port Power Port 1 to 24: 30 W

PoE Power Budget 370 W

Network

Parameters

Port Number 24 × gigabit PoE port, and 2 × gigabit fiber optical port

Port Type RJ45 port, full duplex, MDI/MDI-X adaptive

Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z

Forwarding Mode Store-and-forward switching

Working Mode

Standard mode (default)

Extend mode

MAC Address Table 8 K

Switching Capacity 52 Gbps

Packet Forwarding Rate 36.688 Mpps

Internal Cache 4.1 Mbits

Software

Function

Device Maintenance

Remote upgrade, default parameters recovery, logs viewing, basic

network parameters configuration, import and export configuration,

time sync

Port Configuration Port rate configuration, flow control, and ports enabling

Long Range Up to 300 m transmission

PoE Configuration

PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do

not respond.

PoE enabling: Support

Port Rate-Limiting Rate-limiting for ingress and egress ports

Storm Control Storm control of unknown unicast, multicast and broadcast

Port Mirroring Support

Link Aggregation Static link aggregation supported

Port Isolation Ports in isolation group cannot communicate with each other.

QoS WRR and SP scheduling and port priority

VLAN 4094 VLANs

STP STP and RSTP protocols

SNMP

SNMPv1 and SNMPv2c supported for obtaining node information of the

system and interfaces

LLDP

LLDP protocol supported for port configuration, global configuration and

neighbor discovery

General

Shell Metal material

Net Weight 2.975 kg (6.56 lb)

Gross Weight 3.535 kg (7.79 lb)

Dimension (W × H × D) 440 mm × 44 mm × 221 mm (17.32” × 1.73”× 8.7”)

Operating Temperature -10°C to 55°C (14°F to 131°F)

Storage Temperature -40°C to 85°C (-40°F to 185°F)

Operating Humidity 5% to 95% (no condensation)

Relative Humidity 5% to 95% (no condensation)

Power Supply 100 to 240 VAC, 50/60 Hz, Max. 6.5 A

Max. Power Consumption 400 W

Power Consumption in Idle 30 W

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC

61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1:

2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32:

2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC

62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009

+A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)

No.1907/2006)
