CPU Specifications
Total Cores:12
# of Performance-cores: 8
# of Efficient-cores: 4
Total Threads: 20
Max Turbo Frequency: 4.90 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡4.90 GHz
Performance-core Max Turbo Frequency: 4.80 GHz
Efficient-core Max Turbo Frequency: 3.60 GHz
Performance-core Base Frequency: 2.10 GHz
Efficient-core Base Frequency: 1.60 GHz
Cache: 25 MB Intel® Smart Cache
Total L2 Cache: 12 MB
Processor Base Power: 65 W
Maximum Turbo Power: 180 W
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s
ECC Memory Supported ‡Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.50 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported ‡ 4
Device ID: 0x4680
OpenCL* Support: 2.1
Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel® Optane™ Memory Supported ‡: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 ‡Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel vPro® Platform Eligibility ‡ Yes
Intel vPro® Enterprise Platform Eligibility ‡ Yes
Intel vPro® Essentials Platform Eligibility ‡ Yes
Intel® Threat Detection Technology (TDT) Yes
Intel® Active Management Technology (AMT) ‡ Yes
Intel® Standard Manageability (ISM) ‡ Yes
Intel® One-Click Recovery ‡ Yes
Intel® Hardware Shield Eligibility ‡ Yes
Intel® AES New Instructions Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® Total Memory Encryption : Yes
Intel® Stable IT Platform Program (SIPP) :es
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ Yes

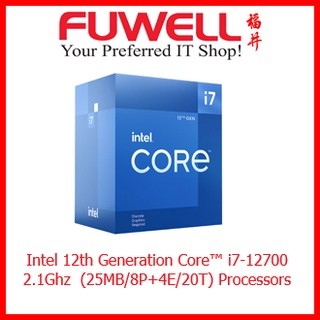

Seller SKU: | Intel 12th Generation Core™ i7-12700 2.1Ghz |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Aug 4, 2022 |
CPU Specifications
Total Cores:12
# of Performance-cores: 8
# of Efficient-cores: 4
Total Threads: 20
Max Turbo Frequency: 4.90 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡4.90 GHz
Performance-core Max Turbo Frequency: 4.80 GHz
Efficient-core Max Turbo Frequency: 3.60 GHz
Performance-core Base Frequency: 2.10 GHz
Efficient-core Base Frequency: 1.60 GHz
Cache: 25 MB Intel® Smart Cache
Total L2 Cache: 12 MB
Processor Base Power: 65 W
Maximum Turbo Power: 180 W
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s
ECC Memory Supported ‡Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.50 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units: 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support: 12
OpenGL* Support: 4.5
Multi-Format Codec Engines: 2
Intel® Quick Sync Video: Yes
Intel® Clear Video HD Technology: Yes
# of Displays Supported ‡ 4
Device ID: 0x4680
OpenCL* Support: 2.1
Expansion Options
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20
Thermal Solution Specification
PCG 2020C
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator: 3.0
Intel® Thread Director: Yes
Intel® Deep Learning Boost (Intel® DL Boost): Yes
Intel® Optane™ Memory Supported ‡: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 ‡Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel vPro® Platform Eligibility ‡ Yes
Intel vPro® Enterprise Platform Eligibility ‡ Yes
Intel vPro® Essentials Platform Eligibility ‡ Yes
Intel® Threat Detection Technology (TDT) Yes
Intel® Active Management Technology (AMT) ‡ Yes
Intel® Standard Manageability (ISM) ‡ Yes
Intel® One-Click Recovery ‡ Yes
Intel® Hardware Shield Eligibility ‡ Yes
Intel® AES New Instructions Yes
Secure Key : Yes
Intel® OS Guard : Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® Total Memory Encryption - Multi Key : Yes
Intel® Total Memory Encryption : Yes
Intel® Stable IT Platform Program (SIPP) :es
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ Yes
No reviews
