SPECIFICATIONS

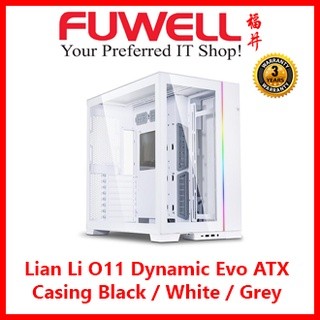

PRODUCT NAME O11D EVO

MODEL O11DEX O11DEW O11DEG

COLOR Black White Harbor Grey

DIMENSION (D)465mm × (W)285mm × (H)459mm

MATERIAL 4mm Aluminum

4mm Tempered Glass

1mm Steel Structure

MOTHERBOARD SUPPORT E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU SUPPORT 220mm

FAN SUPPORT Top: 120mm × 3 or 140mm × 2

Side: 120mm × 3 or 140mm × 2

Bottom: 120mm × 3 or 140mm × 2

Rear: 120mm × 1

On Drive Cage: 60mm × 1

RADIATOR SUPPORT Top: 360mm × 1 or 280mm × 1

*Total max thickness: 87.5mm

Side: 360mm × 1 or 280mm × 1

*Inner scenario total max thickness:

83mm(120mm fan on top and bottom)

63mm(140mm fan on top and bottom)

*Outer scenario total max. thickness：

120mm(120mm fan on top and bottom)

100mm(140mm fan on top and bottom)

Bottom: 360mm × 1

*Total max thickness: 87.5mm

DRIVE SUPPORT Bottom：2.5” SSD × 4 or 3.5” HDD × 2

Side：2.5” SSD × 4 or 3.5” HDD × 2

Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1

Cable Management Bar：2.5” SSD × 2

*Only 9 sets of 2.5” SSD mounting pads are provided

GPU LENGTH CLEARANCE 422 mm

CPU HEIGHT CLEARANCE 167 mm

EXPANSION SLOTS 8

I/O PORTS 2 × USB 3.0

1 × USB 3.1 TYPE-C,

1 × HD AUDIO/ MIC

LED Color and Mode button

Reset Button

Power Button

DUST FILTER Bottom × 1

WARRANTY 1 year
