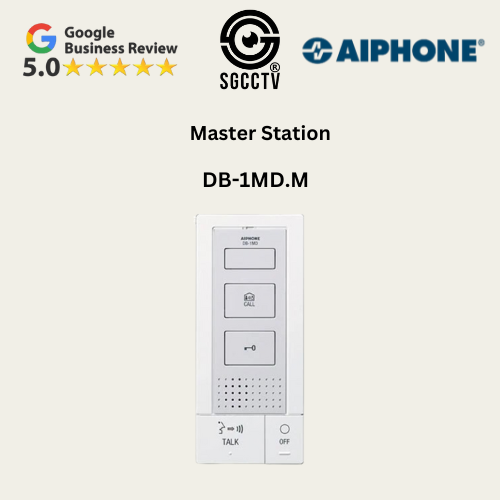

MASTER STATION DB-1MD.M

Introducing the DB-1MD Open Voice Master Station

Elevate your communication system with the DB-1MD Open Voice Master Station from the DB Series. This versatile station is designed for both residential and office environments, providing seamless interaction and control.

Key Features:

• All Call Functionality: Easily communicate between all stations in the same residence or office with a simple press of a button.

• External Device Control: An option button allows for the control of external devices (N/O dry contact, AC/DC 24V, 1.6A Max), enhancing system versatility.

• Adjustable Call Tone: Control the call tone volume with a convenient LED mute indicator, ensuring you’re never caught off guard.

• Receive Volume Control: Tailor the receive volume to your preference for optimal clarity during conversations.

• Optional Call Extension: Connect an optional Call Extension Speaker (IER-2) for enhanced audio coverage.

• External Signaling Capability: Signal third-party bells or lights using the RY-ES, providing additional notification options.

• Door Release Button: Easily unlock doors with the built-in button, powered directly by the door station.

Performance Specs:

• Communication Options: Supports hands-free (VOX) or push-to-talk (simplex) modes for flexible communication.

Wire Type:

• Entrance Station to Tenant Master Station: Use Aiphone #871802 (2-cond., low cap, PE insulation, solid, non-shielded).

• Tenant Master Station to Tenant Sub Station: Use Aiphone #871804 (4-cond., low cap, PE insulation, solid, non-shielded).

• Between Tenant Sub Stations: Use Aiphone #822206 or #871804 (4-cond. + 2-cond. when sharing power).

Distance Capabilities:

• Power Supply to Tenant Master Station: 180 feet (22AWG) or 510 feet (18AWG).

• Tenant Master Station to Farthest Tenant Sub Station: 330 feet.

• Power Supply to Entrance Station (cumulative): 360 feet (22AWG) or 1,020 feet (18AWG).

The DB-1MD Open Voice Master Station offers a reliable and feature-rich solution for enhancing your intercom system, ensuring efficient communication and control throughout your space. Upgrade your setup today!
