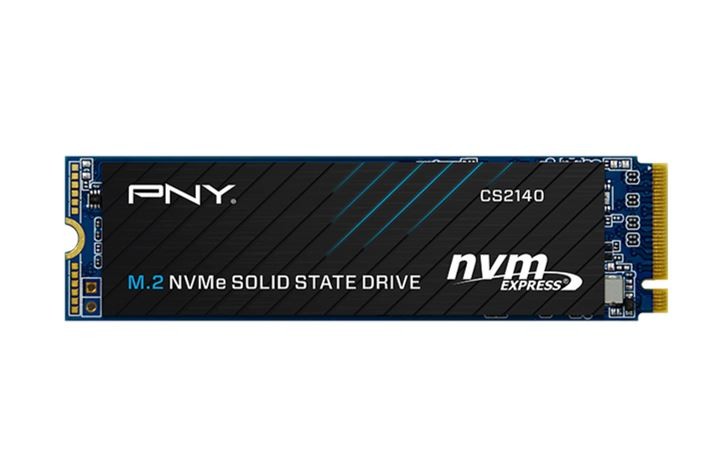

PNY CS2140 500GB NVMe SSD Gen4x4 M.2 3600MB/s 2300MB/s R/W 200TBW 1.5M hrs MTBF 5yrs wty

• An excellent choice for a mainstream performance upgrade to Gen4
technology in an NVMe enabled desktop or laptop computer
• High performance SSD with up to 6 times the performance as compared to SATA based SSDs

FEATURES AND BENEFITS
• Sequential Read of up to 3,600 MB/s and Write of up to 3,200 MB/s
• Faster boot up, quicker application launch, and improved overall system performance
• Reliable storage
• Low power consumption, cool and quiet operation
• Backed by a 5 year limited warranty or TBW* & live US tech support

PRODUCT SPECIFICATIONS
NAND Components 3D Flash Memory
Interface PCIe Gen4 x4
Form Factor M.2 2280
PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
500GB 3,600 MB/s (Read), 2,300 MB/s
PCIe Power Management APST, ASPM, L1.2
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Certifications BSMI, CE, FCC, KCC,
Mean Time Between
Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity
Check) ECC Algorithm
Product Health Monitoring Self-Monitoring, Analysis and
Reporting Technology (S.M.A.R.T)
Full End-to-End Data
path protection Supported
Encryption AES256
COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4
ADDITIONAL FEATURES
Performance Optimization TRIM (requires OS support)
PRODUCT INFORMATION
Service & Support 5-Year Limited Warranty or TBW*

Technical Details:
