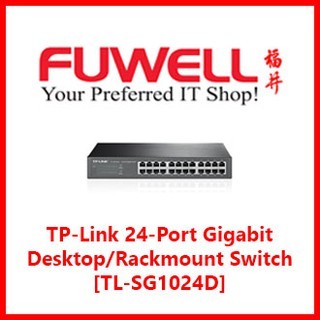

TP-Link 24-Port Gigabit Desktop/Rackmount Switch [TL-SG1024D]

24 10/100/1000Mbps ports

Innovative energy-efficient technology saves power consumption

Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

Plug & play design

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Physical Security Lock No

Power Supply 100-240VAC, 50/60Hz

Power Consumption Maximum: 13.1W (220V/50Hz)

Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)

Mounting Rack Mountable

Max Power Consumption 13.62W(220V/50Hz)

Max Heat Dissipation 46.44BTU/h

PERFORMANCE

Switching Capacity 48Gbps

Packet Forwarding Rate 35.7Mpps

MAC Address Table 8K

Jumbo Frame 10KB

Green Technology Yes

Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents 24-Port Gigabit Desktop/Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
