Optics
Compression
Network
Structure
Camera
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 100000s |
Adjustment angle | Pan: 3° to 360° |
S/N | >52dB |
WDR | DWDR |
Video
Max. Resolution | 2591*1944 |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps |
Video Bit Rate | 128 Kbps~16 Mbps |
H.264 code profile | Baseline profile, Main profile |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 2 areas |
Motion Detection | Up to 4 areas |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180° |
Dewarping | N/A |
HLC | Supported |
BLC | Supported |
Network
Protocls | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||
Compatible Integration | ONVIF (Profile S, Profile T), API | ||
Client | EZStation, EZView, EZLive | ||
Web Browser |
|
Interface
Network | 10/100M Base-TX Ethernet |
Certifications
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
General
Power |
| ||
Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | ||
Weight | 0.35kg (0.77lb) | ||
Material | Metal + plastic | ||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
Surge Protection | 2KV | ||
Ingress Protection | IP67 | ||
Vandal Resistant | IK10 |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
Brand: | UNV |
---|---|

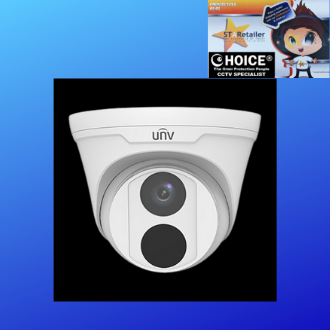

Model number: | IPC3615LR3-PF28-D |
Seller SKU: | CC81RTIPC3615LR3-PF28-D |
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Mar 8, 2022 |
Optics
Compression
Network
Structure
Camera
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
Minimum Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 100000s |
Adjustment angle | Pan: 3° to 360° |
S/N | >52dB |
WDR | DWDR |
Video
Max. Resolution | 2591*1944 |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps |
Video Bit Rate | 128 Kbps~16 Mbps |
H.264 code profile | Baseline profile, Main profile |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 2 areas |
Motion Detection | Up to 4 areas |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180° |
Dewarping | N/A |
HLC | Supported |
BLC | Supported |
Network
Protocls | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||
Compatible Integration | ONVIF (Profile S, Profile T), API | ||
Client | EZStation, EZView, EZLive | ||
Web Browser |
|
Interface
Network | 10/100M Base-TX Ethernet |
Certifications
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
General
Power |
| ||
Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | ||
Weight | 0.35kg (0.77lb) | ||
Material | Metal + plastic | ||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
Surge Protection | 2KV | ||
Ingress Protection | IP67 | ||
Vandal Resistant | IK10 |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
