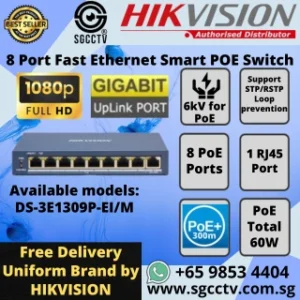

Hikvision DS-3E1309P-EI/M: 8-Port Fast Ethernet Smart PoE Switch for Efficient CCTV Camera Integration in Singapore

The Hikvision DS-3E1309P-EI/M is a compact and powerful 8-port Fast Ethernet Smart PoE Switch designed to provide seamless PoE (Power over Ethernet) functionality for CCTV surveillance systems in Singapore. With its smart management features and robust PoE power delivery, this switch is an ideal solution for businesses and home surveillance networks requiring reliable performance and extended coverage.

Key Features of the Hikvision DS-3E1309P-EI/M:

1. 8 × 10/100 Mbps PoE Ports + Gigabit Connectivity
   The DS-3E1309P-EI/M features 8 PoE-enabled ports (10/100 Mbps) and 1 Gigabit RJ45 port for high-speed data transfer. The Gigabit port ensures that devices connected to the switch experience minimal delays and maximum bandwidth.
2. Total PoE Power Budget of 60W
   With a PoE power budget of 60W, the DS-3E1309P-EI/M can power several PoE-enabled devices such as security cameras, IP phones, or access points, eliminating the need for additional power adapters.
3. Long-Range PoE Transmission (Up to 300m)
   The switch supports PoE transmission up to 300 meters on ports 1 to 8, providing greater flexibility in camera installation locations. This feature ensures that devices in hard-to-reach areas can be powered and connected efficiently.
4. PoE Watchdog for Automated Camera Monitoring
   The PoE watchdog function automatically detects and restarts any cameras that fail to respond, reducing downtime and manual intervention, which is crucial for maintaining consistent surveillance coverage.
5. Surge Protection for Enhanced Durability
   The 6 kV surge protection ensures that the DS-3E1309P-EI/M is resilient against electrical surges, helping to protect your devices and maintain network stability.
6. Network Management and Security Features
   The switch supports 802.1Q VLAN, PoE watchdog, Loop Prevention (STP/RSTP), Cable Detection, and more. These features enable easy network management, prevent network loops, and allow for the detection of faults in network cables.
7. Compact, Fan-Free Design for Silent Operation
   With its metal housing and fan-free design, the DS-3E1309P-EI/M offers reliable performance in a compact form factor, perfect for desk or wall mounting installations in small to medium-sized surveillance systems.

Benefits of the Hikvision DS-3E1309P-EI/M for CCTV Systems:

• Efficient Power and Data Distribution: The switch simplifies CCTV camera installations by providing both power and data over a single Ethernet cable.
• Flexible Camera Placement: With long-range PoE transmission (up to 300 meters), cameras can be installed in distant areas without the need for additional power cables.
• Automatic Camera Restart: The PoE Watchdog feature minimizes downtime by automatically detecting and restarting cameras that fail to respond.
• Compact Design: The fan-free design ensures silent operation, making this switch ideal for installations where noise reduction is a priority.
• Advanced Security Features: VLAN support and port isolation improve network security by segmenting traffic and controlling communications between devices.

Hikvision DS-3E1309P-EI/M for Small to Medium Installations:

This switch is perfectly suited for small to medium-sized CCTV camera systems, offering reliable performance, simple installation, and efficient power management. Whether you're setting up a surveillance system for a small office, retail store, or home, the DS-3E1309P-EI/M delivers the necessary features for optimal network performance and camera uptime.

Specifications at a Glance:

• Ports: 8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port
• PoE Power Budget: 60W
• PoE Transmission Distance: Up to 300 meters
• Surge Protection: 6 kV
• Software Features: VLAN, PoE Watchdog, Loop Prevention, Cable Detection
• Dimensions: 170 mm × 27.6 mm × 93.1 mm (6.69'' × 1.09'' × 3.67'')
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Power Supply: 54VDC, 1.2A
• Max. Power Consumption: 65W
• Power Consumption in Idle: 5W

Contact Us for Sales Inquiries, Installation, and Support:

For more information or to request a quote on the Hikvision DS-3E1309P-EI/M, don't hesitate to contact us. We provide professional installation, support, and troubleshooting for PoE switches and CCTV camera systems.

• WhatsApp: +65 98534404
• Email: enquiry@choicecycle.com.sg

Our expert team is ready to assist with your surveillance and network needs.

Conclusion:

The Hikvision DS-3E1309P-EI/M is a compact, feature-packed 8-Port Fast Ethernet Smart PoE Switch that offers high performance, easy integration, and long-range PoE transmission, making it an excellent choice for businesses, homes, and small to medium-sized installations. With its PoE watchdog, surge protection, and advanced network features, this switch ensures smooth, reliable CCTV operation. Reach out today to secure your network with Hikvision!
