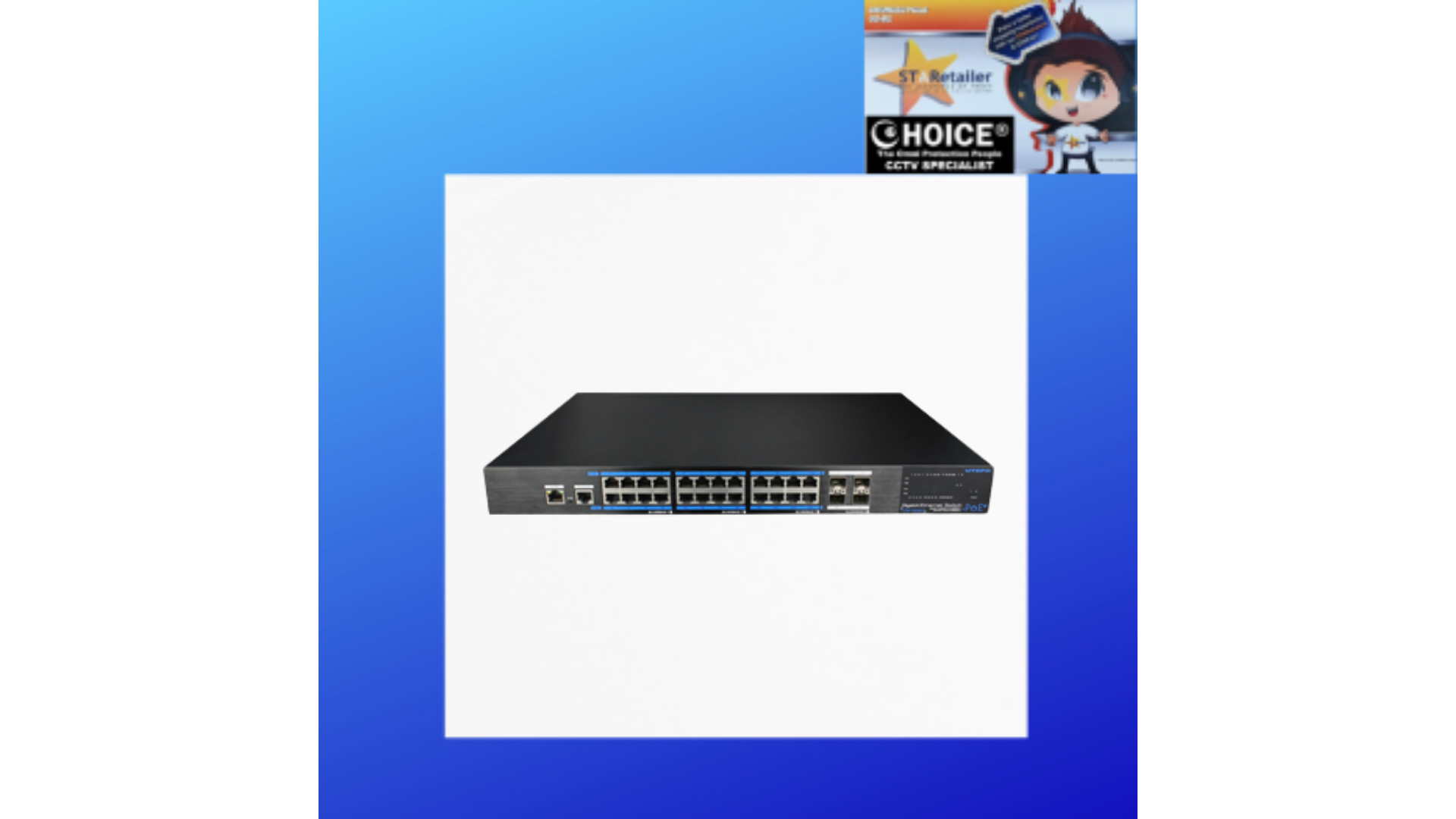

24 Ports PoE Full Gigabit Managed Ethernet SwitchUTP7524GE
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572enquiry@choicecycle.com.sg
Frequently bought together:
24 Ports PoE Full Gigabit Managed Ethernet Switch UTP7524GE-POE-4GF
The UTP7524GE-POE-4GF is an L2-managed PoE switch, which provides 24* Gigabit PoE downlink ports, 4* Gigabit SFP uplink ports. The switch complies with IEEE 802.3 af/at (PoE+), the total PoE power budget can be up to 390W which is adequate to power supply for HD IP camera and Gigabit wireless access point, makes it an ideal choice for HD security surveillance network and high-speed wireless network construction projects.
Item | UTP7524GE-POE-4GF | ||
Copper Ports | 24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X) | ||
SFP Ports | 4*1000 Base-X SFP(Mini-GBIC) | ||
Console Port | 1*RJ45-R232 serial port(115200,8,N,1) | ||
OOB Port | 1*10/100Base-TX RJ45(only used to Web management) | ||
default IP:192.168.1.200 name:admin password:admin) | |||
Init button | Short press:restart; | ||
>5s Press: restore factory settings. | |||
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X | ||
Exchange Capacity | 56Gbps / non-blocking | ||
Packet Forwarding Rate | 41.7Mpps | ||
Operation Method | Store and Forward | ||
Buffer Memory | 12Mbit | ||
MAC Address Table | 16k MAC address table with auto learning function | ||
Jumbo Frame | 10k bytes | ||
PoE Standard | IEEE802.3af 15.4W, IEEE802.3at 30W | ||
PSE Type | End-span | ||
Power Pin Assignment | 1/2(+)，3/6(-) | ||
Power Supply | Internal power adapter | ||
AC 100-240V 50/60Hz | |||
Power Consumption | <420W (PoE consumption) | ||
PoE budget: 390W | |||
Lightning protection | 6KV | ||
Execute：IEC61000-4-5 | |||
ESD | 6KV: Contact discharge | ||
8KV: Air discharge | |||
Execute: IEC61000-4-2 | |||
Work temperature | -10-50℃ | ||
Storage temperature | -40-85℃ | ||
Humidity | 5%-95%(Non-condensing) | ||
Dimension（L×W×H） | 442mm×320mm×44.5mm | ||
Weight | 4.35kg | ||
Certificates | CE, FCC, ROHS | ||
Software Features | |||
Interface Management | Support port isolation | ||
Support port rate settings | |||
Support port storm suppression | |||
Support IEEE802.3x flow control | |||
Support port traffic statistics | |||
Support auto negotiation | |||
Logic Interface | Loopback detection | ||
VLAN | VLAN Partition | VLAN based on port, VLAN based on MAC | |
Private VLAN, multicast VLAN | |||
VLAN Communication | VLAN intercommunication | ||
VLAN isolation | |||
VLAN Port Type | Access, Trunk, GVRP, QinQ | ||
MAC | Static MAC | ||
MAC Black hole | |||
Dynamic MAC | MAC address aging configuration | ||
MAC address learning limit | |||
Multicast MAC | Static Multicast MAC address | ||
Link Aggregation | Dynamic Aggregation | ||
Static Aggregation | |||
Loopback Protection | STP/RSTP, ERPS v1，v2（G.8032）, y.1731 CCM | ||
IP Features | IP address : Classful IP address, classless IP address | ||
ARP | |||
IPv6 address configuration | |||
DHCP | Host DHCP service | DHCP pool | |
DHCP relay | DHCP snooping option 82 | ||
IGMP Features | IGMP snooping | ||
GMRP | |||
QoS | Support 802.1p CoS/DSCP priority | ||
Support 8-Level priority management for switching | |||
Support WRR, PQ, DRR, WFQ, ACL based on ports and queues | |||
PoE Management | Support total power consumption control | ||
Support PoE ON/OFF | |||
Support single port 30W max. Power change and port output priority | |||
Safety Character | 802.1x | IEEE 802.1X Port/MAC based authentication, Radius | |
Support MAC address auto-learning, aging& filter | |||
Support port isolation, port speed-limited | |||
ACL | Basic ACL, advanced ACL | ||
System Log | Local system log management | ||
Remote System Log Management | |||
Mirroring | Port mirroring | ||
System Management& Maintenance | Support WEB-based management, including HTTP and HTTPS | ||
Support CLI-based management | |||
Configuration through Telnet, SSH V2 | |||
Tracert v4 | |||
SNMPv1/v2/v3 management | |||
SNMP Trap | |||
Support TFTP-client | |||
NTP/SNTP | |||
Link layer discovery protocol (LLDP) | |||
IPv6 | Dual IPv4/IPv6 stack | ||
Ping IPv6, WEB IPv6 | |||
ICMPv6 | |||
DHCPv6 snooping, DHCPv6 client | |||
IPv6 ACL, IPv6 SSH | |||
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Ports PoE Managed Ethernet Switch UTP7524GE-POE-4
Technical Details:
| Brand: | UTEPO |
|---|---|
| Model number: | UTP7524GE-POE-4GF |
| Part Number: | UTP7524GE-POE-4GF |
| Seller SKU: | CC81RTUTP7524GE-POE-4GF |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Mar 19, 2022 |
24 Ports PoE Full Gigabit Managed Ethernet Switch UTP7524GE-POE-4GF
The UTP7524GE-POE-4GF is an L2-managed PoE switch, which provides 24* Gigabit PoE downlink ports, 4* Gigabit SFP uplink ports. The switch complies with IEEE 802.3 af/at (PoE+), the total PoE power budget can be up to 390W which is adequate to power supply for HD IP camera and Gigabit wireless access point, makes it an ideal choice for HD security surveillance network and high-speed wireless network construction projects.
Item | UTP7524GE-POE-4GF | ||
Copper Ports | 24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X) | ||
SFP Ports | 4*1000 Base-X SFP(Mini-GBIC) | ||
Console Port | 1*RJ45-R232 serial port(115200,8,N,1) | ||
OOB Port | 1*10/100Base-TX RJ45(only used to Web management) | ||
default IP:192.168.1.200 name:admin password:admin) | |||
Init button | Short press:restart; | ||
>5s Press: restore factory settings. | |||
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X | ||
Exchange Capacity | 56Gbps / non-blocking | ||
Packet Forwarding Rate | 41.7Mpps | ||
Operation Method | Store and Forward | ||
Buffer Memory | 12Mbit | ||
MAC Address Table | 16k MAC address table with auto learning function | ||
Jumbo Frame | 10k bytes | ||
PoE Standard | IEEE802.3af 15.4W, IEEE802.3at 30W | ||
PSE Type | End-span | ||
Power Pin Assignment | 1/2(+)，3/6(-) | ||
Power Supply | Internal power adapter | ||
AC 100-240V 50/60Hz | |||
Power Consumption | <420W (PoE consumption) | ||
PoE budget: 390W | |||
Lightning protection | 6KV | ||
Execute：IEC61000-4-5 | |||
ESD | 6KV: Contact discharge | ||
8KV: Air discharge | |||
Execute: IEC61000-4-2 | |||
Work temperature | -10-50℃ | ||
Storage temperature | -40-85℃ | ||
Humidity | 5%-95%(Non-condensing) | ||
Dimension（L×W×H） | 442mm×320mm×44.5mm | ||
Weight | 4.35kg | ||
Certificates | CE, FCC, ROHS | ||
Software Features | |||
Interface Management | Support port isolation | ||
Support port rate settings | |||
Support port storm suppression | |||
Support IEEE802.3x flow control | |||
Support port traffic statistics | |||
Support auto negotiation | |||
Logic Interface | Loopback detection | ||
VLAN | VLAN Partition | VLAN based on port, VLAN based on MAC | |
Private VLAN, multicast VLAN | |||
VLAN Communication | VLAN intercommunication | ||
VLAN isolation | |||
VLAN Port Type | Access, Trunk, GVRP, QinQ | ||
MAC | Static MAC | ||
MAC Black hole | |||
Dynamic MAC | MAC address aging configuration | ||
MAC address learning limit | |||
Multicast MAC | Static Multicast MAC address | ||
Link Aggregation | Dynamic Aggregation | ||
Static Aggregation | |||
Loopback Protection | STP/RSTP, ERPS v1，v2（G.8032）, y.1731 CCM | ||
IP Features | IP address : Classful IP address, classless IP address | ||
ARP | |||
IPv6 address configuration | |||
DHCP | Host DHCP service | DHCP pool | |
DHCP relay | DHCP snooping option 82 | ||
IGMP Features | IGMP snooping | ||
GMRP | |||
QoS | Support 802.1p CoS/DSCP priority | ||
Support 8-Level priority management for switching | |||
Support WRR, PQ, DRR, WFQ, ACL based on ports and queues | |||
PoE Management | Support total power consumption control | ||
Support PoE ON/OFF | |||
Support single port 30W max. Power change and port output priority | |||
Safety Character | 802.1x | IEEE 802.1X Port/MAC based authentication, Radius | |
Support MAC address auto-learning, aging& filter | |||
Support port isolation, port speed-limited | |||
ACL | Basic ACL, advanced ACL | ||
System Log | Local system log management | ||
Remote System Log Management | |||
Mirroring | Port mirroring | ||
System Management& Maintenance | Support WEB-based management, including HTTP and HTTPS | ||
Support CLI-based management | |||
Configuration through Telnet, SSH V2 | |||
Tracert v4 | |||
SNMPv1/v2/v3 management | |||
SNMP Trap | |||
Support TFTP-client | |||
NTP/SNTP | |||
Link layer discovery protocol (LLDP) | |||
IPv6 | Dual IPv4/IPv6 stack | ||
Ping IPv6, WEB IPv6 | |||
ICMPv6 | |||
DHCPv6 snooping, DHCPv6 client | |||
IPv6 ACL, IPv6 SSH | |||
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
24 Ports PoE Managed Ethernet Switch UTP7524GE-POE-4
