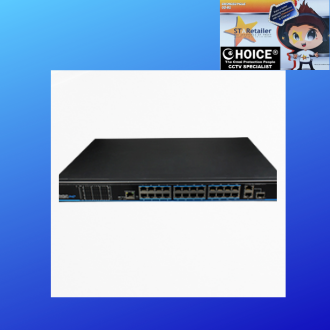

24 Ports PoE Fast Unmanaged Ethernet Switch UTP1-SW24-TP420
The 24 ports PoE switch is an unmanaged PoE Ethernet switch along with 24 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 390 watts. It supports web-based PoE management and real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.
Model | UTP1-SW24-TP420 |
Downstream Ports | 24* 10/100Base-TX( PoE) |
Uplink Ports | 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo) |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X |
Switching Capacity | 8.8Gbps |
Packet Forwarding Rate | 6.55Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 2.75M |
MAC Address Table | 4K |
PoE Standard | 802.3af/at(PSE) End-span |
One-key CCTV mode | All the downlink ports can only communicate with uplink ports. Retrain the network storm to 3Mbps. Extend transmission distance of the downlink ports to 250m max. |
PoE Line Pair | 1/2(+)，3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 390 watts max |
PoE Management | Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output |
Surge Immunity | 6KV Execute: IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute: IEC61000-4-2 | |
Input Voltage | 100~240V AC, 50/60Hz |
Power Consumption | ＜420W(Including PoE) |
Operating Temperature | -10℃~50℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension（L×W×H） | 442mm×207mm×44.5mm |
Weight | 2.79kg |
Certification | CE, FCC, ROHS |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
