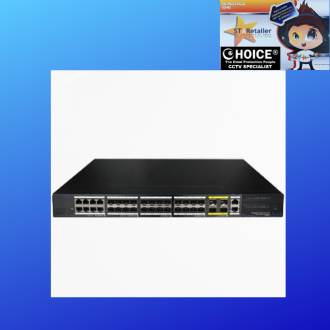

UTP7624GS-L3 is 24+4 Ports full Gigabit layer 2 managed modular Ethernet switch. 1-24 downlink ports support Ethernet or optical fiber ports optional (8 ports Gigabit Ethernet & 8 ports Gigabit SFP modules). It is widely used in security surveillance, network engineering projects and so on.
Model | UTP7624GS-L3 |
Gigabit SFP Slots | 24*1000 Base-X SFP(Mini-GBIC) |
Gigabit copper Ports | 8* 10/100/1000Base-T RJ45(Auto-MDI/MDI-X) combo |
10G SFP+ Slots | 4*1000/10G Base-X SFP+ |
Console Port | 1*RJ45-R232 serial port(115200,8,N,1) |
OOB port | 1*10/100Base-TX RJ45(only to web management) |
Default IP:192.168.1.200 name:admin password:admin | |
Init Key | Short press restart |
>5s press recovery to default | |
Standard and Protocols | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
Switching Capacity | 128Gbps / non-blocking |
Packet Forwarding Rate | 95.2Mpps@64 bytes |
Forwarding Modes | Store-and-Forward |
Packet Buffer | 12Mbit |
MAC Address Table | 16K |
Jumbo Frame | 9K bytes |
Surge Immunity | 6KV Execute: IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute: IEC61000-4-2 | |
Power Module | Input:100~240VAC 50/60Hz(auto-sensing) Output:DC12V150W |
Support redundant duplex power module(1 module inside default,another module bought extra) | |
Power Consumption | 60W |
Operating Temperature | -10-50℃ |
Storage Temperature | -40-85℃ |
Humidity | 5%-95%(non-condensing) |
Dimension(L×W×H) | 442mm×320mm×44.5mm |
Weight | 5.65kg |
Certification | CE, FCC, ROHS |
Software Features | |
Ports Management | Support port enabling and disabling |
Support port speed settings | |
Support port full-duplex mode | |
Support IEEE802.3x flow control | |
Support Jumbo Frame | |
Support port name modification | |
VLAN | Support of 4K VLAN |
Support 802.1Q VLAN protocol | |
Support QINQ | |
Support GVRP dynamic VLAN registration | |
Support VLAN based on port\protocol\MAC | |
QoS | Support COS classification base on 802.1p |
Support QoS base on DSCP | |
Support 8 priority queues | |
Queue scheduling: SP, WRR, SP+WRR | |
Support 802.1p CoS/DSCP priority | |
Multi-brocast | Support SNMPV1 / V2 / V3 protocols |
Support IGMP Snooping | |
Support MLD-snooping | |
Security Feature | Supports IP, MAC, port, VLAN binding combinations |
Support MAC address auto-learning, aging and filtration | |
Support port isolation, port speed limit | |
Support STP \ RSTP \MSTP,Fast-Ring | |
Support 5 groups of link aggregation | |
Support LLDP ,Smart-Link ,DLDP | |
Support 802.1X | |
ACL | Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number |
Support time-range management | |
System Management | Web-based GUI and CLI management |
Support FTP / TFTP / HTTP load upgrade | |
Support traffic statistics | |
Support MAC address table query | |
Support IP address, DNS server modifications | |
Support user name and password modification | |
Support for history, log management | |
Support System Configuration Backup | |
Support to recover the default factory settings on reboot | |
L3 Management | Support IPV4 static route setup |
Support RIP V1/2 on IPV4 | |
Support OSPF V1/V2 | |
Support static ARP Add,delete,burn-in time sutup/check | |
Support static NDAdd,delete,burn-in time sutup/check | |
Support VRRP V1/2/3 virtual redundant route protocol | |
Support group-broadcasting PIM,IGMP V1/V2/V3,MLD(IPV4) | |
Support DHCP client,server | |
Support relay repeater,DHCP snooping | |
Support duplex transfer check mechanism |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
Seller SKU: | CC81RTUTP7624GS-L3 |
---|---|
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Apr 18, 2022 |
