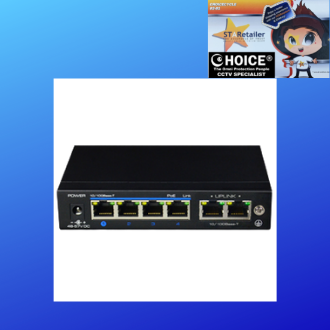

4 ports PoE Ethernet Switch is security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability. The product supports one key CCTV model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Power | Power Supply | Power Adaptor | |||
Voltage Range | DC48V~54V | ||||
Consumption | <5W | ||||
Ethernet | Speed | 1-4 port: Default:10/100Mbps. CCTV: 10Mbps;UPLINK:100Mbps | |||
Transmission Distance | 1-4 port: Default:0~100m. CCTV: 0~250m;UPLINK:100m | ||||
Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3af/at | |||
Switching Capacity | 1.0Gbps | ||||
Packet Forwarding Rate | 0.74Mpps | ||||
Packet Buffer | 768K | ||||
MAC Address Table | 2K | ||||
Status Indicator | Power Light | 1pc(Red) | |||
Ethernet Port Light | 2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act | ||||
Surveillance Module Light | 1pcs(Green), green indicates CCTV | ||||
Protection Level | Pulse Group | Level 3 Standard: IEC61000-4-4 | |||
ESD Immunity | 1a Contact Discharge Level 3 1b Air Discharge Level 3Standard: IEC61000-4-2 | ||||
Surge Immunity | 6KV | ||||
Standard: IEC61000-4-5 | |||||
Operating Environment | Operating Temperature | -10℃~55℃ | |||
Storage Temperature | -40℃~85℃ | ||||
Humidity(Non-condensing) | 0~95% | ||||
Mechanical | Dimension(L*W*H) | 135mm×85.6mm×27mm | |||
Out Shell | Galvanized Sheet | ||||
Color | Black | ||||
Weight | 315g | ||||
Power/Distance 54V | Distance | 100m | 150m | 200m | 250m |
Power | 26W | 24W | 23W | 21W |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
Brand: | Utepo |
---|---|
Model number: | UTP3-SW04-TP60 |
Seller SKU: | CC81RTUTP3-SW04-TP60 |
Origin: | Singapore |
Minimum order quantity: | 1 |
Date first listed on Sim Lim Square: | Mar 14, 2022 |
4 ports PoE Ethernet Switch is security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability. The product supports one key CCTV model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Power | Power Supply | Power Adaptor | |||
Voltage Range | DC48V~54V | ||||
Consumption | <5W | ||||
Ethernet | Speed | 1-4 port: Default:10/100Mbps. CCTV: 10Mbps;UPLINK:100Mbps | |||
Transmission Distance | 1-4 port: Default:0~100m. CCTV: 0~250m;UPLINK:100m | ||||
Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3af/at | |||
Switching Capacity | 1.0Gbps | ||||
Packet Forwarding Rate | 0.74Mpps | ||||
Packet Buffer | 768K | ||||
MAC Address Table | 2K | ||||
Status Indicator | Power Light | 1pc(Red) | |||
Ethernet Port Light | 2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act | ||||
Surveillance Module Light | 1pcs(Green), green indicates CCTV | ||||
Protection Level | Pulse Group | Level 3 Standard: IEC61000-4-4 | |||
ESD Immunity | 1a Contact Discharge Level 3 1b Air Discharge Level 3Standard: IEC61000-4-2 | ||||
Surge Immunity | 6KV | ||||
Standard: IEC61000-4-5 | |||||
Operating Environment | Operating Temperature | -10℃~55℃ | |||
Storage Temperature | -40℃~85℃ | ||||
Humidity(Non-condensing) | 0~95% | ||||
Mechanical | Dimension(L*W*H) | 135mm×85.6mm×27mm | |||
Out Shell | Galvanized Sheet | ||||
Color | Black | ||||
Weight | 315g | ||||
Power/Distance 54V | Distance | 100m | 150m | 200m | 250m |
Power | 26W | 24W | 23W | 21W |
1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
Same Packing, Unused within 14 days - Repair, Replace, Return & Refundable.
