8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120

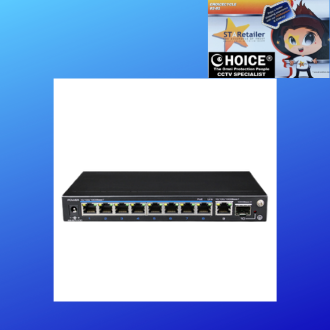

8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.
Downstream Ports | 8* 10/100/1000Base-T (PoE) |
Uplink Ports | 1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X |
Switching Capacity | 20Gbps |
Packet Forwarding Rate | 14Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 1M |
MAC Address Table | 4K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+)，3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 120 watts max |
Surge Immunity | 6KV Execute：IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute：IEC61000-4-2 | |
Input Voltage | DC 48V~57V |
Power Consumption | ＜5W |
Operating Temperature | -10℃~45℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension（L×W×H） | 200mm×101.8mm×27mm |
Weight | 500g |
Certification | CE, FCC, ROHS |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120
Technical Details:
| Brand: | Utepo |
|---|---|
| Model number: | UTP3-GSW0802-TSP120 |
| Seller SKU: | CC81RTUTP3-GSW0802-TSP120 |
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Mar 14, 2022 |
8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120
8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The device supports one-key VLAN which isolates the communication between downlink and uplink ports. It can be widely used in security surveillance, hotels, schools, SMB engineering and other occasions.
Downstream Ports | 8* 10/100/1000Base-T (PoE) |
Uplink Ports | 1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP Port |
Network Standard | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X |
Switching Capacity | 20Gbps |
Packet Forwarding Rate | 14Mpps |
Forwarding Modes | Store and Forward |
Packet Buffer | 1M |
MAC Address Table | 4K |
PoE Standard | 802.3af/at(PSE) |
PoE Power Method | End-span |
PoE Line Pair | 1/2(+)，3/6(-) |
PoE Output Power | 54V DC , 30 watts max |
PoE Budget | 120 watts max |
Surge Immunity | 6KV Execute：IEC61000-4-5 |
ESD Immunity | 6KV Contact discharge |
8KV Air discharge | |
Execute：IEC61000-4-2 | |
Input Voltage | DC 48V~57V |
Power Consumption | ＜5W |
Operating Temperature | -10℃~45℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensing) | 5%-95% |
Dimension（L×W×H） | 200mm×101.8mm×27mm |
Weight | 500g |
Certification | CE, FCC, ROHS |
- Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
- Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
- Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
- Can issue e-Invoice for your accounting. (upon request)
8 Ports Full Gigabit PoE Ethernet Switch UTP3-GSW0802-TSP120
