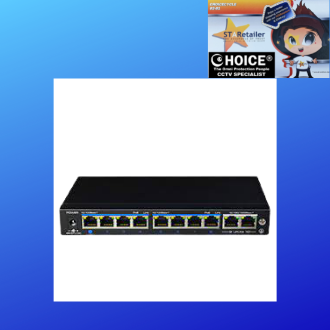

8 Ports PoE Ethernet Switch UTP3-SW08-TP120-A1


The 8 ports PoE Ethernet Switch with 8 downlink PoE ports and double 1000Mbps uplink ports is a security surveillance Ethernet Switch which is applicated in high definition network surveillance and security system. The product fully combines the characteristics of security surveillance, Besides, the 8 downlink PoE ports support IEEE802.3af/at standard, The ESD, 6KV lightning protection and surge protection circuits improve product stability. Also the device supports one key CCTV mode which realizes VLAN function, restrains the network storm, protects the information security, prevents the virus spread and cyber attack, fully satisfies the Ethernet video security surveillance system and Ethernet projects needs.


Downstream Ports

8*10/100Base-TX (PoE)

Uplink Ports

2*10/100/1000Base-T

Network Standard

IEEE802.3 ,  IEEE802.3u,  IEEE802.3ab,  IEEE802.3X

Switching Capacity

5.6Gbps

Packet Forwarding Rate

4.2Mpps

Forwarding Modes

Store and Forward

Packet Buffer

1.5M

MAC Address Table

4K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

44~57V DC ,  30 watts max

PoE Budget

120 watts max

Surge Immunity

6KV    Execute: IEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

Execute:  IEC61000-4-2

Input Voltage

DC 48V~57V

Power Consumption

5W

Operating Temperature

-10℃~55℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

200mm×101.8mm×27mm

Weight

500g

Certification

CE,  FCC,  ROHS



  1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
  2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
  3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
  4. Can issue e-Invoice for your accounting. (upon request)

8 Ports PoE Ethernet Switch UTP3-SW08-TP120-A1


Technical Details:

Brand: Utepo
Model number: UTP3-SW08-TP120-A1
Seller SKU: CC81RTUTP3-SW08-TP120-A1
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Mar 14, 2022
