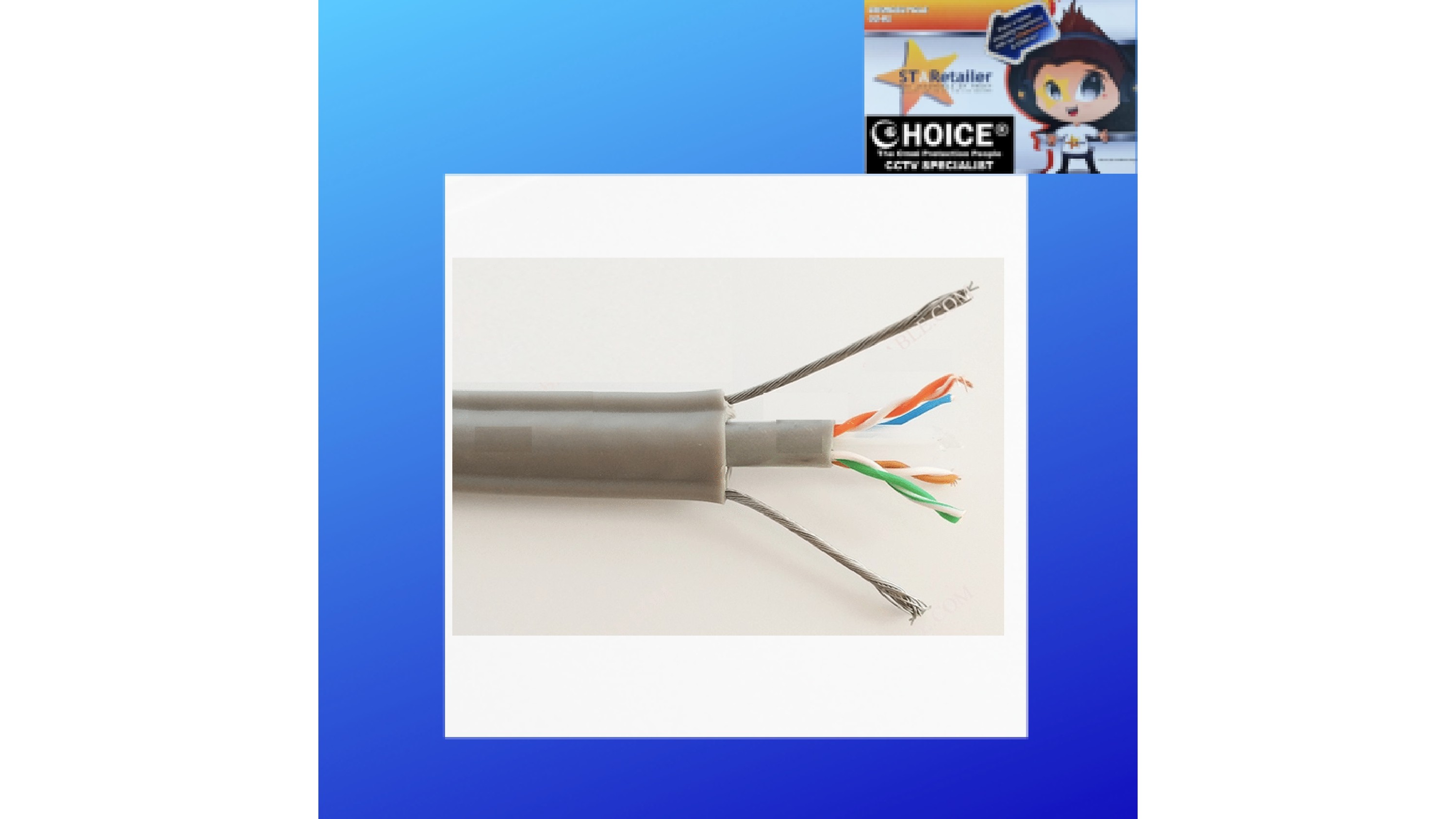

Category 6 Lan Cable CAT6 UTP Lift Travelling Elevator Flat Cable for CCTV Camera Double Steel Wire Protection.

Choicecycle CCTV offer the best Category 6 Lan Cable CAT6 UTP Lift Travelling Elevator Flat Cable for CCTV Camera Double Steel Wire Protection.

100m at $6.50 per meter | 305m at $5.50 per meter | 610m at $4.50 per meter (lead time 6-8 weeks)

100m at $9.50 per meter | 305m at $8.50 per meter | 610m at $7.50 per meter (lead time 1-2 weeks)



Place of Origin:

Shanghai, China,

Brand Name:

Choice

Model Number:

TVVBG

Application:

Heating, Elevator CCTV Camera

Conductor Material:

Tinned copper/ Copper

Conductor Type:

Stranded

Insulation Material:

PE, PE

Keywords:

Marine Cable

Support:

Steel wire

Sheath Color:

Black RL9005 or Grey RAL7001

Package:

Wooden Drum

Sheath Material:

Elastic PVC Compound

Length:

305m or 610m

1. Collection from SGCCTV Choicecycle Sim Lim Square  CCTV SPECIALIST#02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.
2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Conductor

Cable type                                          CAT6 UTP Flat Elevator Cable

Material                                               Stranded plain annealed copper

Construction                                       23 AWG (14/0.14mm)

Product type                                       Twisted pair cable

Insulation

Insulation Material                            High-density polyethylene (HDPE) thermoplastic polymer produced from the monomer ethylene.

DIA of insulation                                  1.1mm

No. of Twisted Pair                              4 Pairs

Filter                                                   Cross Skeleton

Assembling                                         4 Twisted pairs as a group

Inner Jacket

Material                                               PVC

Color                                                   Grey

Steel wire                                            Galvanized steel wire High Corrosion & Rust Resistance

Construction                                        7 / 0.32mm

Outer Jacket

Material                                               Elastic PVC special for elevator cable

Color                                                   Grey

OD                                                      8.0mm * (14±0.5)mm

Marking

According to customers requirement

Electric Characters

Operating voltage                                300 / 500V

Temperature rating                              :-20°C to 90°C

Curve radius                                         ≥ 10 x D

Travel Speed                                        4m/s Max

Packing

a) 305/Roll, Or According to customer requirement

b) Consulting if delivering in other ways

Category 6 Lan Cable CAT6 UTP Lift Travelling Elevator Flat Cable for CCTV Camera
Double Steel Wire Protection
