EBELCO in-swing Door  ZL-600 Door Control Access Control Door Repair Service EM Lock Door Access Entrance Door Digital Lock

EBELCO electromagnetic lock 600 series are known with its excellent holding force 0and remarkable features. The series compliance to UL , CE and PSB Test are manufactured under the highest quality control to achieve the commitment to customer who always satisfied with the maximum quality and reliability.

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

• Applicable for model EM Lock 600 & 600D Series include-RVS series

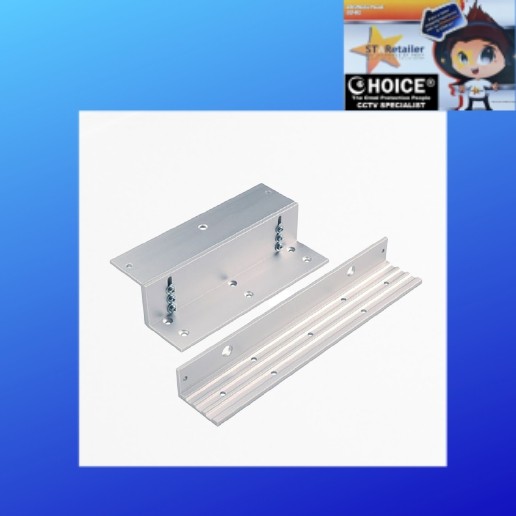

• Optional cover can be purchase separately to be mounted on this ZL-600 Bracket for better security & cosmetic outlook .

More Door Access Choice : EBELCO in-swing Door ZL-600  || EBELCO EM LOCK E600-LED  ||

EBELCO in-swing Door ZL-600 Door Control Access Control Door Repair Service EM Lock Door Access Entrance Door Digital Lock

Feature :

• Dual Voltage Selectable (12 VDC / 24 VDC)

• Low Current Consumption

• Reliable Holding Force

• Hall Effect Sensor Monitoring Output

• Green/Red LED Indication for EM Lock Status

• Durable & Silence Operation

• Cosmeticize Anodized Aluminum Casing

• Surge & Spike Protection PCB

• Anti-Tamper Jam Nuts

• Full Range  of Optional Brackets

• Anti- Residual Magnetism Kick off Button


Specification :

• Voltage Input :12 VDC / 24 VDC

• Current Draw : 12V / 510mA ; 24V / 285mA (±5%)

• Holding Force : Up to 600 Ibs (272kg)

• Hall Effect Contact : SPDT rated 1A at 24 VDC

• Anti-Rust Surface Treatment : Blue Zinc Plating

• Operation Temperature : 0~55 °C (32~131 °F)

• Operating Humidity : 0~95% (non condensing)

• Weight : 1.90kg (±1%)

• Dimensions : Magnet - (L)250x(W)42x(T)25mm  Armature -(L)180x(W)38x(T)11mm

Technical Details:
