Kioxia EXCERIA M.2 1000 GB PCI Express NVMemLRC10Z001TG8
CHOICECYCLE
Kioxia EXCERIA M.2 1000 GB PCI Express NVMemLRC10Z001TG8
$196.50
Availability: In Stock
Condition: New
Add to Wishlist
Shipping:
Quantity:
10 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
Sold by Visit Store
CHOICECYCLE
Address:
1 Rochor Canal Road, #02-81 Sim Lim Square 188504
Singapore.
9853 4404
8198 5572
enquiry@choicecycle.com.sg
Add to Cart

Frequently bought together:

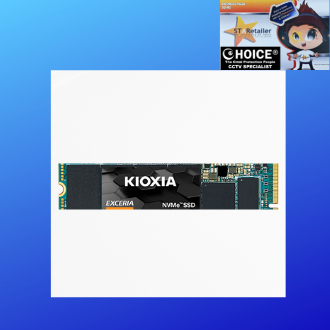

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8

Upgrading from a hard drive or SATA SSD should be easy and affordable and that's where EXCERIA SSDs come in. KIOXIA EXCERIA SSD Series is built to boost your mobile or PC experience and deliver balanced performance and value that will transform your system. Leveraging BiCS FLASH 3D flash memory, this new mainstream-class SSD series offers up to 1TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

Application Peformance Maximized
KIOXIA EXCERIA SSD series redefine mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications.

Small and Compact for an Easy Upgrade
Featuring a slim and light M.2 2280 form factor, the EXCERIA SSD series plugs directly into thin notebooks' motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

NVMe Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe 1.3c technology, EXCERIA SSDs reduce latency in your system's I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

Physical

  • Capacity
    1,000GB
  • Form Factor
    M.2 Type 2280-S2-M
  • Interface
    PCI Express® Base Specification Revision 3.1a (PCIe®)
  • Flash Memory Type
    BiCS FLASH™ TLC
  • Interface Maximum Speed
    32 GT/s (PCIe® Gen3x4L)
  • Dimension (Max: LxWxH)
    80.15 x 22.15 x 2.23 mm
  • Interface Command
    NVM Express™ Revision 1.3c command set
  • Weight
    1000GB: 6.9 g (typ.)

Performance

  • Max Sequential Read Speed(1)
    1,700 MB/s
  • Max Sequential Write Speed(1)
    1,000GB: 1,600 MB/s
  • Max Random Read Speed(2)
    1,000GB: 350,000 IOPS
  • Max Random Write Speed(2)
    1,000GB: 400,000 IOPS
  • Endurance: TBW (Total Bytes Written)(3)
    1,000GB: 400 TB
  • MTTF
    1.5 million hours

Environmental

  • Operating Temperature
    0 °C (Ta) to 85 °C (Tc)
  • Storage Temperature
    -40 °C to 85 °C
  • Shock Resistance
    9.806 km/s2 {1,000 G} 0.5 ms half sine wave
  • Vibration
    196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
  • Supply Voltage
    3.3 V ±5 %
  • Power Consumption
    PS3: 50mW (typ.)
    PS4: 5 mW (typ.)
  • Power Consumption (Active)
    1,000GB: 5.3 W (typ.)

Compatibility

  • PCI Express
    Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
  • Connector Type
    M.2 M key Socket
  • Target Applications
    Client desktops and laptops

Additional Features

  • Services and Support
    5-year manufacturer's warranty(4)
  • Performance Optimization
    TRIM, Idle Time Garbage Collection

Ordering Information

  • 1,000GB
    PN: LRC10Z001TG8
    EAN: 4582563851924

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8


Technical Details:

Seller SKU: CC81LRC10Z001TG8
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Apr 24, 2022

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8

Upgrading from a hard drive or SATA SSD should be easy and affordable and that's where EXCERIA SSDs come in. KIOXIA EXCERIA SSD Series is built to boost your mobile or PC experience and deliver balanced performance and value that will transform your system. Leveraging BiCS FLASH 3D flash memory, this new mainstream-class SSD series offers up to 1TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

Application Peformance Maximized
KIOXIA EXCERIA SSD series redefine mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications.

Small and Compact for an Easy Upgrade
Featuring a slim and light M.2 2280 form factor, the EXCERIA SSD series plugs directly into thin notebooks' motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

NVMe Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe 1.3c technology, EXCERIA SSDs reduce latency in your system's I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.

Physical

  • Capacity
    1,000GB
  • Form Factor
    M.2 Type 2280-S2-M
  • Interface
    PCI Express® Base Specification Revision 3.1a (PCIe®)
  • Flash Memory Type
    BiCS FLASH™ TLC
  • Interface Maximum Speed
    32 GT/s (PCIe® Gen3x4L)
  • Dimension (Max: LxWxH)
    80.15 x 22.15 x 2.23 mm
  • Interface Command
    NVM Express™ Revision 1.3c command set
  • Weight
    1000GB: 6.9 g (typ.)

Performance

  • Max Sequential Read Speed(1)
    1,700 MB/s
  • Max Sequential Write Speed(1)
    1,000GB: 1,600 MB/s
  • Max Random Read Speed(2)
    1,000GB: 350,000 IOPS
  • Max Random Write Speed(2)
    1,000GB: 400,000 IOPS
  • Endurance: TBW (Total Bytes Written)(3)
    1,000GB: 400 TB
  • MTTF
    1.5 million hours

Environmental

  • Operating Temperature
    0 °C (Ta) to 85 °C (Tc)
  • Storage Temperature
    -40 °C to 85 °C
  • Shock Resistance
    9.806 km/s2 {1,000 G} 0.5 ms half sine wave
  • Vibration
    196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
  • Supply Voltage
    3.3 V ±5 %
  • Power Consumption
    PS3: 50mW (typ.)
    PS4: 5 mW (typ.)
  • Power Consumption (Active)
    1,000GB: 5.3 W (typ.)

Compatibility

  • PCI Express
    Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
  • Connector Type
    M.2 M key Socket
  • Target Applications
    Client desktops and laptops

Additional Features

  • Services and Support
    5-year manufacturer's warranty(4)
  • Performance Optimization
    TRIM, Idle Time Garbage Collection

Ordering Information

  • 1,000GB
    PN: LRC10Z001TG8
    EAN: 4582563851924

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Kioxia EXCERIA M.2 1000 GB PCI Express 3.1a TLC NVMe LRC10Z001TG8
