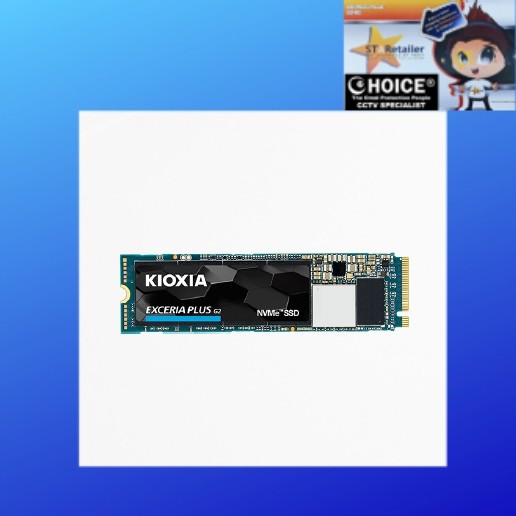

Kioxia EXCERIA PLUS M.2 500GB PCI Express 3.1a TLC NVMe LRD10Z500TG8

1. Collection from SGCCTV Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 90254466 for stock level before visit.

2. Payment by PayNow 201207820G (Please print screen and whatsapp to 90254466) & Paylah QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)

3. Please add $18.00 for delivery - 3~5 days, no further discount as Price guarantee lowest.
4. Can issue e-Invoice for your accounting. (upon request)

Your high-performance gaming system needs high-performance storage. The KIOXIA EXCERIA PLUS G2 SSD series is built to deliver enthusiast-class PCIe® performance thanks to an 8-channel controller that brings out the full potential of its BiCS FLASH™ 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile PCs.

Game-Changing Storage

Don’t let your storage be outclassed. The KIOXIA EXCERIA PLUS G2 SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With up to 3,400 MB/s sequential read speed(1) and 3,200 MB/s sequential write speed available to you, your system won’t be deprived of the storage bandwidth it needs to excel.

Game On!

Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, the EXCERIA PLUS G2 SSD series reduces latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Small and Mighty

Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.

Cutting Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring, SSD tuning and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Physical

• Capacity
  500GB
• Form Factor
  M.2 Type 2280-D3-M
• Interface
  PCI Express® Base Specification Revision 3.1a (PCIe®)
• Flash Memory Type
  BiCS FLASH™ TLC
• Interface Maximum Speed
  32 GT/s (PCIe® Gen3x4L)
• Dimension (Max: LxWxH)
  80.15 x 22.15 x 3.73 mm
• Interface Command
  NVM Express™ Revision 1.3c command set
• Weight
  10.0 g (typ.)

Performance

• Max Sequential Read Speed(1)
  3,400 MB/s
• Max Sequential Write Speed(1)
  3,200 MB/s
• Max Random Read Speed(2)
  500GB: 650,000 IOPS

• Max Random Write Speed(2)
  500GB: 600,000 IOPS


• Endurance: TBW (Total Bytes Written)(3)
  500GB: 200 TB

• MTTF
  1.5 million hours

Environmental

• Operating Temperature
  0 °C (Ta) to 85 °C (Tc)
• Storage Temperature
  -40 °C to 85 °C
• Shock Resistance
  9.806 km/s2 {1,000 G} 0.5 ms half sine wave
• Vibration
  196 m/s2 {20 G} Peak, 10~2000 Hz, (20 min / Axis) x 3 Axis
• Supply Voltage
  3.3 V ±5 %
• Power Consumption
  PS3: 50 mW (typ.)
  PS4: 5 mW (typ.)
• Power Consumption (Active)
  500GB: 6.7 W (typ.)


Compatibility

• PCI Express
  Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
• Connector Type
  M.2 M key Socket
• Target Applications
  Client desktops and laptops

Additional Features

• Services and Support
  5-year manufacturer's warranty(4)
• Performance Optimization
  TRIM, Idle Time Garbage Collection

Ordering Information

• 500GB
  PN: LRD20Z500GG8
  EAN: 4582563852419

Kioxia EXCERIA PLUS M.2 500GB PCI Express 3.1a TLC NVMe LRD10Z500TG8
