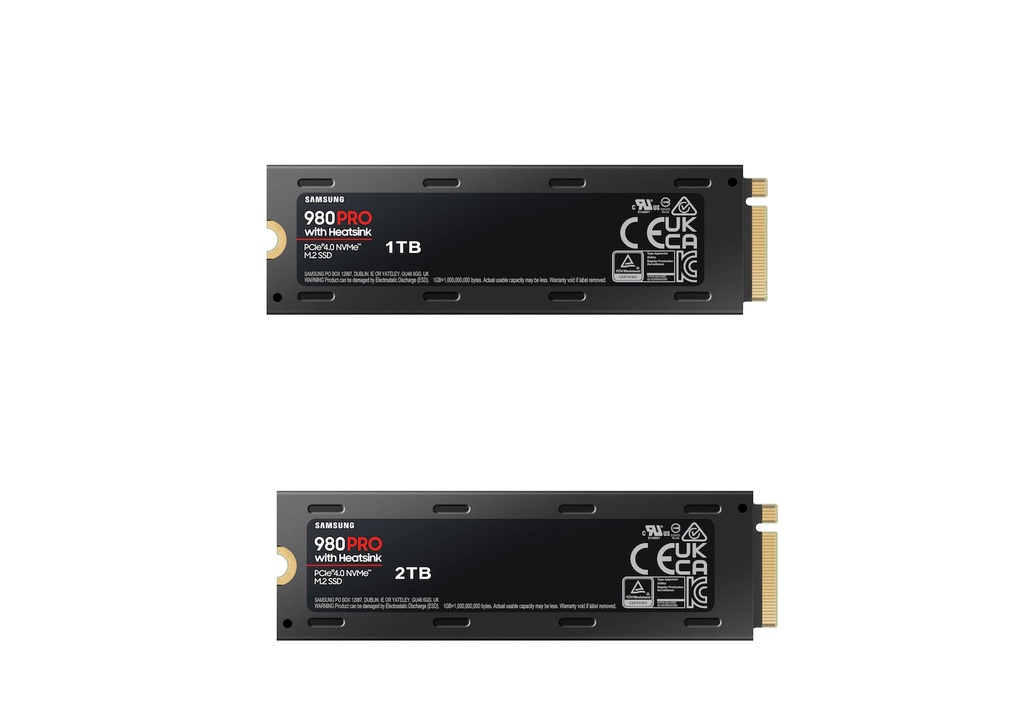

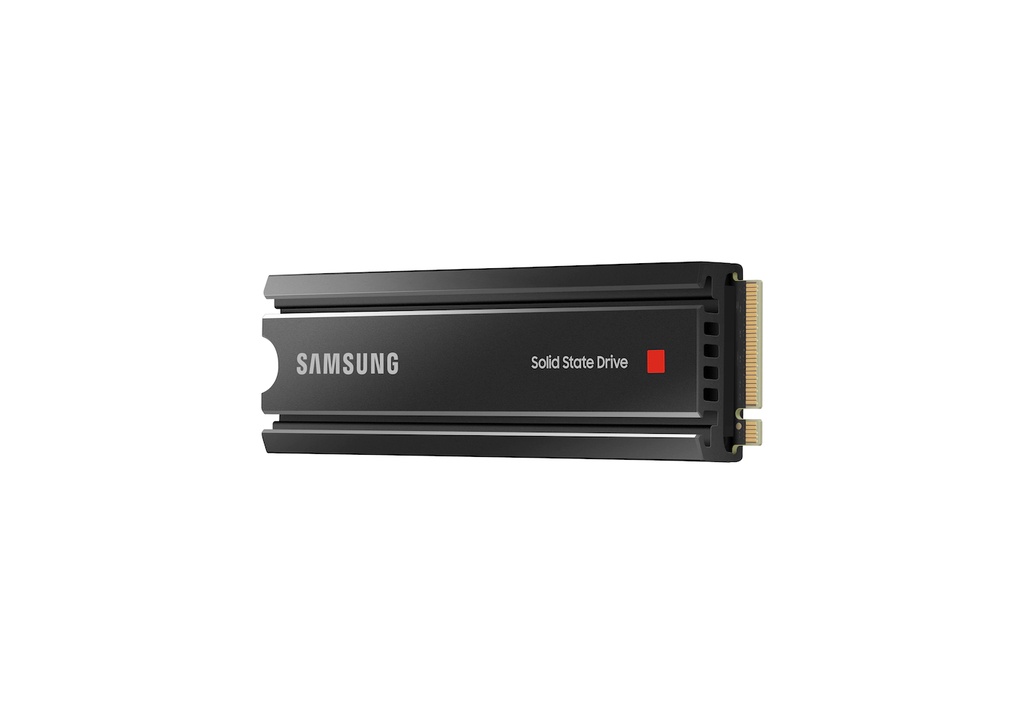

Samsung 980 PRO 2TB NVME M.2 Gen4 SSD with Heatsink
$729
Availability: In Stock
Condition: New
Shipping:
Quantity:
1 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
Fuwell
Address:
1 Rochor Canal Rd, Sim Lim Square, #04-62/63 188504
Singapore.
63393901
WA 98168725
sales@fuwell.com.sg
Add to Cart

General Feature

Product Type

NVMe™ SSD


Family Line

980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD


Capacity

1TB


Interface

PCIe® 4.0


Compatibility

PC & Playstation® 5






Performance

Encryption

AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)


Type

Interface

PCIe Gen 4.0 x4, NVMe 1.3c


Read/Write Speeds


7,000/5,000MB/s


Usage Application

Client PCs, Game Consoles


Storage

Capacity

1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


Key Features

Sequential Read Speed

Up to 7,000 MB/s * Performance may vary based on system hardware & configuration


Sequential Write Speed

Up to 5,000 MB/s * Performance may vary based on system hardware & configuration


Compatibility


980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.


Cache Memory


Samsung 1GB Low Power DDR4 SDRAM


Trim Support

Supported


S.M.A.R.T. Support

Supported


GC (Garbage Collection)

Auto Garbage Collection Algorithm


WWN Support


Not supported


Device Sleep Mode Support

Yes


Thermal protection


Heatsink


General

Average Power Consumption (system level)

*Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration


Power consumption (Idle)

Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration


Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)


Environmental Specs

Shock

1,500 G & 0.5 ms (Half sine)


Form Factor

Product

M.2 (2280) with Heatsink complying PCI-SIG® D8 standard


Dimensions (W x H x D)

Product

24 x 80 x 8.6 mm (with heatsink)


Weight

Product

Max 30.5g


Warranty

Product

* Limited warranty up to 5 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support


Technical Details:

Seller SKU: Samsung 980 PRO NVME M.2 Gen4 SSD with Heatsink(2tb)
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Aug 4, 2022

General Feature

Product Type

NVMe™ SSD


Family Line

980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD


Capacity

1TB


Interface

PCIe® 4.0


Compatibility

PC & Playstation® 5






Performance

Encryption

AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)


Type

Interface

PCIe Gen 4.0 x4, NVMe 1.3c


Read/Write Speeds


7,000/5,000MB/s


Usage Application

Client PCs, Game Consoles


Storage

Capacity

1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


Key Features

Sequential Read Speed

Up to 7,000 MB/s * Performance may vary based on system hardware & configuration


Sequential Write Speed

Up to 5,000 MB/s * Performance may vary based on system hardware & configuration


Compatibility


980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.


Cache Memory


Samsung 1GB Low Power DDR4 SDRAM


Trim Support

Supported


S.M.A.R.T. Support

Supported


GC (Garbage Collection)

Auto Garbage Collection Algorithm


WWN Support


Not supported


Device Sleep Mode Support

Yes


Thermal protection


Heatsink


General

Average Power Consumption (system level)

*Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration


Power consumption (Idle)

Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration


Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)


Environmental Specs

Shock

1,500 G & 0.5 ms (Half sine)


Form Factor

Product

M.2 (2280) with Heatsink complying PCI-SIG® D8 standard


Dimensions (W x H x D)

Product

24 x 80 x 8.6 mm (with heatsink)


Weight

Product

Max 30.5g


Warranty

Product

* Limited warranty up to 5 years or up to the TBW for each capacity ***For more information on the warranty, please visit www.samsung.com/support
