• Akko CS Switch Series - Akko Custom Series (CS) switches are 3-pin custom switches made for DIY enthusiasts to obtain satisfying typing feelings with more affordable options.

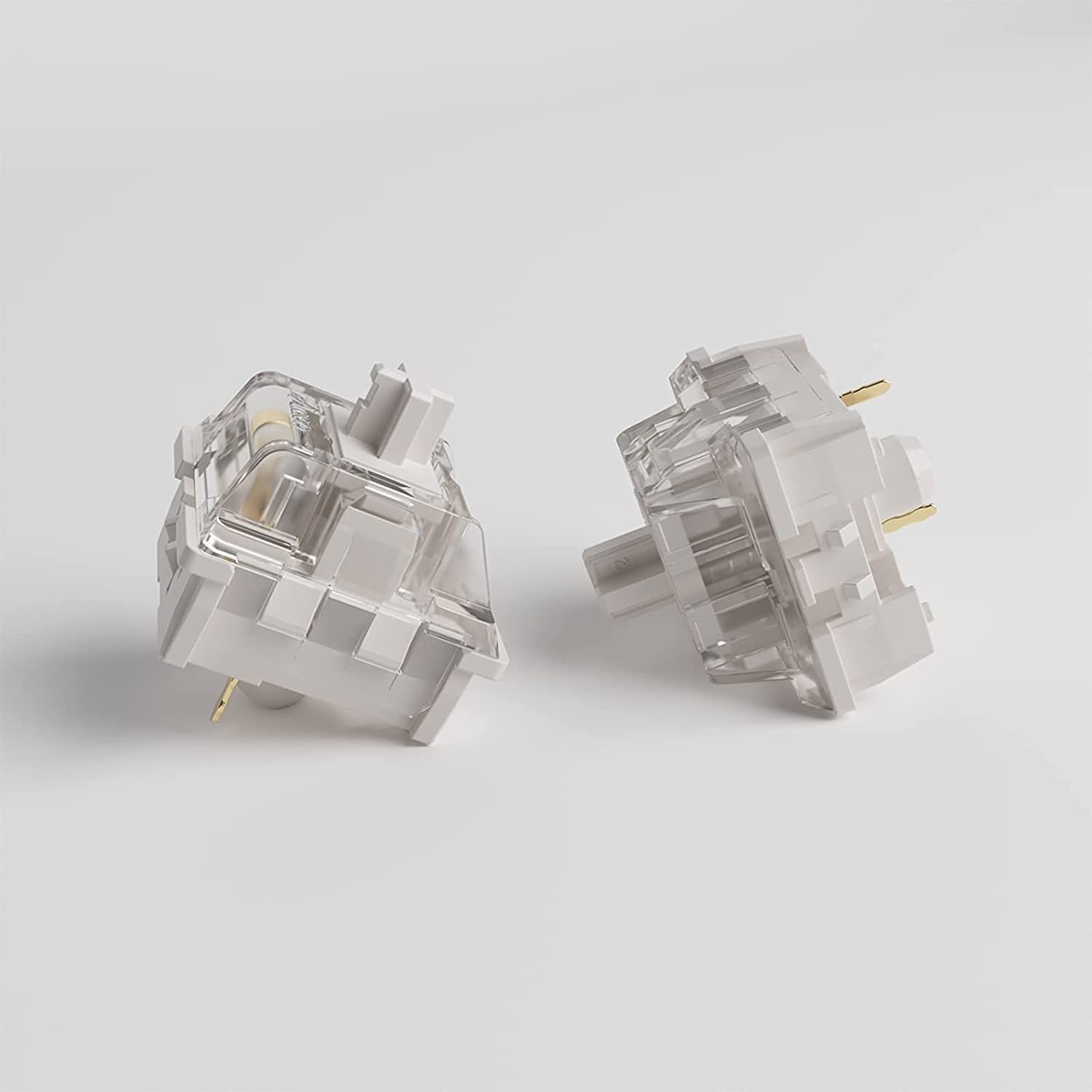

• Vintage White 35gf Linear Switch - Vintage white comes with an extremely light actuation force of 35g with 22mm extension spring. Despite the quick actuation, it comes with a decent level of feedback and is suitable for long hours of typing.
• Built-in LED Slot – Akko CS switches are equipped with LED slot ready for LED Mod/Assembly, and are SMD compatible (LED underneath the switch).
• Durability - Approximate lifespan of 60 million times of keystrokes based on laboratory durability test.
• Compatibility – Akko CS switches come with MX style structure so they would fit most keycap sets with (X) cross stem. Note: switch opener is not included.

  ---

  Product Description



  The Matcha Green, Rose Red and Ocean Blue switches use progressive springs yet the Lavender Purple, Radiant Red and Vintage White switches use classic extension springs. The purpose of releasing the Custom Switch (CS) series is to offer more options to keyboard enthusiasts as every tiny bit of change would create distinct typing experiences.

  Force Diagram



  	Matcha Green	Ocean Blue	Rose Red	Vintage White	Radiant Red	Lavender Purple
  Type	Linear	Tactile	Linear	Linear	Linear	Tactile
  Spring	Progressive Spring	Progressive Spring	Progressive Spring	22 mm Extension Spring	18 mm Extension Spring	18 mm Extension Spring
  Operating Force	50gf±5gf	36gf±5gf	43gf±5gf	35gf±5gf	53gf±5gf	36gf±5gf
  Tactile Force	/	45gf±5gf	/	/	/	50gf±5gf
  Bottom Out Force	63gf±5gf	/	55gf±5gf	45gf±5gf	62gf±5gf	/
  Total Travel	4.0-0.5mm	4.0-0.5mm	3.5±0.3mm	4.0-0.5mm	3.5±0.3mm	4.0-0.5mm
  Pre Travel	1.9±0.3mm	1.9±0.3mm	1.9±0.3mm	1.9±0.3mm	1.9±0.3mm	1.9±0.3mm
  Tactile Position	/	0.5±0.3mm	/	/	/	0.5±0.3mm
  Durability	60 million	60 million	60 million	60 million	60 million	60 million

  Spring Comparison

  Progressive Spring Matcha Green Ocean Blue Rose Red	18 mm Extension Spring Radiant Red Lavender Purple	22 mm Extension Spring Vintage White
