Output
Max Configurable Power (Watts)
550 Watts / 1.1kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
4 ms typical : 6 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
150 - 280 V
Number of Power Cords
1
Type of Input Protection Required
3-pole circuit breaker
Input Power Factor at Full Load
0.5
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
6hour(s)
Replacement Battery
RBC17
Expected Battery Life (years)
2 - 4
Battery Charge Power (Watts)
16 Watts
Communications & Management
Control panel
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Physical
Maximum Height
215MM, 21.5CM
Maximum Width
130MM, 13.0CM
Maximum Depth
336MM, 33.6CM
Net Weight
9.2KG
Shipping weight
10.6KG
Shipping Height
295MM, 29.5CM
Shipping Width
245MM, 24.5CM
Shipping Depth
440MM, 44.0CM
Color
Black
SCC Codes
10731304315169
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 40 °C
Storage Elevation
0 - 9144meters
Audible noise at 1 meter from surface of unit
45.0dBA
Brand: | APC |
---|---|

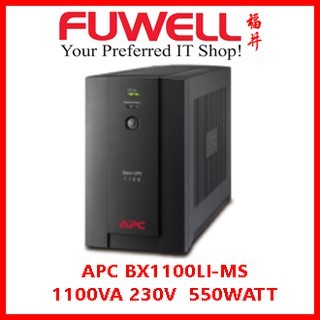

Model number: | BX1100LI-MS |
Seller SKU: | BX1100LI-MS |
Origin: | Singapore |
Minimum order quantity: | 1 |
Shipping weight: | 9200.00 g |
Date first listed on Sim Lim Square: | Dec 17, 2021 |
Output
Max Configurable Power (Watts)
550 Watts / 1.1kVA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
4 ms typical : 6 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
150 - 280 V
Number of Power Cords
1
Type of Input Protection Required
3-pole circuit breaker
Input Power Factor at Full Load
0.5
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
6hour(s)
Replacement Battery
RBC17
Expected Battery Life (years)
2 - 4
Battery Charge Power (Watts)
16 Watts
Communications & Management
Control panel
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
273Joules
Physical
Maximum Height
215MM, 21.5CM
Maximum Width
130MM, 13.0CM
Maximum Depth
336MM, 33.6CM
Net Weight
9.2KG
Shipping weight
10.6KG
Shipping Height
295MM, 29.5CM
Shipping Width
245MM, 24.5CM
Shipping Depth
440MM, 44.0CM
Color
Black
SCC Codes
10731304315169
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-15 - 40 °C
Storage Elevation
0 - 9144meters
Audible noise at 1 meter from surface of unit
45.0dBA
No reviews
