Model Name

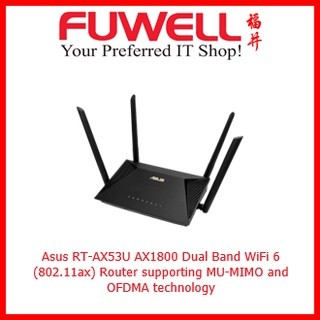

RT-AX53U

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AX technology

Yes

Antenna

Ex-antennas*4

Transmit/Receive

2.4GHz 2x2

5GHz 2x2

Processor

Dual-core (4 VPE)

Memory

128 MB Flash

256 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1

2.4G x 1

5G x 1

LAN x 3

WAN x 1

USBX1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 1.5A current

Package content

RT-AX53U

RJ45 x1

Adapter x1

QSG x1

Warranty Card x1

Product Weight (g)

346g

AiMesh

AiMesh : No

Primary AiMesh router : No

AiMesh node : No

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No

Alexa

Support Alexa skil : Yes

IFTTT

Support IFTTT : No

AiProtection

AiProtection : AiProtection Classic

Malicious site blocking : Yes

Two-Way IPS : No

Infected Device Prevention and Blocking ; Yes

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : No

Bandwidth limiter : Yes

Traditional QoS : Yes

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Website history : No

Wireless

IPv6 : Yes

MU-MIMO : Yes

Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal

UTF-8 SSID : Yes

Guest Network : Yes

WPS : Yes

Wi-Fi MAC address filter : Yes

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : Yes

Explicit beamforming : Yes

IGMP snooping : Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : Yes

WAN Aggregation : No

3G/4G LTE dongle : Yes

Port triggering : Yes

DMZ : Yes

DDNS : Yes

Let's Encrypt : Yes

LAN

DHCP Server : Yes

IPTV : Yes

LAN Link Aggregation : No

Manually assign IP address : Yes

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : Yes

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : No

USB application

3G/4G LTE dongle : Yes

HDD hibernation : Yes

Safely Remove disk : Yes

AiCloud : No

Download master : Yes

AiDisk : Yes

Media Server : Yes

Time Machine : No

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes

Administration

Operating mode : Access Point, Media Bridge, Repeater, Router

Operating system : ASUSWRT

Free OS upgrade : Yes

Firewall : Yes

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes
