MODEL NUMBER MCB-B511D-KGNN-RGA

AVAILABLE COLOR(S) BLACK

MATERIALS STEEL, PLASTIC, TEMPERED GLASS

DIMENSIONS (L X W X H) 496 X 217 X 469 MM

WEIGHT 6.59 KG

MOTHERBOARD SUPPORT MINI ITX, MICRO ATX, ATX, SSI CEB, E-ATX*, (*SUPPORT FOR UP TO 12" X 10.7", WILL LIMIT CABLE MANAGEMENT FEATURES)

EXPANSION SLOTS 7

5.25" DRIVE BAYS N/A

2.5" / 3.5" DRIVE BAYS (COMBO) 2 (MAX.2)

2.5" DRIVE BAYS 5 (MAX.6)

I/O PANEL 2 X USB 3.2 GEN 1 (USB 3.0), 1X 3.5MM AUDIO JACK, 1X 3.5MM MIC JACK, 1X ARGB/PWM HUB (MAY DEPEND ON REGION AND MODEL)

PRE-INSTALLED FANS - FRONT 3X 120MM 650~1800RPM SICKLEFLOW PWM ARGB

FAN SUPPORT - TOP 3X 120MM, 2X 140MM

FAN SUPPORT - FRONT 3X 120MM, 2X 140MM

FAN SUPPORT - REAR 1X 120MM

RADIATOR SUPPORT - TOP 120MM, 240MM, 360MM, (44MM MAX MOTHERBOARD COMPONENT HEIGHT)

RADIATOR SUPPORT - FRONT 120MM, 140MM, 240MM, 280MM, 360MM, (75MM CLEARANCE)

RADIATOR SUPPORT - REAR 120MM

CLEARANCE - CPU COOLER 165MM/6.49"

CLEARANCE - PSU 180MM/7.08"

CLEARANCE - GFX 410MM/16.1"

DUST FILTERS FRONT, TOP, BOTTOM

POWER SUPPLY SUPPORT BOTTOM MOUNT, ATX

WARRANTY 2 YEARS

EAN CODE 4719512095102

UPC CODE 884102047299

SERIES MASTERBOX SERIES

SIZE MID TOWER

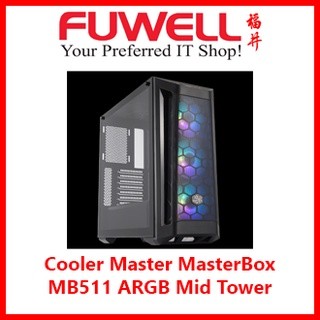

Specifications of Cooler Master MasterBox MB511 ARGB Mid Tower CaseCase

Brandcooler masterSKU2260518865_SGAMZ-13024376621
