Frequently bought together:
MODEL
MPZ-8501-AFBAPV
PFC
Active PFC
ATX VERSION
ATX 12V
INPUT VOLTAGE
100-240Vac
INPUT CURRENT
12-6A
INPUT FREQUENCY
50-60Hz
DIMENSIONS (L X W X H)
201.2 x 150 x 86 mm
FAN SIZE
135mm
FAN BEARING
TBB
EFFICIENCY
92% Typical Load
80 PLUS RATING
80 PLUS Platinum
ERP 2014 LOT 3
Yes
OPERATING TEMPERATURE
0-50°C
MTBF
>100,000 Hours
PROTECTIONS
OVP, OPP, SCP, OCP, UVP, OTP
REGULATORY
cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC
ATX 24-PIN CONNECTORS
1
EPS 4+4 PIN CONNECTORS
1
EPS 8 PIN CONNECTOR
1
SATA CONNECTORS
12
PERIPHERAL 4-PIN CONNECTORS
4
FDD CABLE 4-PIN CONNECTORS
1
PCI-E 6+2 PIN CONNECTORS
6
WATTAGE
Above 750W
MODULAR
Full Modular
80 PLUS
Platinum
SERIES
V Platinum Series
Technical Details:

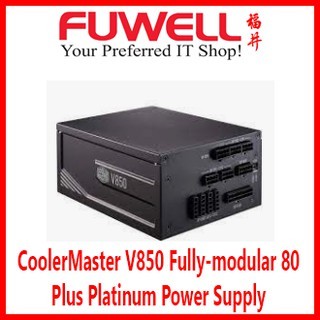

| Seller SKU: | V850 Fully-modular 80 Plus Platinum |
|---|---|
| Origin: | Singapore |
| Minimum order quantity: | 1 |
| Date first listed on Sim Lim Square: | Jul 13, 2022 |
MODEL
MPZ-8501-AFBAPV
PFC
Active PFC
ATX VERSION
ATX 12V
INPUT VOLTAGE
100-240Vac
INPUT CURRENT
12-6A
INPUT FREQUENCY
50-60Hz
DIMENSIONS (L X W X H)
201.2 x 150 x 86 mm
FAN SIZE
135mm
FAN BEARING
TBB
EFFICIENCY
92% Typical Load
80 PLUS RATING
80 PLUS Platinum
ERP 2014 LOT 3
Yes
OPERATING TEMPERATURE
0-50°C
MTBF
>100,000 Hours
PROTECTIONS
OVP, OPP, SCP, OCP, UVP, OTP
REGULATORY
cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC
ATX 24-PIN CONNECTORS
1
EPS 4+4 PIN CONNECTORS
1
EPS 8 PIN CONNECTOR
1
SATA CONNECTORS
12
PERIPHERAL 4-PIN CONNECTORS
4
FDD CABLE 4-PIN CONNECTORS
1
PCI-E 6+2 PIN CONNECTORS
6
WATTAGE
Above 750W
MODULAR
Full Modular
80 PLUS
Platinum
SERIES
V Platinum Series
No reviews
