Fuwell

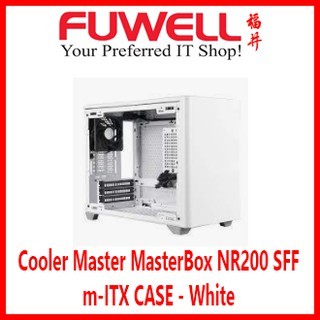

COOLERMASTER MASTERBOX NR200 SFF m-ITX CASE [White]
$119
Availability: In Stock
Condition: New
Shipping:
Quantity:
1 in stock
Total:
Will be calculated after you select all properties
Buy Now Enquiry
Fuwell
Address:
1 Rochor Canal Rd, Sim Lim Square, #04-62/63 188504
Singapore.
63393901
WA 98168725
sales@fuwell.com.sg
Add to Cart

MODEL NUMBER

MCB-NR200-KNNN-S00, MCB-NR200-WNNN-S00

SERIES

MasterBox Series

SIZE

Mini ITX

AVAILABLE COLOR(S)

Black, White

MATERIALS

Steel, Plastic, Mesh

DIMENSIONS (L X W X H)

376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions

VOLUME (EXLC. PROTRUSIONS)

18.25L

MOTHERBOARD SUPPORT

Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)

EXPANSION SLOTS

3

5.25" DRIVE BAYS

0

3.5" DRIVE BAYS

1 (Max. 2)

2.5" / 3.5" DRIVE BAYS (COMBO)

1

2.5" DRIVE BAYS

2 (Max. 3)

I/O PANEL

2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS - TOP

1x 120mm 650-1800RPM PWM (SickleFlow)

PRE-INSTALLED FANS - FRONT

N/A

PRE-INSTALLED FANS - REAR

1x 92mm 650-2300RPM PWM (SickleFlow)

PRE-INSTALLED FANS - BOTTOM

N/A

FAN SUPPORT - TOP

2x 120mm

FAN SUPPORT - REAR

1x 92mm

FAN SUPPORT - BOTTOM

2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

FAN SUPPORT - SIDE

2x 120/140mm

RADIATOR SUPPORT - TOP

N/A

RADIATOR SUPPORT - REAR

92mm (not compatible with vertical GPU installation)

RADIATOR SUPPORT - BOTTOM

120mm, 240mm, (recommended for custom loops only)

RADIATOR SUPPORT - SIDE

120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)

CLEARANCE - CPU COOLER

155mm, 76mm (GPU in vertical position)

CLEARANCE - PSU

130mm

CLEARANCE - GFX

L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

DUST FILTERS

Top, Bottom, Left side, Right side

POWER SUPPLY SUPPORT

SFX, SFX-L

WEIGHT

4.8 kg

NOTE

Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position


Technical Details:

Seller SKU: COOLERMASTER MASTERBOX NR200 SFF m-ITX CASE [White]
Origin: Singapore
Minimum order quantity: 1
Date first listed on Sim Lim Square: Aug 5, 2022

MODEL NUMBER

MCB-NR200-KNNN-S00, MCB-NR200-WNNN-S00

SERIES

MasterBox Series

SIZE

Mini ITX

AVAILABLE COLOR(S)

Black, White

MATERIALS

Steel, Plastic, Mesh

DIMENSIONS (L X W X H)

376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions

VOLUME (EXLC. PROTRUSIONS)

18.25L

MOTHERBOARD SUPPORT

Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)

EXPANSION SLOTS

3

5.25" DRIVE BAYS

0

3.5" DRIVE BAYS

1 (Max. 2)

2.5" / 3.5" DRIVE BAYS (COMBO)

1

2.5" DRIVE BAYS

2 (Max. 3)

I/O PANEL

2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS - TOP

1x 120mm 650-1800RPM PWM (SickleFlow)

PRE-INSTALLED FANS - FRONT

N/A

PRE-INSTALLED FANS - REAR

1x 92mm 650-2300RPM PWM (SickleFlow)

PRE-INSTALLED FANS - BOTTOM

N/A

FAN SUPPORT - TOP

2x 120mm

FAN SUPPORT - REAR

1x 92mm

FAN SUPPORT - BOTTOM

2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

FAN SUPPORT - SIDE

2x 120/140mm

RADIATOR SUPPORT - TOP

N/A

RADIATOR SUPPORT - REAR

92mm (not compatible with vertical GPU installation)

RADIATOR SUPPORT - BOTTOM

120mm, 240mm, (recommended for custom loops only)

RADIATOR SUPPORT - SIDE

120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)

CLEARANCE - CPU COOLER

155mm, 76mm (GPU in vertical position)

CLEARANCE - PSU

130mm

CLEARANCE - GFX

L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

DUST FILTERS

Top, Bottom, Left side, Right side

POWER SUPPLY SUPPORT

SFX, SFX-L

WEIGHT

4.8 kg

NOTE

Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
