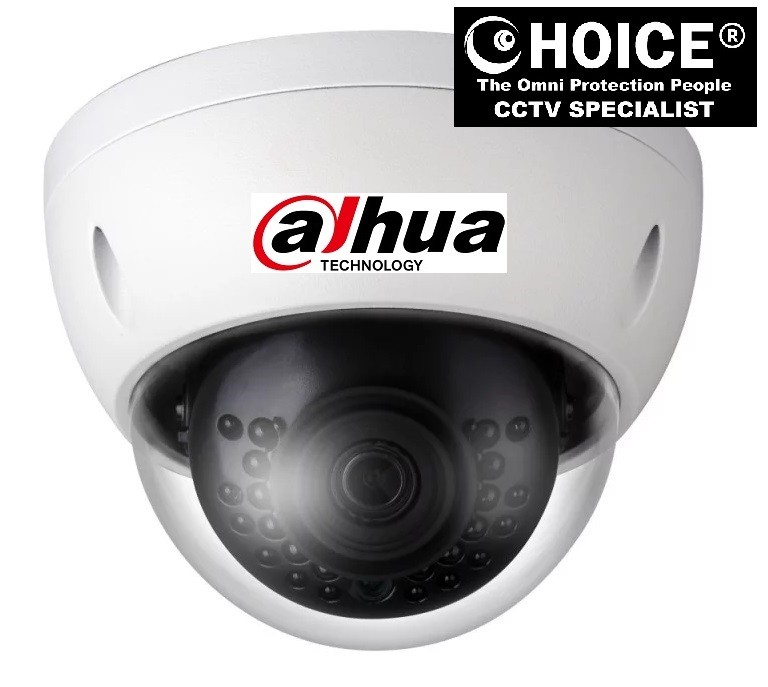

DAHUA IP POE Camera 2MP DH-ED125-E DH-SF125-E CCTV CAMERA Home Office Warehouse Factory Security Camera Hospital Train Bus Shopping Mall

$55.00 minimum 5pcs or $65.00  each.

·1/2.7” 2Megapixel progressive CMOS

·H.265& H.264 dual-stream encoding

·25/30fps@1080P(1920×1080)

·DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

·Multiple network monitoring: Web viewer, CMS(DSS/PSS)& DMSS

·2.8 mm fixed lens (3.6mm optional)

·Max IR LEDs Length 30m ·IP67, PoE

1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 98534404 for stock level before visit.

2. Payment by PayNow 201207820G or QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery – 3~5 days.
4. Can issue e-Invoice for your accounting. (upon request)

More Choices : Hikvision Cat6 || POE Switch ||  Server Rack || Dahua Cat6 Lan Cable  ||  Coaxial Power Cable RG59+2C

DAHUA IP POE Camera 2MP DH-ED125-E DH-SF125-E CCTV CAMERA Home Office Warehouse Factory Security Camera Hospital Train Bus Shopping Mall

System Overview The IR Megapixel Fixed camera delivers 2MP resolution with a motorized 2.8mm/3.6mm fixed lens.

The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Functions Smart Codec (H.265+ & H.264+) Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression. Intelligent Video Analysis (IVS) Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency.

In addition, the camera supports intelligent tamper detection, which isto generate warning message via detecting dramatic scene change and to guarantee effective video surveillance. Smart IR Technology With IR illumination, detailed images can be captured in low light or total darkness.

The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera.

The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft). ·1/2.7” 2Megapixel progressive CMOS ·H.265& H.264 dual-stream encoding ·25/30fps@1080P(1920×1080) ·DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC ·Multiple network monitoring: Web viewer, CMS(DSS/PSS)& DMSS ·2.8 mm fixed lens (3.6mmoptional) ·Max IR LEDs Length 30m ·IP67, PoE Protection (IP67, wide voltage)

The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments. Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from-30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image Flip Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization. Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

DAHUA IP POE Camera 2MP DH-ED125-E DH-SF125-E CCTV CAMERA Home Office Warehouse Factory Security Camera Hospital Train Bus Shopping Mall

Technical Specification

Camera Image Sensor 1/2.7” 2 Megapixel progressive CMOS Effective Pixels 1920(H) x1080(V) RAM/ROM 256MB/32MB Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.08 Lux/F2.0 ( Color ) 0.04 Lux/F2.0( Black & White ) 0 Lux/F2.0( Black & White, IR on ) S/N Ratio More than 50dB IR Distance Distance up to 30m(98ft) IR On/Off Control Auto/ Manual IR LEDs 18

Lens Type Fixed Mount Type Board-in Focal Length 2.8 mm (3.6 mm optional) Max. Aperture F2.0/F2.0 Angle of View H:104°/92°,V:55°/50° Focus Control Fixed Close Focus Distance 0.6m(0.9m) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 40(131ft) 16(52ft) 8(26ft) 4(13ft) 3.6 mm 53(174ft) 21(69ft) 11(36ft) 5(16ft) PTZ Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly IVS Tripwire, Intrusion Video Compression H.265/H.264/MJPEG(Sub Stream)

Smart Codec Support H.265+/H.264+ Streaming Capability 2 Streams Resolution 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) Frame Rate Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps
