Specifications

3.5"/2.5" Universal drive mounts

2 included

Dedicated 2.5" drive mounts

2 included, 4 positions total

Expansion slots

7

Front interface (RGB version)

2x USB 3.0, Audio I/O, Power button, RGB controller, USB type-C ready

Front interface (Standard version)

2x USB 3.0, Audio I/O, Power button, Reset button, USB type-C ready

Total fan mounts

9x 120/140 mm

Front fan (RGB version)

3x 120/140 mm (3x Aspect 14 RGB included)

Front fan (Standard version)

3x 120/140 mm (2x Aspect 14 included)

Top fan

3x 120/140 mm

Rear fan (RGB version)

1x 120/140 mm (1x Aspect 14 RGB included)

Rear fan (Standard version)

1x 120/140 mm (1x Aspect 14 included)

Bottom fan

2x 120/140 mm

Dust filters

Top and bottom (mesh front)

Fixed velcro straps

Yes

Cable routing grommets

Yes

Captive thumbscrews

HDD, SSD and PSU brackets

Left side panel

Tempered glass

Right side panel

Steel

Compatibility

Motherboard compatibility

E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX

Power supply type

ATX

PSU max length

250 mm (with HDD cage installed)

GPU max length (RGB version)

450 mm

GPU max length (Standard version)

451 mm (476 mm without front fan)

CPU cooler max height

185 mm

Front radiator

Up to 360/280 mm

Top radiator

Up to 360 mm

Rear radiator

120 mm

Bottom radiator (RGB version)

Up to 240 mm

Bottom radiator (Standard version)

Up to 280 mm

Cable routing space

30 mm

Dimensions

Case dimensions (LxWxH)

542 x 240 x 474 mm

Case dimensions w/o feet/protrusions/screws

541 x 240 x 454 mm

Package dimensions (LxWxH)

540 x 330 x 640 mm

Net weight

9.6 kg

Gross weight

11.2 kg

Volume

59 liters

Other

Warranty

2 Years

Package contents

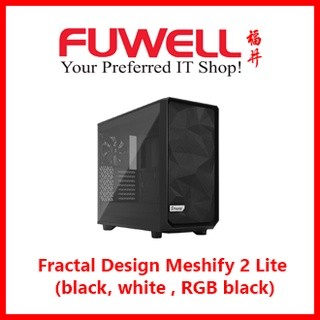

Meshify 2 Lite Case, User manual, Small accessory box

EAN

Black TG Light Tint: 7340172703877, White TG Clear Tint: 7340172703884, RGB Black TG Light Tint: 7340172703891

UPC

Black TG Light Tint: 843276103873, White TG Clear Tint: 843276103880, RGB Black TG Light Tint: 843276103897

JAN

Black TG Light Tint: 4537694296878, White TG Clear Tint: 4537694296885, RGB Black TG Light Tint: 4537694296892

Product code

Black TG Light Tint: FD-C-MEL2A-03, White TG Clear Tint: FD-C-MEL2A-04, RGB Black TG Light Tint: FD-C-MEL2A-05
